ENGLISH 11

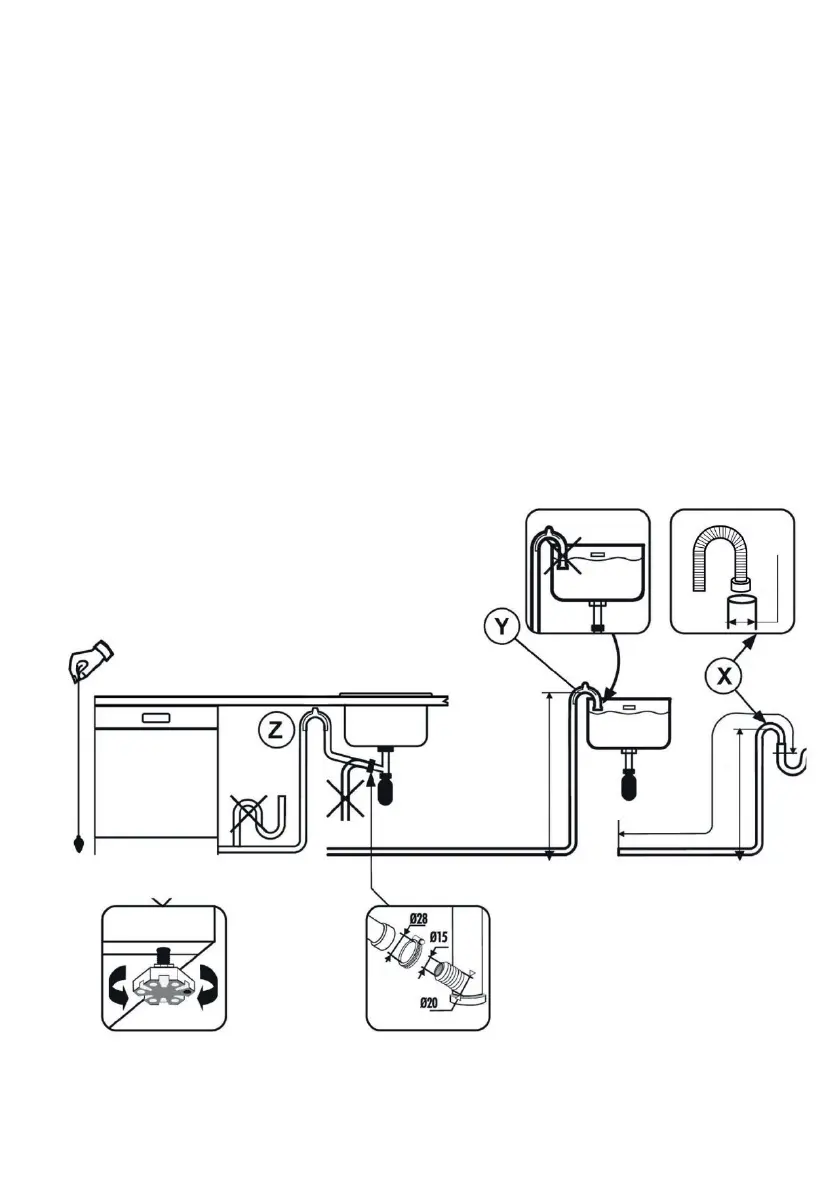

Connecting the outlet hose
• The outlet hose should discharge into a
standpipe, making sure that there are no
kinks (fig.4).
• The standpipe must be at least 40 cm
above floor level and it must have an
internal diameter of at least 4 cm.
• It is advisable to fit an anti-odor air trap
(fig.4X). If necessary the hose can be
extended up to 2,5 m, provided that it is
kept at a maximum height of 85 cm above
floor level. The extension pipe is available
from the After Sales Service Centre.
• The hose can be hooked over the side of
the sink, but it must not be immersed in
water, in order to prevent water from
being syphoned back to the machine when
this is in operation (fig.4Y).
• When installing the appliance under a
worktop the hose pipe clamp must be
attached to the wall in the highest possible
position under the worktop (fig.4Z).
• Check that there are no kinks in the inlet
and outlet hoses.
(fig.4).
max. 100 cm
2,5 m MAX
min 40 cm
max. 85 cm
min. 4 cm
