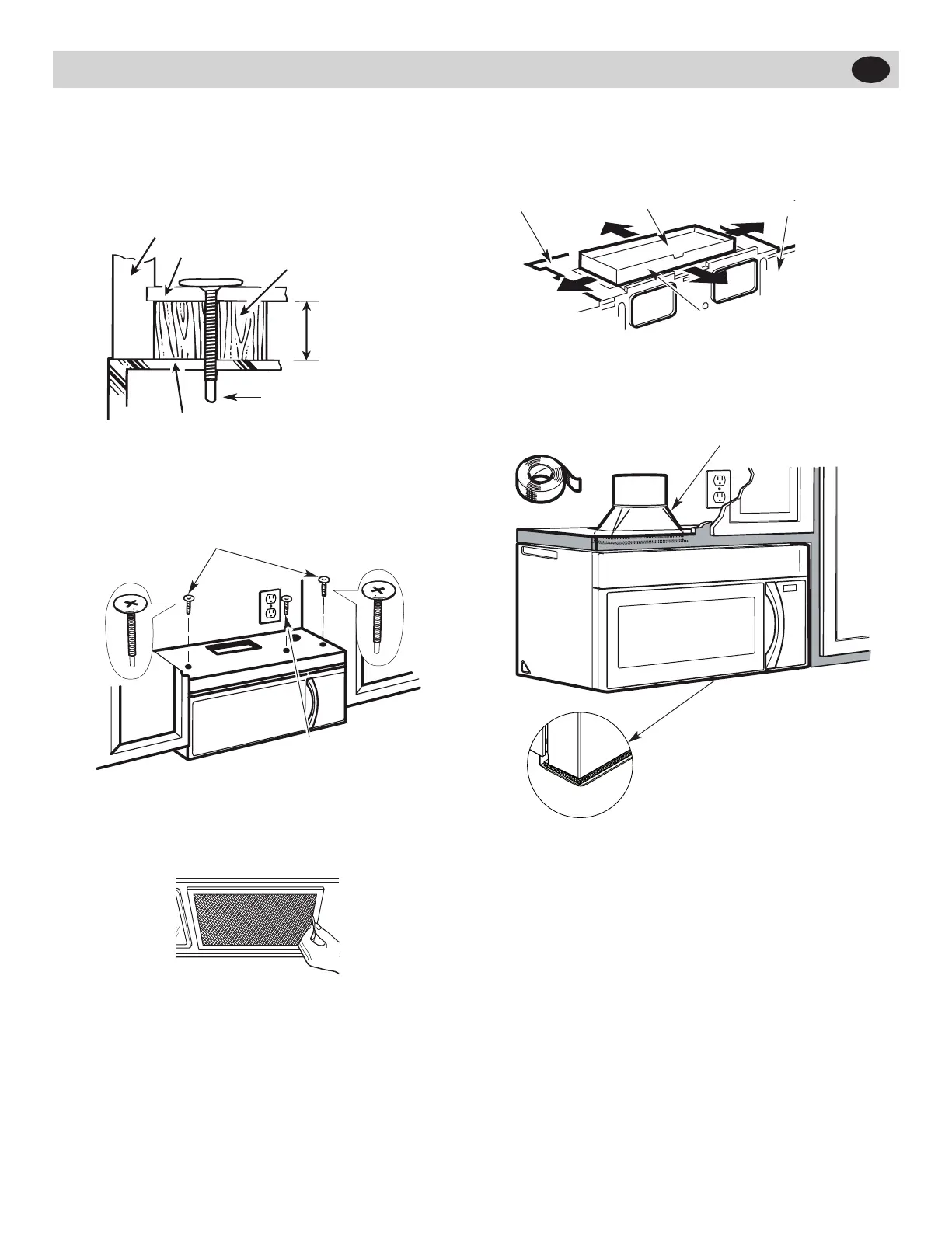

3.Insertaself-aligningscrewthroughtopcentercabinet
hole. Temporarily secure the oven by turning the screw
at least two full turns after the threads have engaged.
(It will be completely tightened later.) Be sure to keep
power cord tight. Be careful not to pinch the cord,
especiallywhenmountingushtobottomofcabinet.
Cabinet Front
Cabinet Bottom Shelf
Microwave Oven Top
Self-Aligning
Screw
Equivalent
to Depth of
Cabinet
Recess
4. Attach the microwave oven to the top cabinet.
5.Insert2self-aligningscrews
through outer top cabinet
holes. Turn two full turns on
each screw.
6.
Tighten center
screw completely.
7. Tighten the outer two screws to the top of the micro-
waveoven.(Whiletighteningscrews,holdthemicro-
wave oven in place against the wall and the top cabi-
net.)
8.Installgreaselters.Seethe
packed
with the microwave.
C6. ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor to
connect to the house duct.
Blower Plate
Blower Plate
Back of
Microwave
ForFront-to-Backor
Side-to-SideAdjust-
ment, Slide the Exhaust
Adaptor as Needed
C7. ADJUST THE EXHAUST ADAPTOR
House Duct
1. Extend the house duct down to connect to the exhaust
adaptor.
2. Seal exhaust duct joints using furnance duct tape for
high temperature applications.
heat shield and door.
EN
Advice & Instructions
Filler Piece
20
IMPORTANT: Remove the cardboard spacers between
