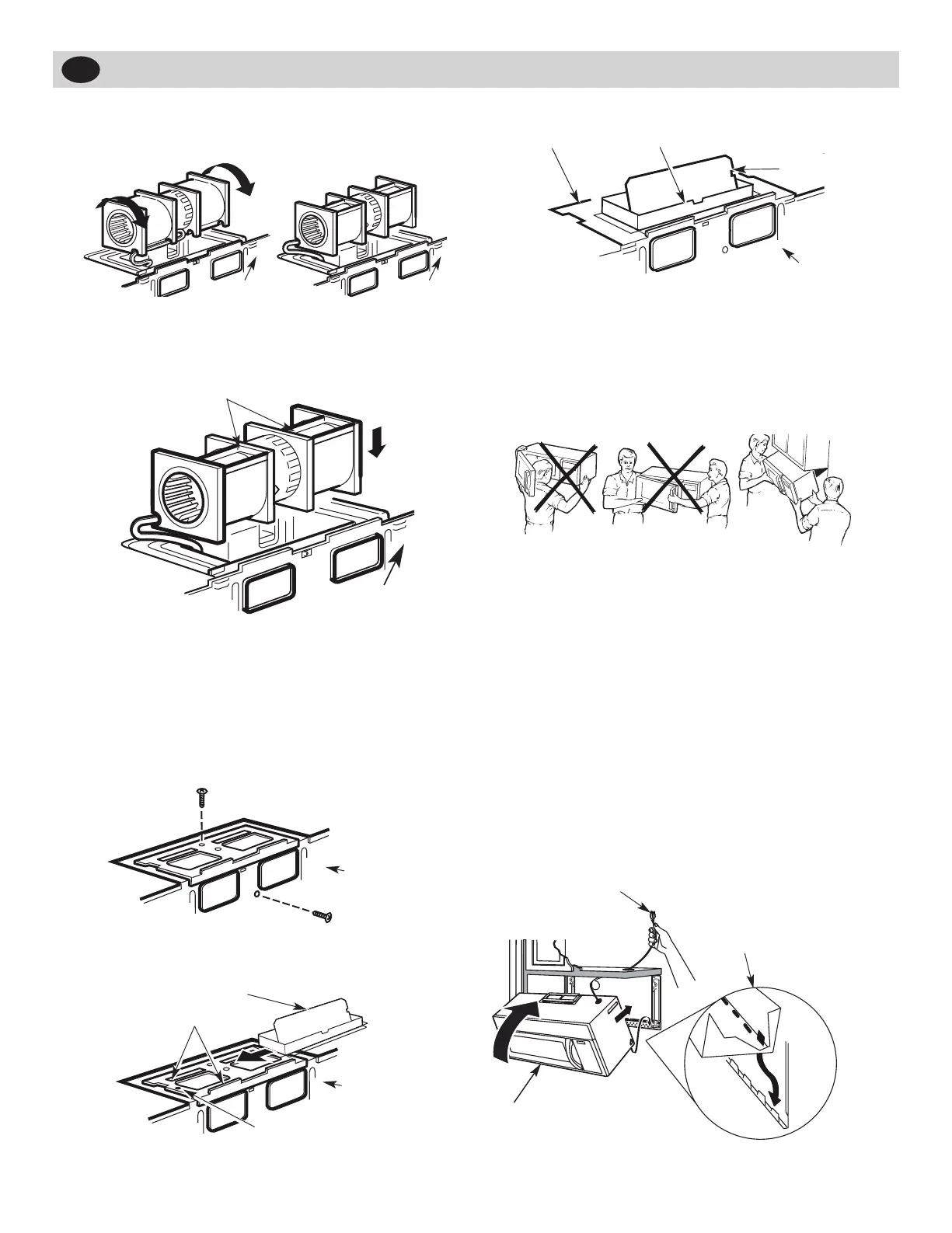

3. Roll the blower unit 90° so that fan blade openings are
facing out the top of the microwave.
Before Rotation
Back of
Microwave
Back of
Microwave
After Rotation
4. Place the blower unit back into the opening.
AFTER: Fan Blade
Openings Facing Top
Back of
Microwave
CAUTION: Do not pull or stretch the blower unit wiring.
Make sure the wires are not pinched, and that they are
properly secured.
5. Secure blower unit to microwave with the screw re-
moved in Step 1. Make sure the screw is tight.
6. Replace blower plate with the screw removed in Step 1.
Make sure the screw is tight.
Back of
Microwave
7. Attach the exhaust adaptor to the top of the blower
plate by sliding it into the guides of the blower plate.
Adaptor
Guide
Locking Tab
Back of
Microwave
Push in securely until it is in the locking tabs. Take care
to assure that the damper hinge is installed so that the
damper swings freely.
C4. CHECK FOR PROPER DAMPER OPERATION
Before Rotation Exhaust Adaptor
Damper
Back of
Microwave
• Makesuretapesecuringdamperisremovedanddam-
per pivots easily before mounting microwave.
• Youwillneedtomakeadjustmentstoassureproperali-
gnment with your house exhaust duct after the micro-
wave is installed.
C5. MOUNT THE MICROWAVE OVEN
FOREASIERINSTALLATIONANDPERSONALSAFETY,WE
RECOMMENDTHATTWOPEOPLEINSTALLTHISMICRO-
WAVEOVEN.
IMPORTANT: Do not grip or use the handle or heat shield
during installation. Do not remove the cardboard spacers
between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the cord.
NOTE:Werecommendusingllerblocksifthecabinet
front hangs below the cabinet bottom shelf.
IMPORTANT:Ifllerblocksarenotused,casedamage
may occur from overtightening screws.
NOTE:Whenmountingthemi-
crowave oven, thread power cord
through hole in bottom of top
cabinet. Keep it tight throughout
Steps1–3.Donotpinchcordor
lift oven by pulling cord.
1. Lift microwave, tilt it
forward, and hook slots at
back bottom edge onto
four lower tabs of mount-
ing plate.
2. Rotate front of oven up
against cabinet bottom.
EN
19
