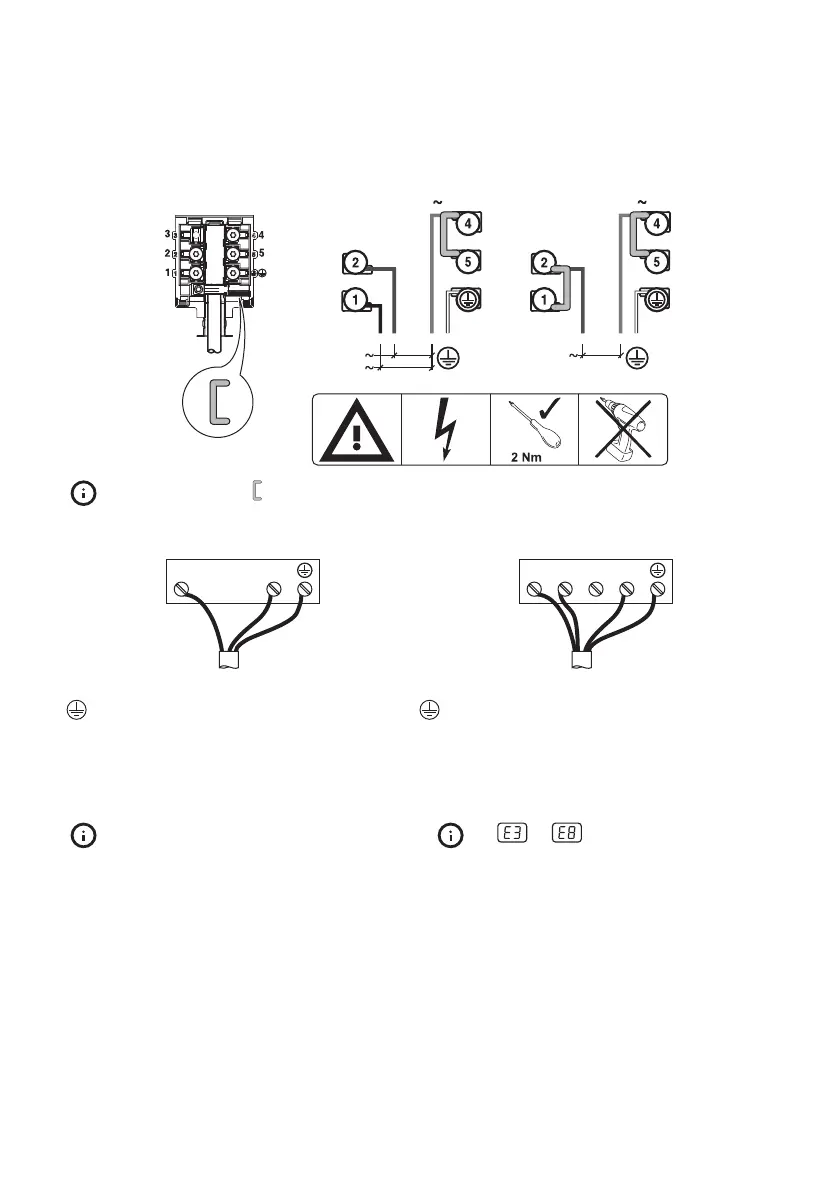

Connection diagram
220V-240V 1N
220V-240V
N PE
L
400V 2N
220V-240V
220V-240V
N
L1
L2
PE
Insert the shunts between the screws as shown.
Main power connection 1-phase Main power connection 2-phase
L N
L1 L2 L3 N
Wiring colours: Wiring colours:
Yellow / green Yellow / green
N Blue N Blue
L Black or brown L1 Black
L2 Brown
Tighten the terminal screws
securely!
Once you connect the hob to the mains,
check if all the cooking zones are ready to
use. Place a pot with some water on a
cooking zone and set the power setting for
each zone to the maximum level for a short
time.
If or symbol comes on
the display after you switch on
the hob for the rst time, refer to
"Troubleshooting".
ENGLISH 10
