9 Plug and pin assignments
This chapter will help you select the right cables and plugs to connect your valuable
equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if
a plug ts into a socket, the result of an incorrect connection may be a destroyed
DMX controller, a short circuit or ‘just’ a not working light show!

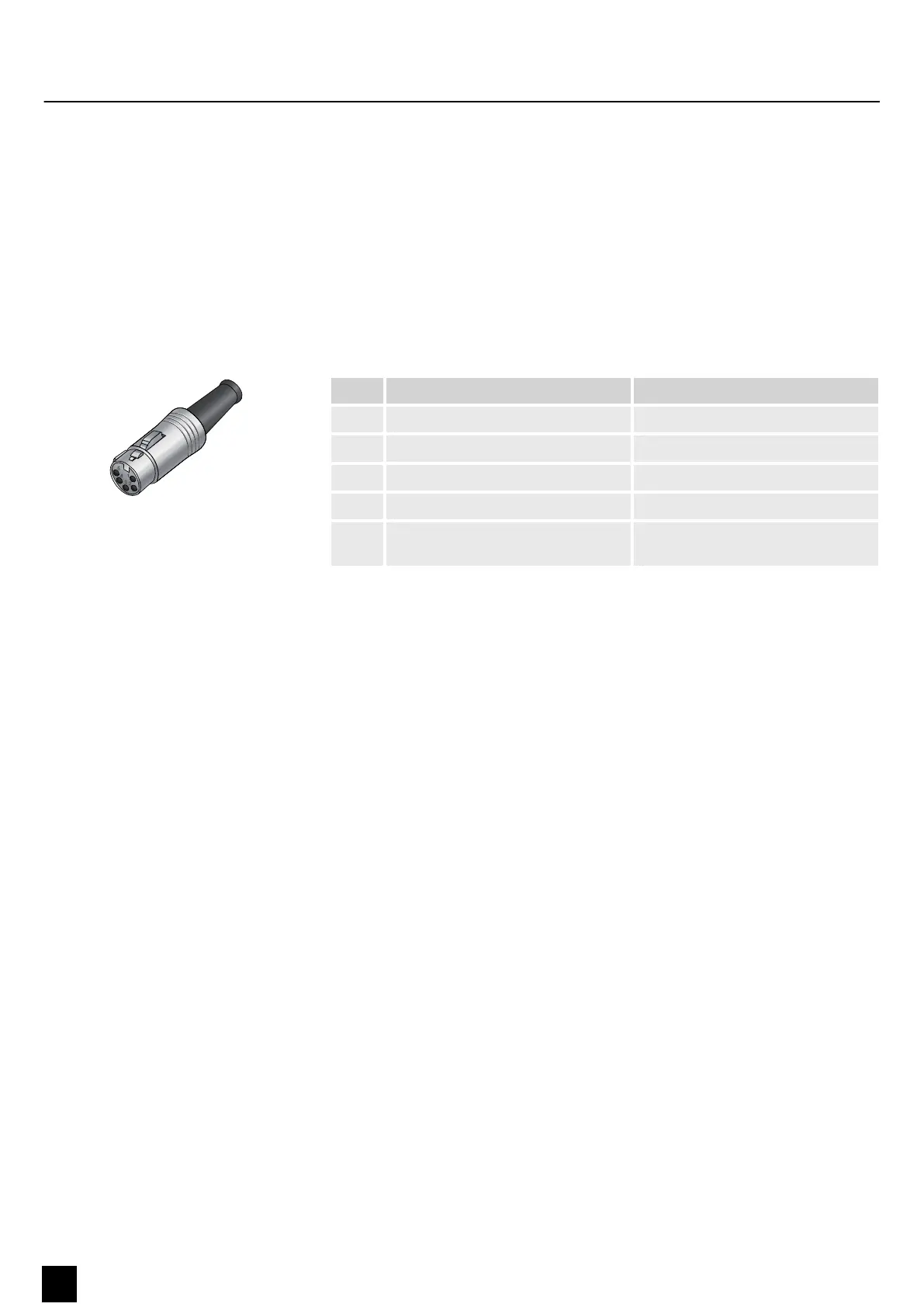

Three- and ve-pin XLR sockets serve as DMX outputs, a three- or ve-pin XLR con‐
nector (optionally) serves as DMX input. The gure below and the table show the pin
assignment.
Pin 5-pin 3-pin
1 Ground (shielding) Ground (shielding)
2 Signal inverted (DMX–, ‘cold’) Signal inverted (DMX–, ‘cold’)
3 Signal (DMX+, ‘hot’) Signal (DMX+, ‘hot’)
4 unused / second connection (DMX–)
5 unused / second connection (DMX
+)
Introduction
DMX connections
Plug and pin assignments
38
Wolfram 500
Moving Head
