9 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
ts into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

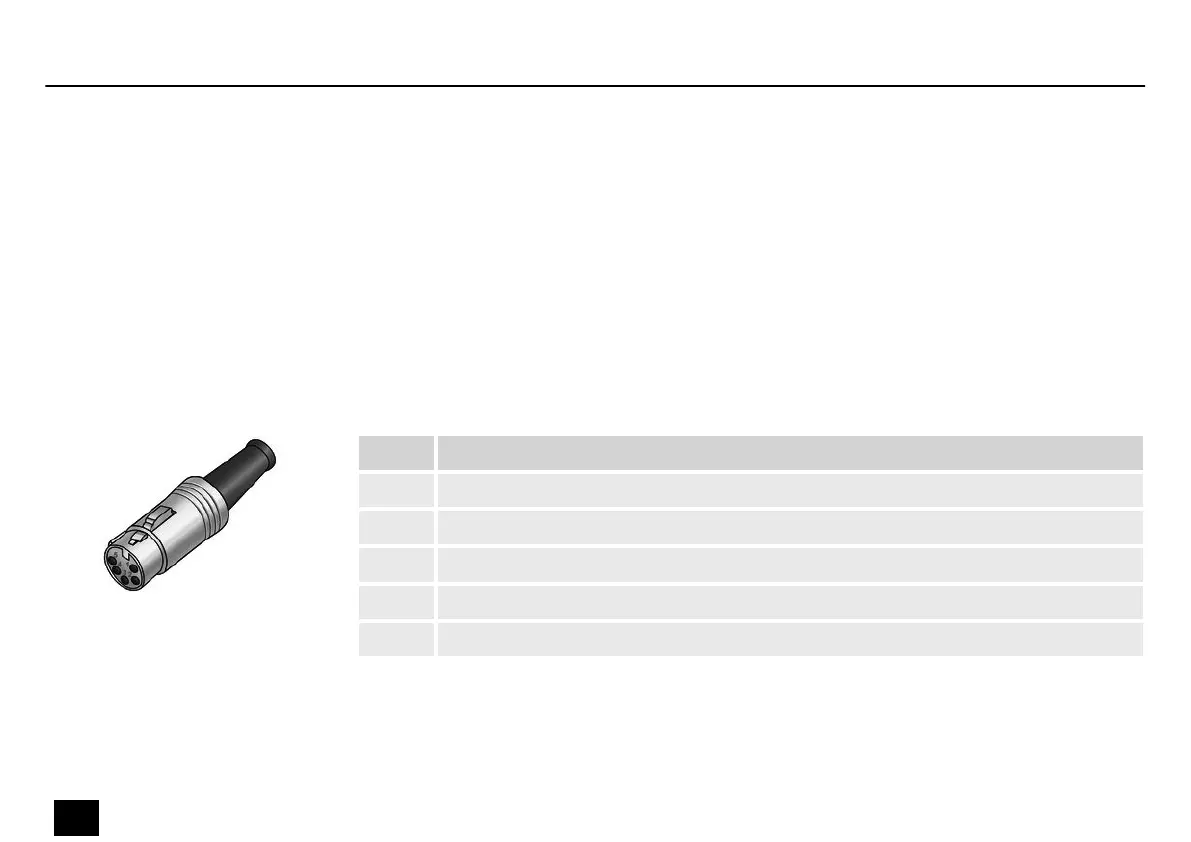

A ve-pin XLR socket serves as DMX output, a ve-pin XLR plug serves as DMX input. The
drawing below and the table show the pin assignment of a matching coupling.
Pin Assignment
1 Ground (shielding)
2 Signal inverted (DMX–, ‘cold’)
3 Signal (DMX+, ‘hot’)
4 unused / second connection (DMX–)
5 unused / second connection (DMX+)
Introduction
DMX connections
Plug and connection assignment
72
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR
