9 Plug and connection assignment

This chapter will help you select the right cables and plugs to connect your valuable equip‐

ment so that a perfect light experience is guaranteed.

Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug

ts into a socket, the result of an incorrect connection may be a destroyed DMX controller, a

short circuit or ‘just’ a not working light show!

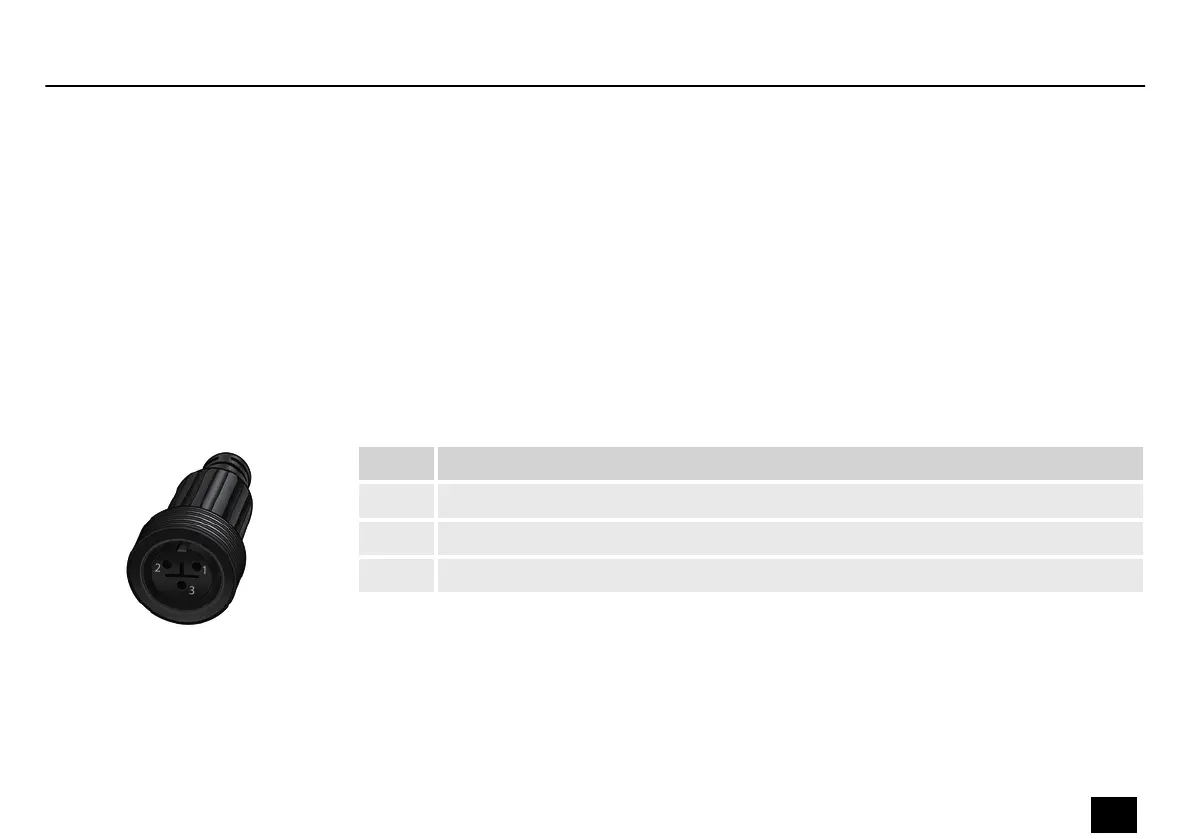

A three-pole coupling in IP65 design is used as DMX output, a three-pole plug in IP65 design is

used as DMX input. The drawing below and the table show the pin assignment of a matching

coupling.

Pin Assignment

1 Ground (shielding)

2 Signal inverted (DMX–, ‘cold’)

3 Signal (DMX+, ‘hot’)
