VSE163 Diagnostic electronics with Modbus TCP interface
22 © ifm electronic gmbh 11704143 / 00 09 / 2025

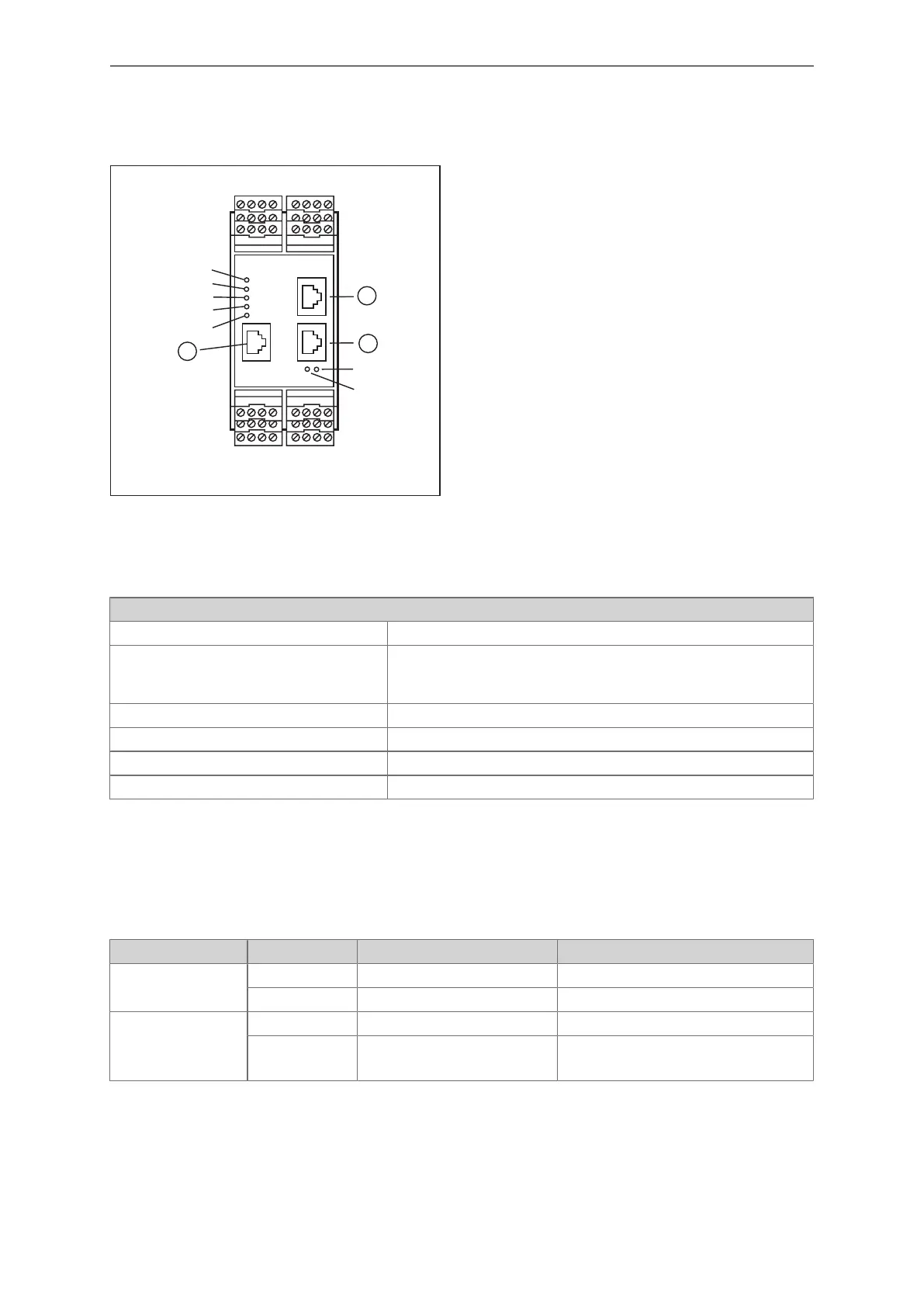

10 Operating and display elements
1
3
LED 1
LED 2
LED 3
LED 4
LED 5
LED 7
LED 6
2
1: Config: TCP/IP, IP address 192.168.0.1 (factory
setting), parameter setting and data interface
(e.g. VES004)
2: IE 1: Modbus TCP
3: IE 2: Modbus TCP
10.1 LEDs for sensors
LED 1 for sensor 1 LED 4 for sensor 4
Green on sensor connected and parameterized
Green flashing Sensor with set parameters
Type VSA: Sensor not connected or faulty
Type IEPE: Sensor not connected
Yellow on Warning
Red on damage alarm
Green/yellow flash alternately Teach process active
Yellow/red flash alternately no parameter set loaded
10.2 Operating states for the status LEDs on the industrial
Ethernet ports 1 and 2
VSE163 has two industrial Ethernet ports (RJ45 sockets) with one integrated link and activity LED each.
Designation Colour State Description
Link Green On Connection present at port 1/2
Green Off Connection not present at port 1/2
Activity Yellow flashes Data transfer at port 1/2
Yellow off No data transmission at port
1/2
Device functions reliably
(normal operation)
