Ultrasonic flow meter SUH1xx SUH22x SUH3xx SUH42x SUH5xx SUH6xx SUH7xx SUH8xx
11
If air bubbles can form in the pipe system:
u In case of horizontal installation, mount the sensor with the display on the side of the pipe
(A).
A B
C
F
F
F

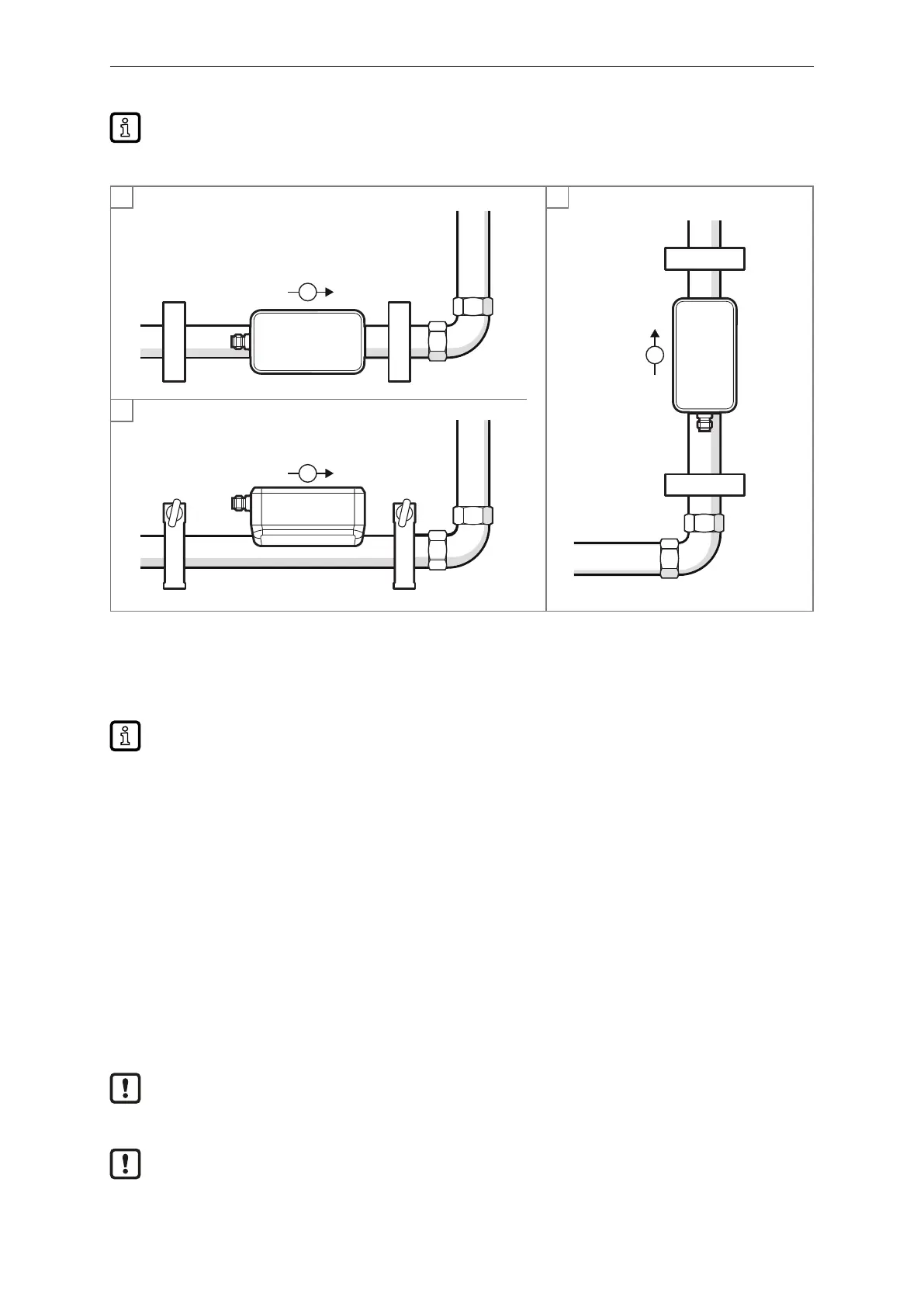

Fig.4: recommended installation position
F: direction of flow
A: horizontal installation, display on the side of the pipe.
B: horizontal installation, display on top of the pipe.
C: vertical installation.
The unit can be installed independently of the orientation if the following is ensured:
- No air bubbles can form in the pipe system.
- The pipes are always completely filled.
5.3.2 Non recommended installation position
• Directly in front of a falling pipe.
• In a falling pipe.
• Directly in front of the spout of a pipe.
• Directly in front of a valve.
• On the suction side of a pump.
• At the highest point of the pipe system.
5.4 Use in hygienic areas according to 3-A
The sensor is suited for CIP (clean in place) when installed correctly.
u Observe the application limits (temperature and material resistance) according to the data
sheet.
Not suitable for systems that have to meet the criteria of E9.2 / 63-04 of the 3-A standard 63-04.
