SUH1xx SUH22x SUH3xx SUH42x SUH5xx SUH6xx SUH7xx SUH8xx Ultrasonic flow meter
24
• [FEP1] defines the upper measured value at which the output signal has the frequency set under
[FrP1].
[FSP1] is only available for temperature measurement. Minimum difference between [FSP1]
and [FEP1] = 20 % of the final value of the measuring range.
If the measured value is outside the measuring range or in the event of an internal error, the frequency
signal indicated in the following figure is provided.
Frequency signal for flow:
FOU = OFF 0
FOU = ON 130
120
100
Err
= FrPx
MAW FEPx MEW
OL
100 200
[% MEW]
[% FrPx]
3
2
1
B
A

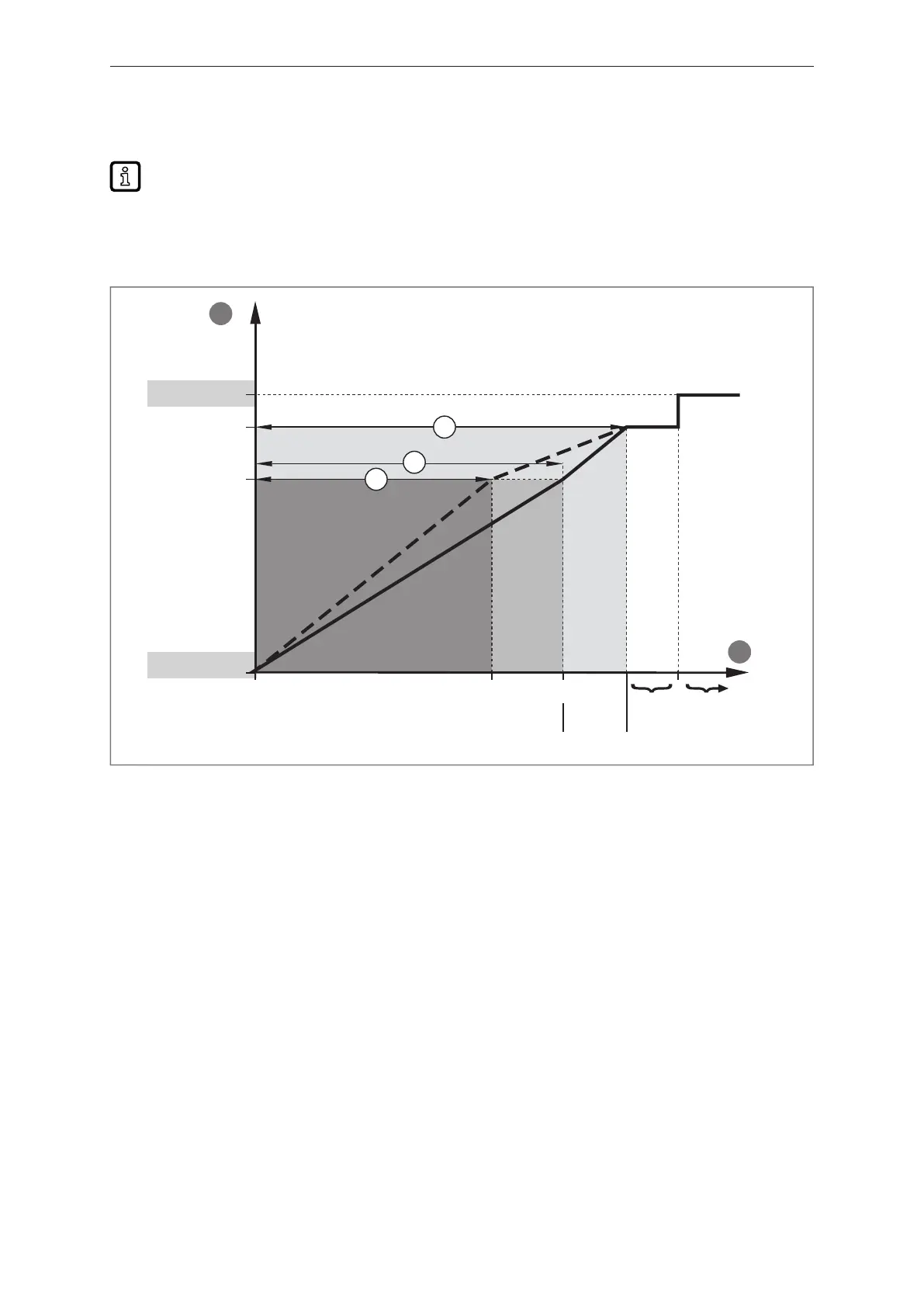

Fig.12: Output characteristic of the frequency output, flow
A: Frequency signal MAW: Initial value of the measuring range
B: Flow MEW: Final value of the measuring range
1: Indicating range FEPx: Frequency end point
2: Measuring range FrPx: Frequency signal (Hz) for upper measured value
3: Scaled measuring range OL: Above the indicating range
Err: Error
