SUH1xx SUH22x SUH3xx SUH42x SUH5xx SUH6xx SUH7xx SUH8xx Ultrasonic flow meter
12
u For use according to 3-A, take note of the corresponding regulations for cleaning and
maintenance.
u Ensure that the installation of the device in the system complies with 3-A guidelines.
u Use only process adapters with 3-A certification and marked with the 3-A symbol (Ò Accessories
at www.ifm.com).
u Secure clamp sensors with a suitable clamp.
u Use self-draining installation.
u To allow the medium to flow out of the process adapter, mount the device in the following
installation position:
• Vertical installation in a rising pipe (A).
- or –
• Horizontal position with a slight gradient so that the medium does not come to a standstill (B).
F
1
F
A B

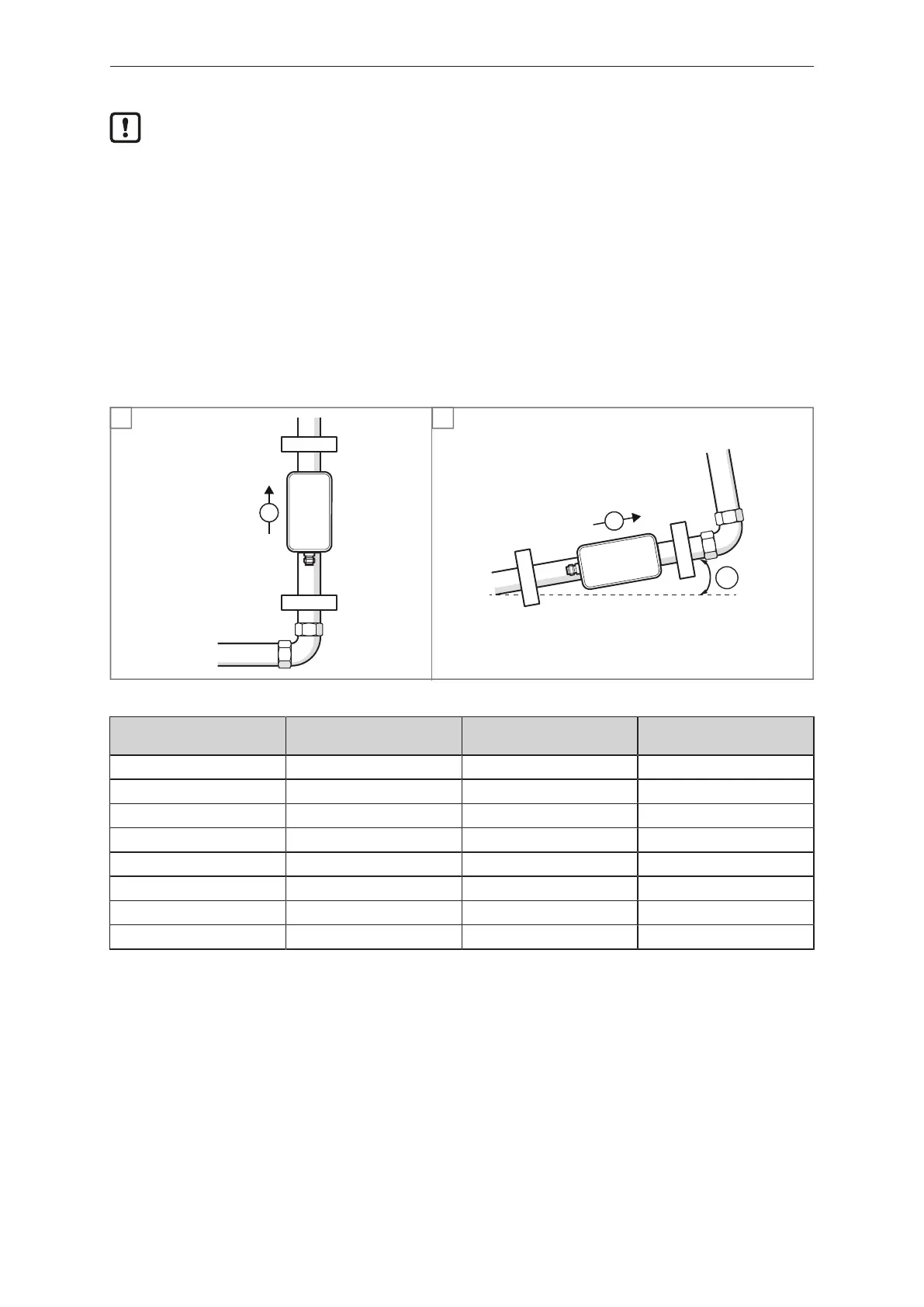

Fig.5: Process connection according to 3-A. 1: Minimum gradient; F = flow direction
Type
Minimum gradient
(DIN 32676 series A)
Type
Minimum gradient
(DIN 32676 series C)
DN15 29° 1/2" ---
DN20 43° 3/4" 32°
DN 25 25° 1" 10°
DN40 49° 1 ½" 42°
DN 50 16° 2" 12°
DN65 23° 2 ½" 3°
DN80 30° 3" 3°
DN100 15° 4" 3°
Tab.1: Minimum gradient for use according to 3-A
