SUHxxx Ultrasonic flow meter without display
12 © ifm electronic gmbh 11661449 / 01 07 / 2025
Insert the sealing rings and secure the device with a clamp. Observe the direction of flow [ 32].
Avoid edge formation at the transition between the sensor and the pipe, as this can affect
the flow profile and the measuring accuracy ( Figure).
Observe information on suitable pipe standards ( documentation.ifm.com).
SUHxxx SUHxxx

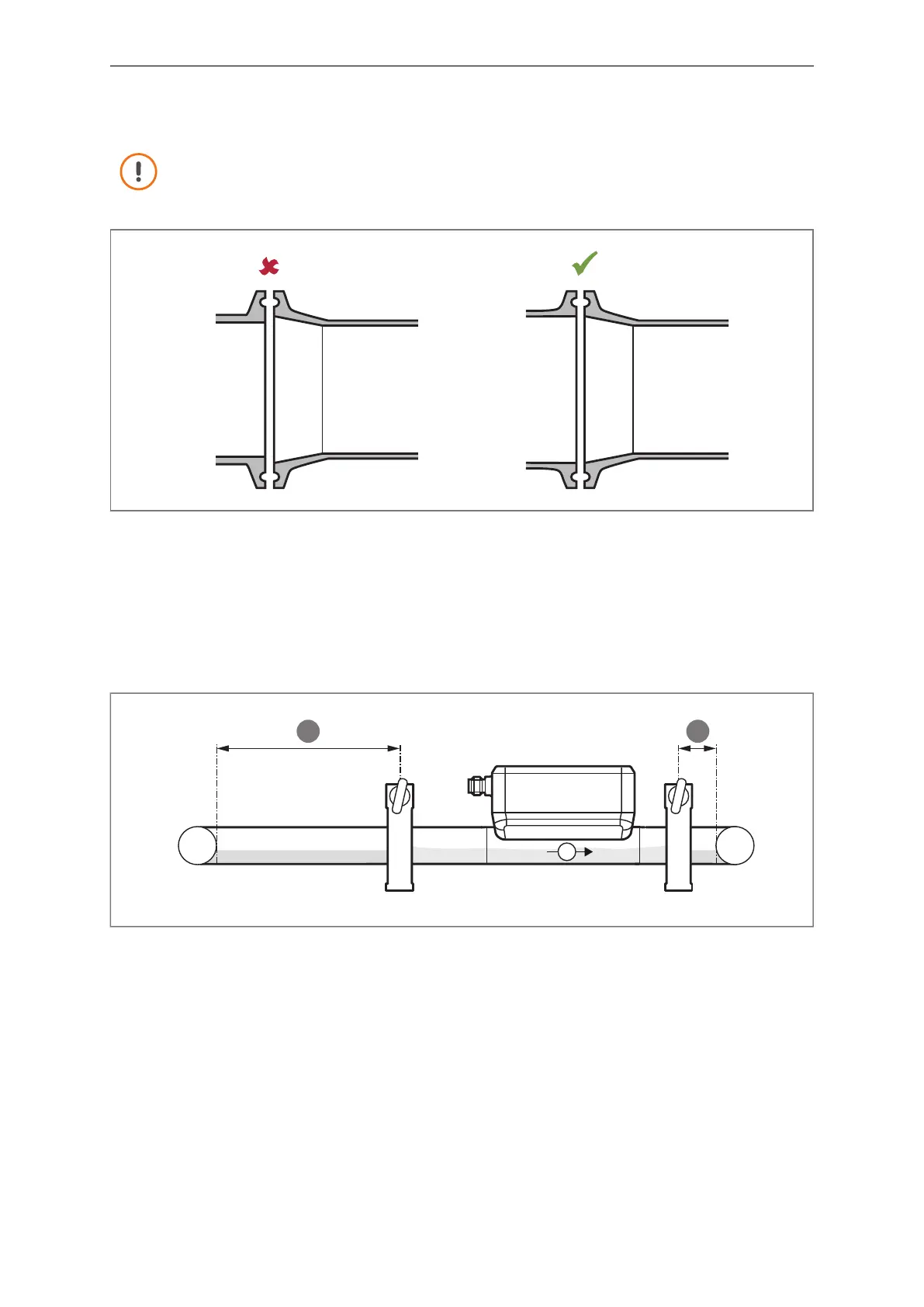

Fig.2: Avoid edge formation in the process connection
6.2 Interference
Structures in the pipe, bends, valves, reducing pieces and the like affect the function of the unit.
Adhere to the distances between sensor and interference.
F
SS
A B
Fig.3: Interference
S: Interference
F: Direction of flow
A: Distance between interference and clamp at the inlet pipe (DN = external pipe diameter):
• 5 x DN: SUH1xxx / SUH8xx / SUH2xx / SUH3xx / SUH4xx
• 15 x DN: SUH5xx / SUH6xx / SUH7xx
B: Distance between interference and clamp at the outlet pipe (DN = external pipe diameter):
• 1 x DN: SUH1xxx / SUH8xx / SUH2xx / SUH3xx / SUH4xx
• 3 x DN: SUH5xx / SUH6xx / SUH7xx
