Ultrasonic flow meter without display SUHxxx
© ifm electronic gmbh 11661449 / 01 07 / 2025 13
6.3 Installation position
6.3.1 Recommended installation position
Install the unit so that the measuring pipe is always completely filled.
Install in front of or in a rising pipe.
If air bubbles can form in the pipe system:
In case of horizontal installation, mount the sensor with the display on the side of the pipe
(A).
A B
C
F
F
F

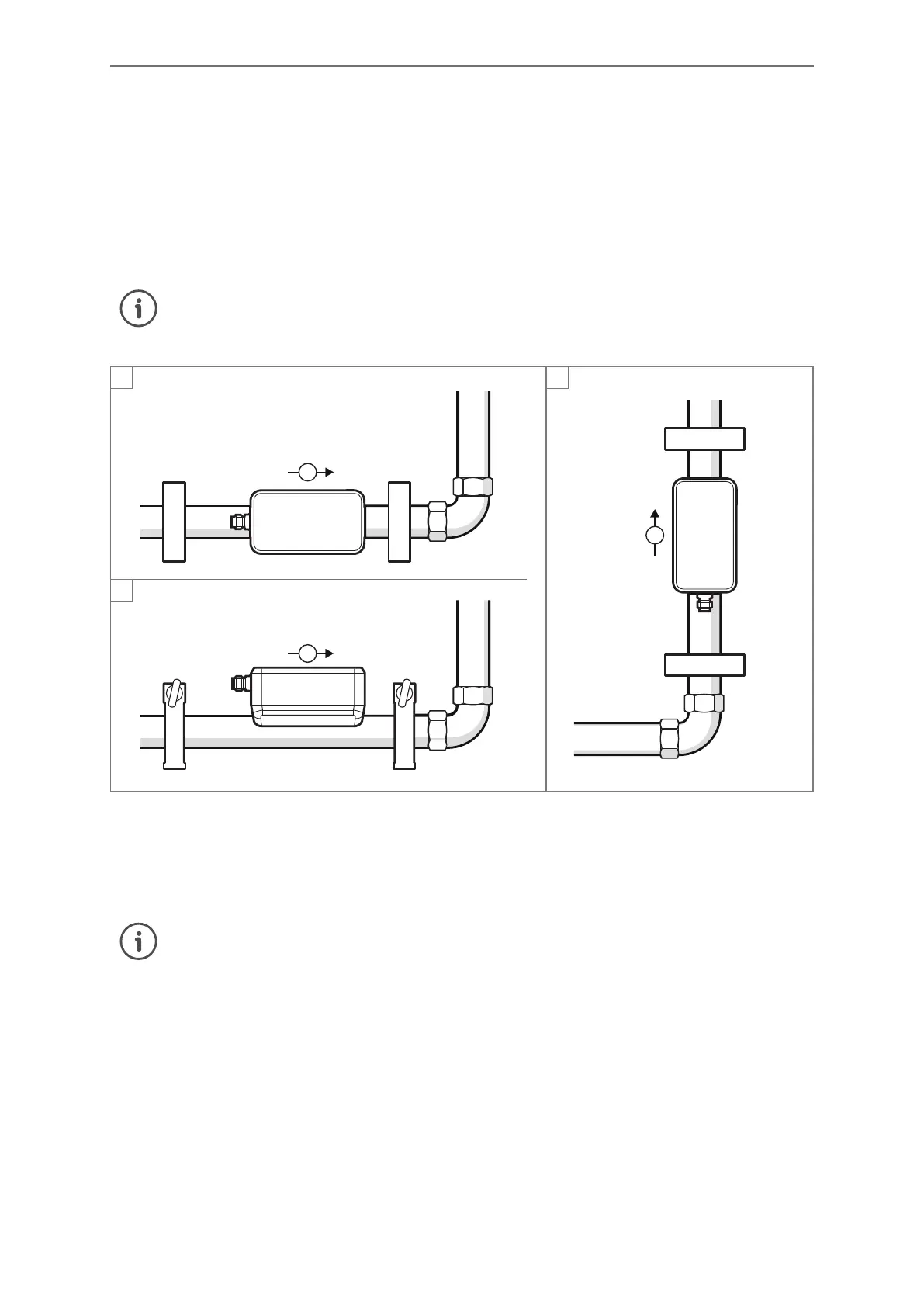

Fig.4: recommended installation position
F: direction of flow
A: horizontal installation, display on the side of the pipe.
B: horizontal installation, display on top of the pipe.
C: vertical installation.
The unit can be installed independently of the orientation if the following is ensured:
- No air bubbles can form in the pipe system.
- The pipes are always completely filled.
6.3.2 Non recommended installation position
▪ Directly in front of a falling pipe.
▪ In a falling pipe.
▪ Directly in front of the spout of a pipe.
▪ Directly in front of a valve.
▪ On the suction side of a pump.
▪ At the highest point of the pipe system.
