Ultrasonic flow meter SU2x5x SU6x5x SU7x5x SU8x5x SU9x5x
11
F
F
F
A
B
C

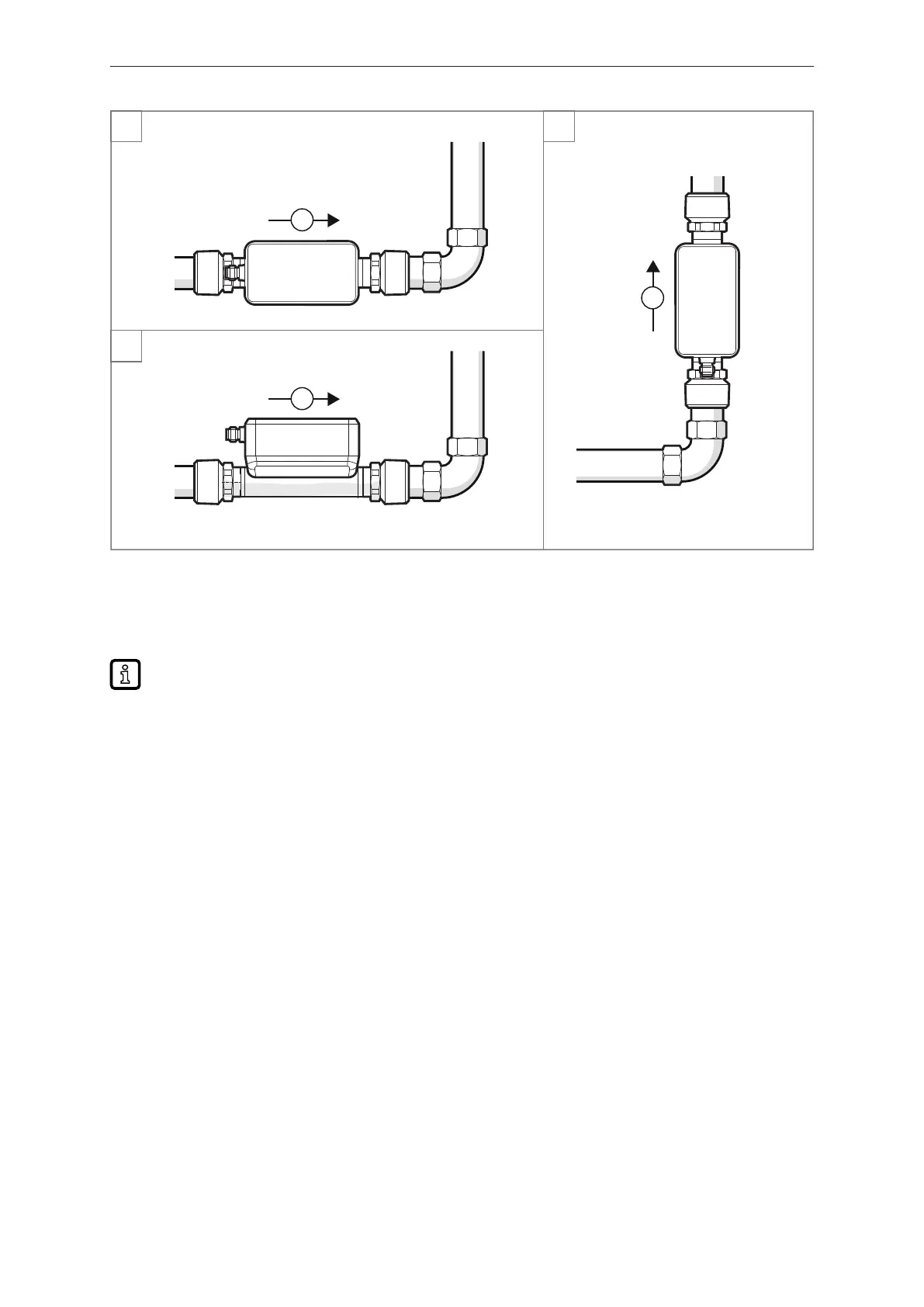

Fig.3: Recommended mounting position
F: Direction of flow
A: Horizontal installation, top of the device to the side of the pipe.
B: Horizontal installation, top of the device on the pipe.
C: Vertical installation.
The unit can be installed independently of the orientation if the following is ensured:
- No air bubbles can form in the pipe system.
- The pipes are always completely filled.
5.3.2 Non recommended installation position
• Directly in front of a falling pipe.
• In a falling pipe.
• Directly in front of the spout of a pipe.
• Directly in front of a valve.
• On the suction side of a pump.
• At the highest point of the pipe system.
