Encoder (SR) with CANopen interface RM900S RM901S RM902S RM903S
13
6.1.3 Servo clamps
u Refer to the customer-specific drawing for dimensions and individual mounting options.
u Use three servo clamps for mounting. Distribute these around the encoder offset by 120° and
fasten each to the flange plate with an M4 screw.
u Use a flange plate for mounting on the machine with a suitable centring collar.
u Use M4 steel screws (recommended: coated steel screws, e.g. galvanised) with a strength class of
at least 6.8 (recommended: 8.8) to fasten the servo clamps to the flange plate.
u Depending on the environmental conditions, use stainless steel screws with a strength class of at
least 70.
u Tighten the M4 screws to a tightening torque of 2.2 Nm and secure with medium-strength screw
retaining compound to prevent unintentional loosening.
u Use screws with sufficient thread length.
u Screw in the screws completely.
u The screw-in depth in the flange plate must be at least 4 mm in steel and at least 6 mm in
aluminium.
u Keep the surfaces to be clamped free of lubricants or other soiling.
u The type of servo clamps must match the outer diameter of the flange ring and be mounted in
accordance with the “top” orientation.
When the spring engages in the flange groove, correctly orientated servo clamps should lie flat on the
flange plate.

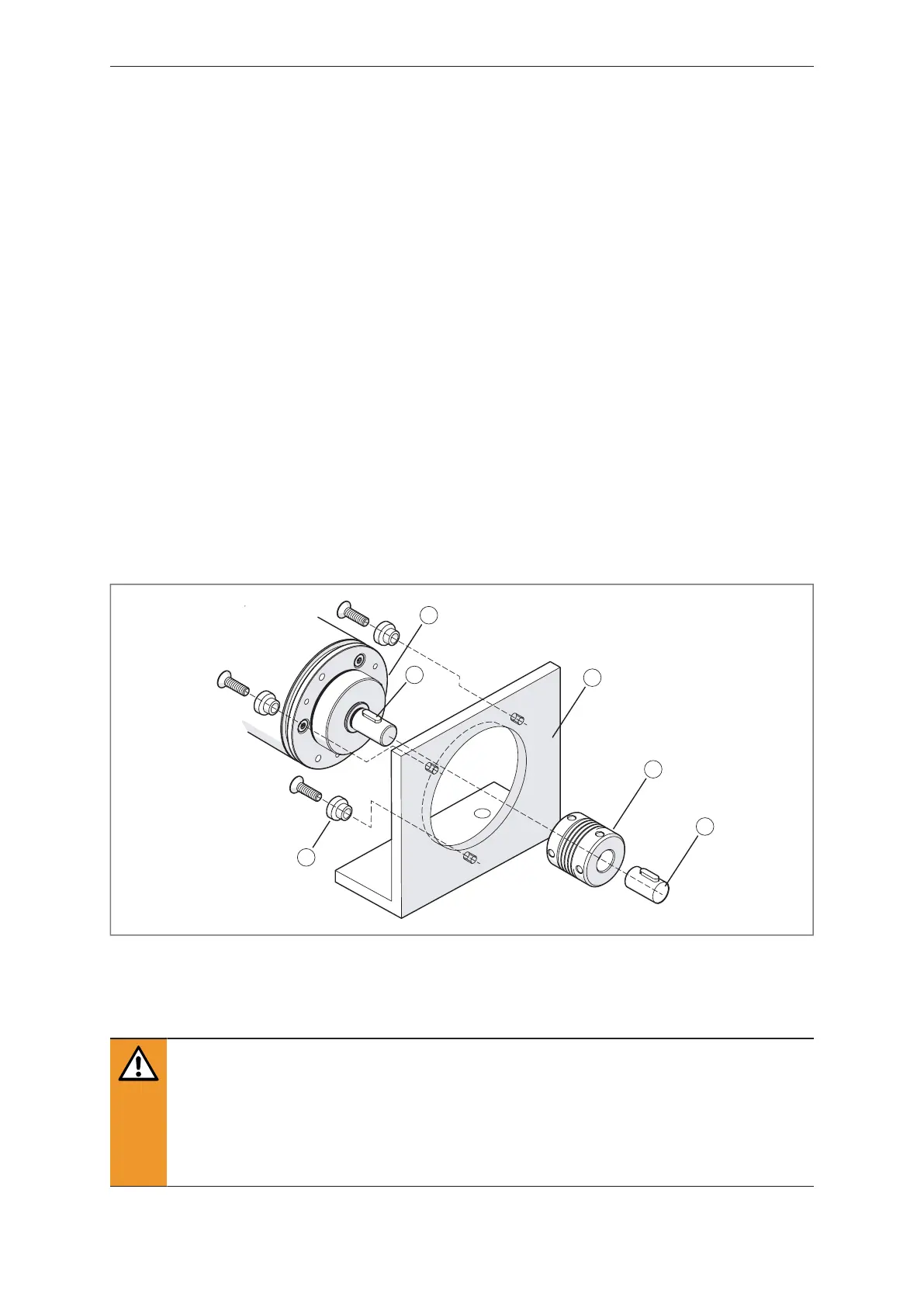

1
4
5
6
2
3
1: Encoder 2: Parallel key
3: E60041 clamp 4: Flange plate (machine)
5: Coupling with keyway 6: Actuator shaft
WARNING
Failure of the safety sub-function due to mechanical damage (breakage of the torque
support).
w Breakage of the torque support is not detected by the encoder (SR).
u Possible breakage of the torque support must be taken into account in the equipment’s
safety concept by the system manufacturer.
