Electronic manometer PG17xx
15
4
2
0
6
8
10
psi
psi
Output
Status
TEMPbar
60
40
20
0
80
100
120
140
bar
Enter
-1
4
2
0
6
8
10
psi
psi
Output
Status
TEMPbar
60
40
20
0
80
100
120
140
bar
Enter
-1
1 2

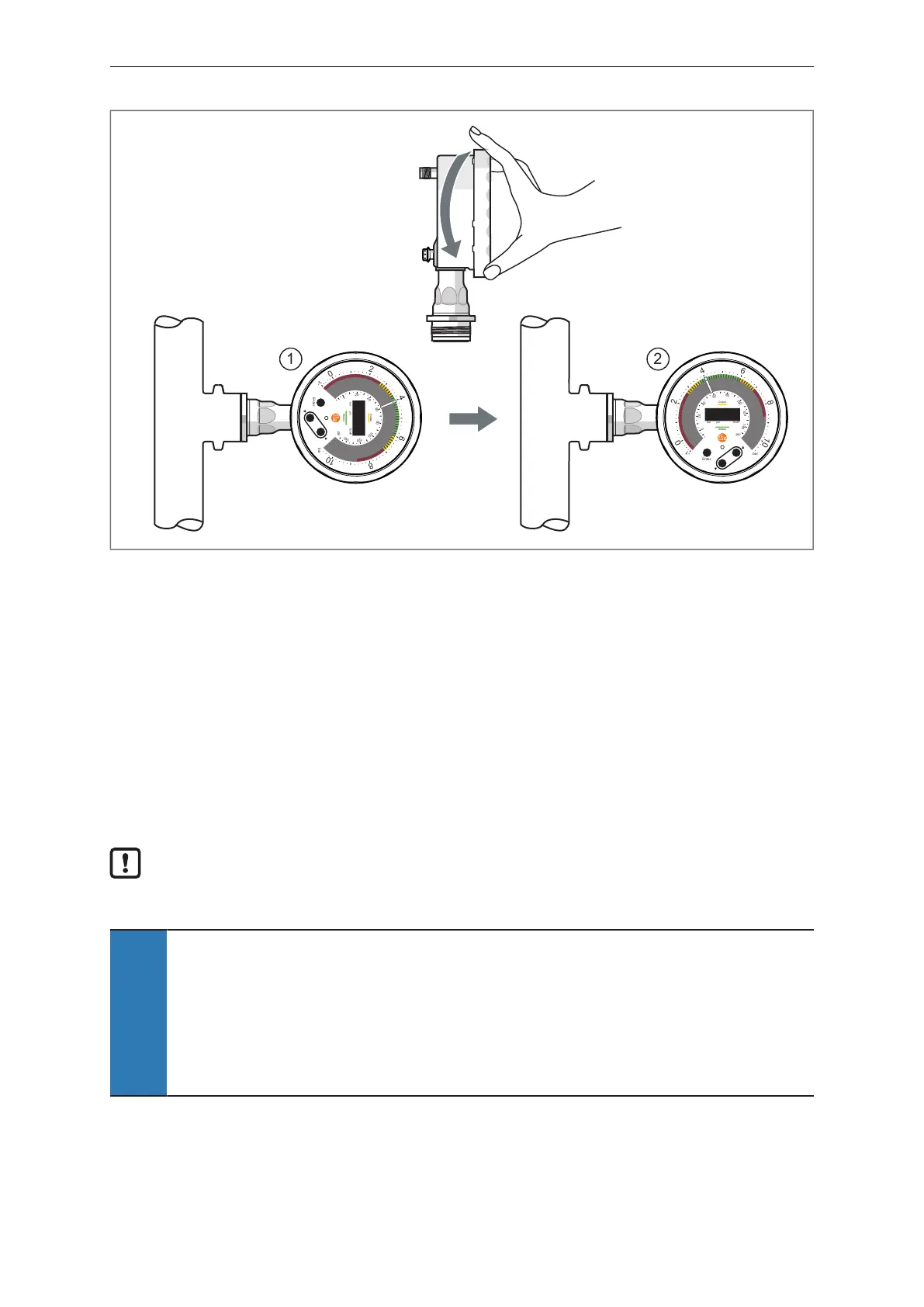

Fig.5: Rotate display: 1: Display on delivery; 2: Display rotated by 90°.
u Manually turn the display housing left to the desired position. Use a work glove if necessary.
5.5 Ventilation diaphragm
5.5.1 Function of ventilation diaphragm
The ventilation diaphragm enables the relative pressure measurement since barometric and
temperature-dependent pressure fluctuations between the measuring cell and the environment are
compensated for.
The ventilation diaphragm is protected against damage by a screwed filter cover with circumferential
ports.
For a correct functioning of the diaphragm please take the following into account:
u Remove soiling or cleaning agents on the filter cover immediately using plenty of lime-
deficient splash water.
ATTENTION
Contact of the diaphragm with liquid during a cooling phase
w Negative pressure in the device.
w Slight distortion of the measured value.
w Additional strain on the diaphragm.
u Make sure that there is no liquid in the filter cover while the sensor is in a cooling phase.
5.5.2 Replace filter cover
The ventilation diaphragm is protected by a filter cover applied at the factory.
