Electronic manometer PG17xx
39
10.4.6 Calibration of the measurement characteristic
The calibration factor [CGA] influences the gradient of the measurement characteristic of the
measuring element.
The zero-point calibration [coF.P] setting is retained when the [CGA] parameter is changed.
The slope modification of the measurement characteristic is indicated in percent. The factory
setting is [CGA]=100%. After a change the calibration can be reset to factory setting.
Changing the [CGA] parameter has an effect on the output signal.
u Readjust [AEP] if necessary.
MEW
105 %
V1
V0
V2
100 %
95 %
1
2

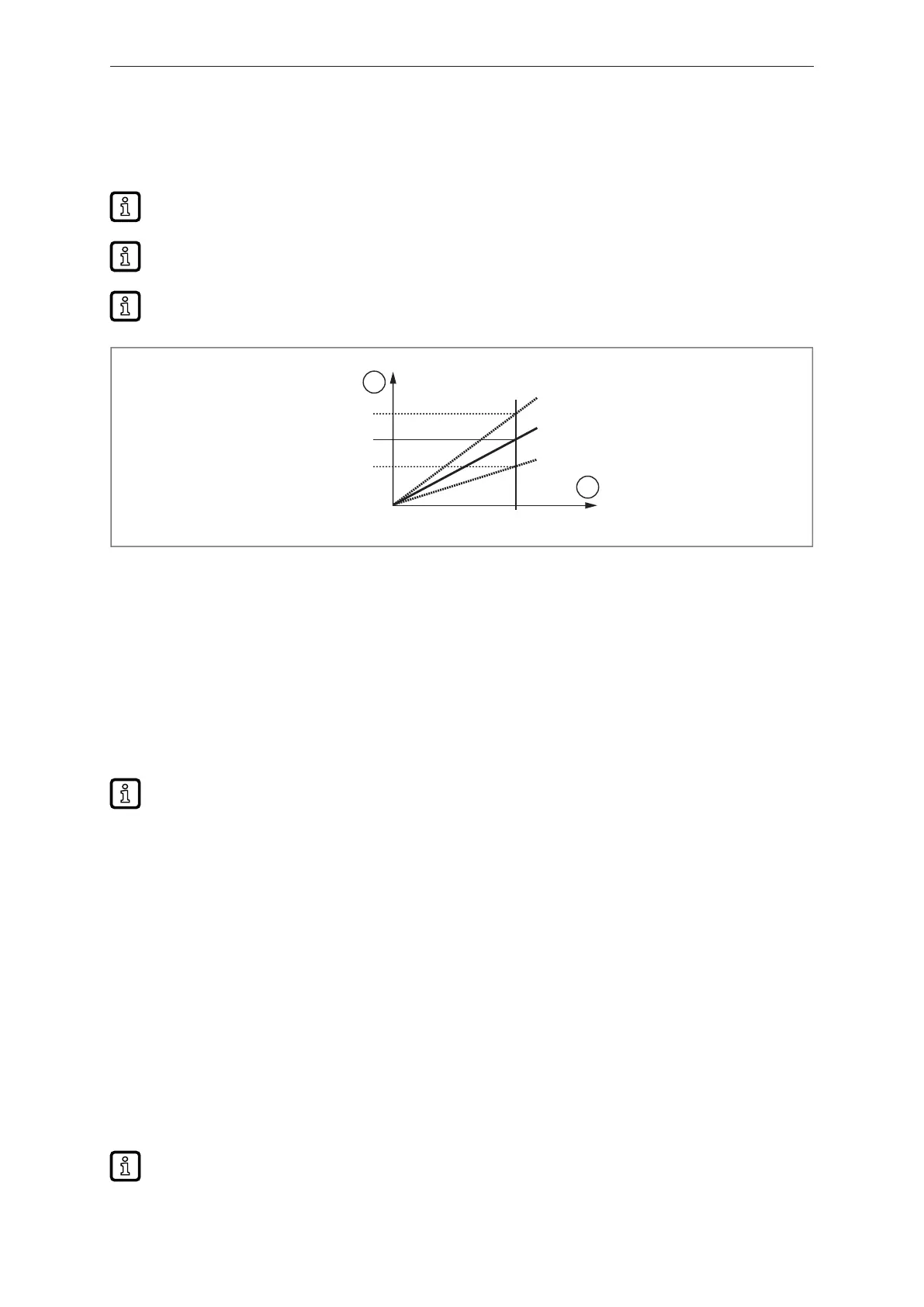

Fig.20: Calibration of the measurement characteristic
1: Output signal
2: Process value
MEW: Final value of the measuring range
V0: Measurement characteristic at factory setting
V1: Measurement characteristic after offset by +5%
V2: Measurement characteristic after offset by -5%
Setting range:
-5 %...+5 % of the measuring range end value (MEW)
For PG1709: -5 %...+5 % of the measuring span (-1000 mbar...+1000 mbar)
The parameter is reset to the factory setting both via an application reset and a back-to-box
reset.
10.4.6.1 Parameter setting via unit keys: Calibration
u Call up the menu [EF] > [CFG].
u Select [CGA.P] and set the gradient of the measuring characteristic in per cent.
10.4.7 Switch-point logic
The switch-point logic of the switching output can be set.
Selectable values:
• [H.Act] = High active = normally open
• [L.Act] = Low active = normally closed
10.4.7.1 Parameter setting via the device keys: Switch-point logic
Switching signal channel SSC1.1 is set using the device keys. Further switching signal channels
can be set via the IO-Link interface.
u Go to [EF] > [OU1].
