Electronic manometer PG17xx
35

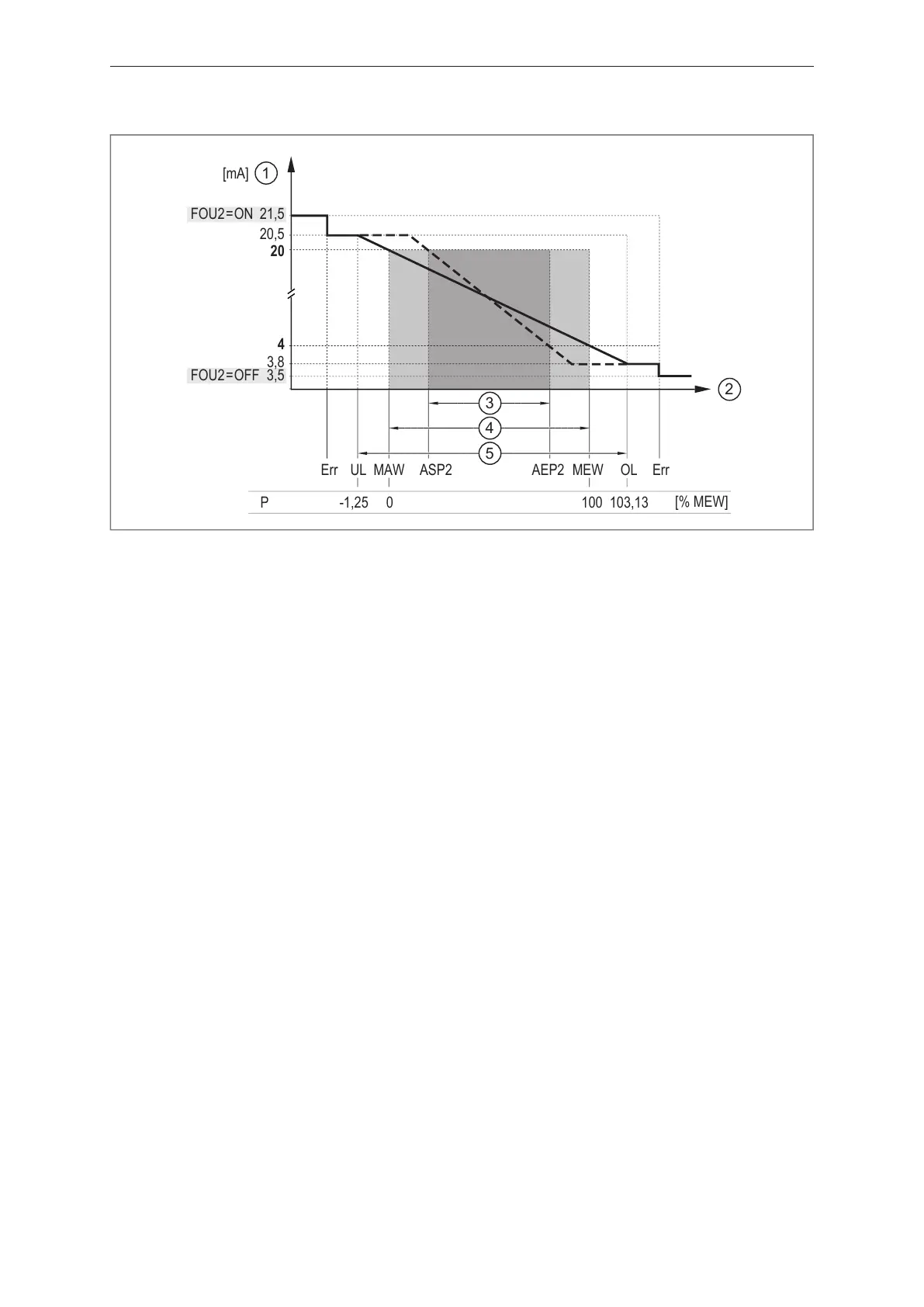

Analogue signal with setting [ou2] = [Ineg]:
MEWMAW AEP2
ASP2
[% MEW]
P -1,25 0 100 103,13
4
3,8
20
20,5
21,5FOU2
= ON
FOU2
= OFF
[mA]
UL
Err Err
OL
3,5
1
2
3
4
5
1: Analogue signal
2: Measured value for pressure (= P; in configured unit)
3: Scaled measuring range
4: Measuring range
5: Display range
MAW: Initial value of the measuring range with non-scaled measuring range
MEW: Final value of the measuring range with non-scaled measuring range
ASP2: Analogue start point with scaled measuring range
AEP2: Analogue end point with scaled measuring range
UL: Below the display range
OL: Above the display range
FOU2: Output behaviour in case of an error
10.3.2.1 Parameter setting via the device keys: Analogue signal
ü The standard unit of measurement is selected: [EF] > [CFG] > [uni.P].
u Go to [EF] > [OU2] to configure output OUT2.
u Select [ou2] and set the function: [I] or [InEG].
u Select [ASP2] and set the measured value for the analogue start point.
u Select [AEP2] and set the measured value for the analogue end value.
10.3.2.2 Teach via device keys: Analogue signal
ü The standard unit of measurement is selected: [EF] > [CFG] > [uni.P].
u Go to [EF] > [OU2] to configure output OUT2.
u Select [ou2] and set the function: [I] or [InEG].
u Approach the minimum system pressure and keep it constant.
u Select [tASP] and set [Yes].
w The current value is adopted as the analogue start point.
u Approach the maximum system pressure and keep it constant.
u Select [tAEP] and set [Yes].
w [donE] is displayed and the current value is adopted as the analogue end point.
