Pressure-resistant position sensor for hydraulic cylinders MFH2xx
© ifm electronic gmbh 11660562 / 00 06 / 2025 9
The parameters for each switching signal channel can be set individually.
During parameter setting, the switch points, mode and logic of the switching signal channels are set.
Mode
You can choose between the following modes according to the IO-Link smart sensor profile ‒ Function
Class “Object Detection”:
• Deactivated
• Single Point Mode
• Two Point Mode
• Window Mode
Logic
By setting the logic High active or Low active, you can specify which value the switching signal channel
has in the active state:
• High active: The switching signal channel is “high” in the active state (= ON = normally open = 1)
• Low active: The switching signal channel is “low” in the active state (= OFF = normally closed = 0)

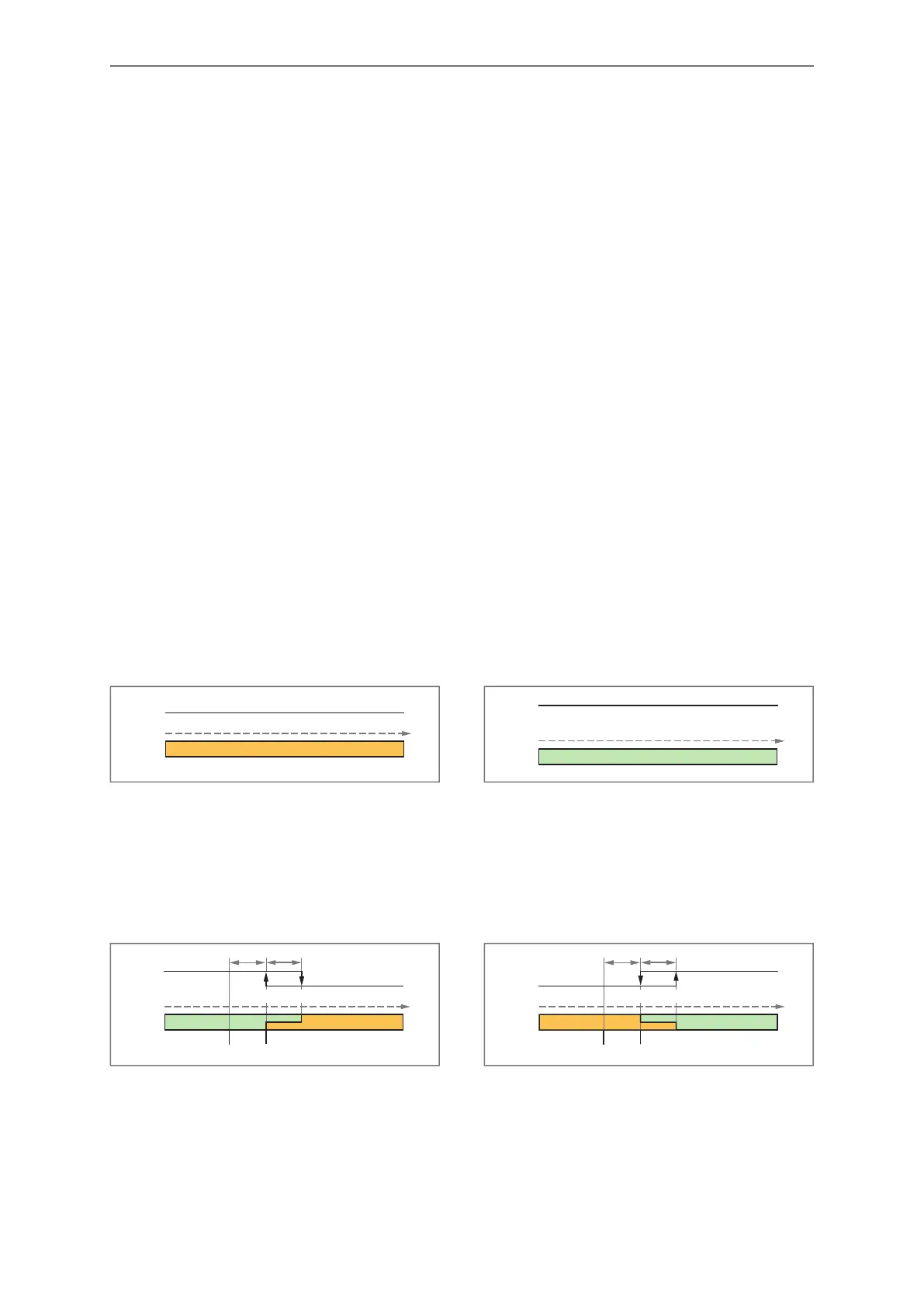

The following figures show the status of the switching signal channels depending on the mode, logic and
process data value (PDV).
Deactivated
If the Deactivated mode is set for a switching signal channel, the switching signal channel will permanent-
ly have the following value regardless of the process value:
• For logic High active: permanently “low”.
• For logic Low active: permanently “high”.
low
PDV
0
Fig.2: Deactivated / High active
high
PDV
1
Fig.3: Deactivated / Low active
Single-point mode
Only one switch point SP1 is manually set or taught.
The reset point SP1+H results from the switch point and the set hysteresis.
When teaching, the switch point is set above the taught process value TP1 by the hysteresis.
SP1
low
high
PDV
0
1
H
H
TP1
TP1
+
H SP1
+
H
Fig.4: Single Point Mode / High active
H: Hysteresis
SP1: Switch point
TP1: Teach point
TP1+H: Switch point during teach (= SP1)
SP1+H Reset point
SP1
low
high
PDV
0
1
H
H
TP1
TP1
+
H SP1
+
H
Fig.5: Single Point Mode / Low active
H: Hysteresis
SP1: Switch point
TP1: Teach point
TP1+H: Switch point during teach (= SP1)
SP1+H Reset point
