Electronic sensor for level and temperature LT39xx
9
u Briefly press [Set].
w Display of the other unit of measurement for 30s; the respective LED is lit.
4.7 Analogue function
The unit provides an analogue signal proportional to the level / temperature.
The analogue output (OUT2) can be configured:
• [SEL2] assigns the process value (level / temperature) to the analogue output.
• [ou2] defines the output function of the analogue output (mA/V).
In case of an internal fault, the output signal reacts according to the parameters set in [FOU2].
4.7.1 Level measurement with overflow prevention
u [SEL2] = [LEVL]
u [OP] = [value ...] (Overflow prevention OP activated!)
u [ou2] = [I] or [U]
I [mA] / U [V]
L
20 / 10
4 / 0
A
OP

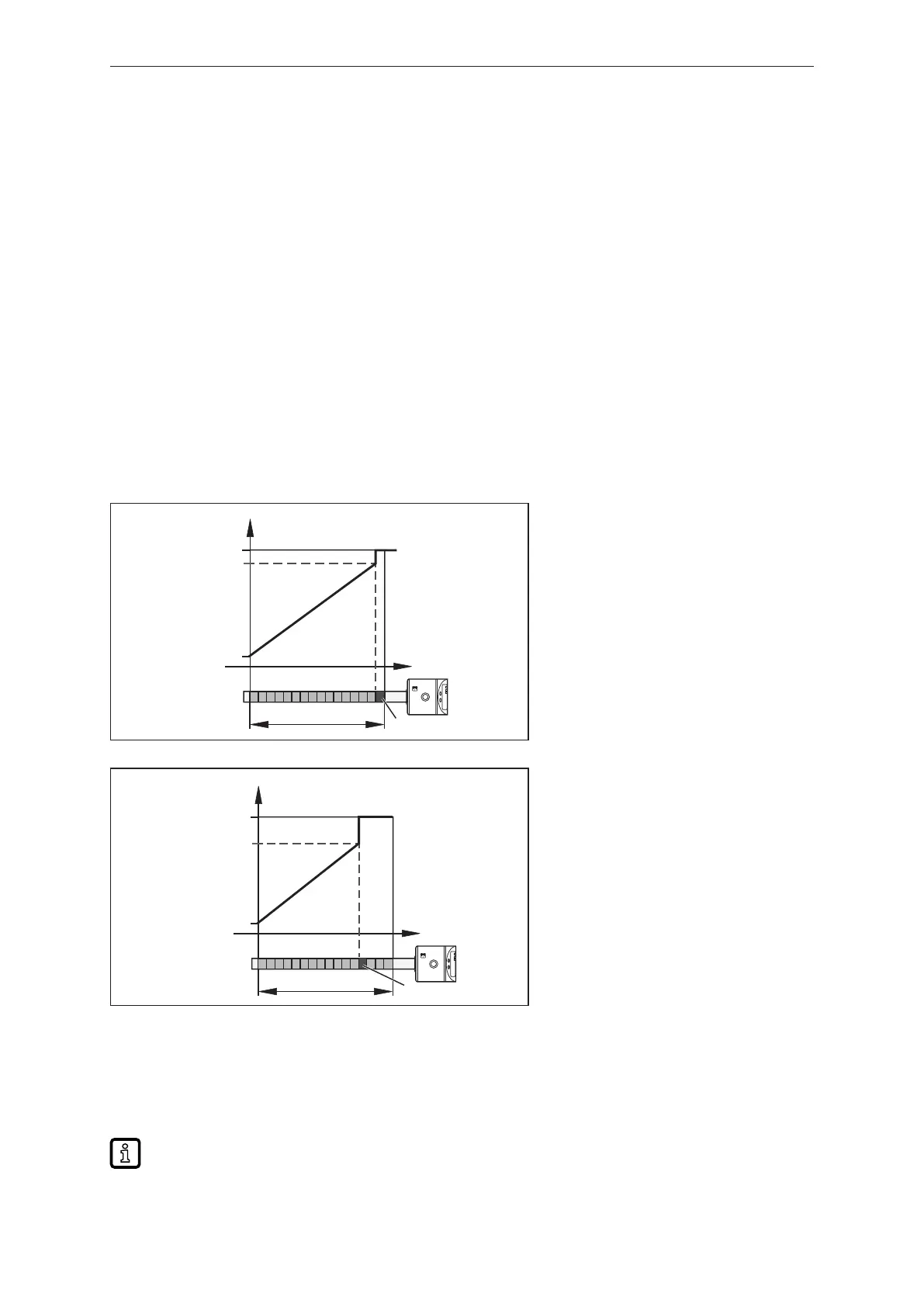

Fig.1: OP positioned in the upper segment.
I [mA] / U [V]
L
20 / 10
4 / 0
A
OP
Fig.2: OP shifted downward.
A: Active zone
OP: Measuring segment overflow prevention OP
L: Level
The measuring range is limited by the active measuring segment OP. If the level reaches the
measuring segment OP, the output signal jumps to its maximum value (20mA / 10V).
The position of the measuring segment OP does not have any influence on the gradient of the
curve.
u [SEL2] = [LEVL]
