E11775 E11847 ProcessLine module
6
4 Installation
u Disconnect power before installation.
u Select a flat mounting surface with sufficient stability.

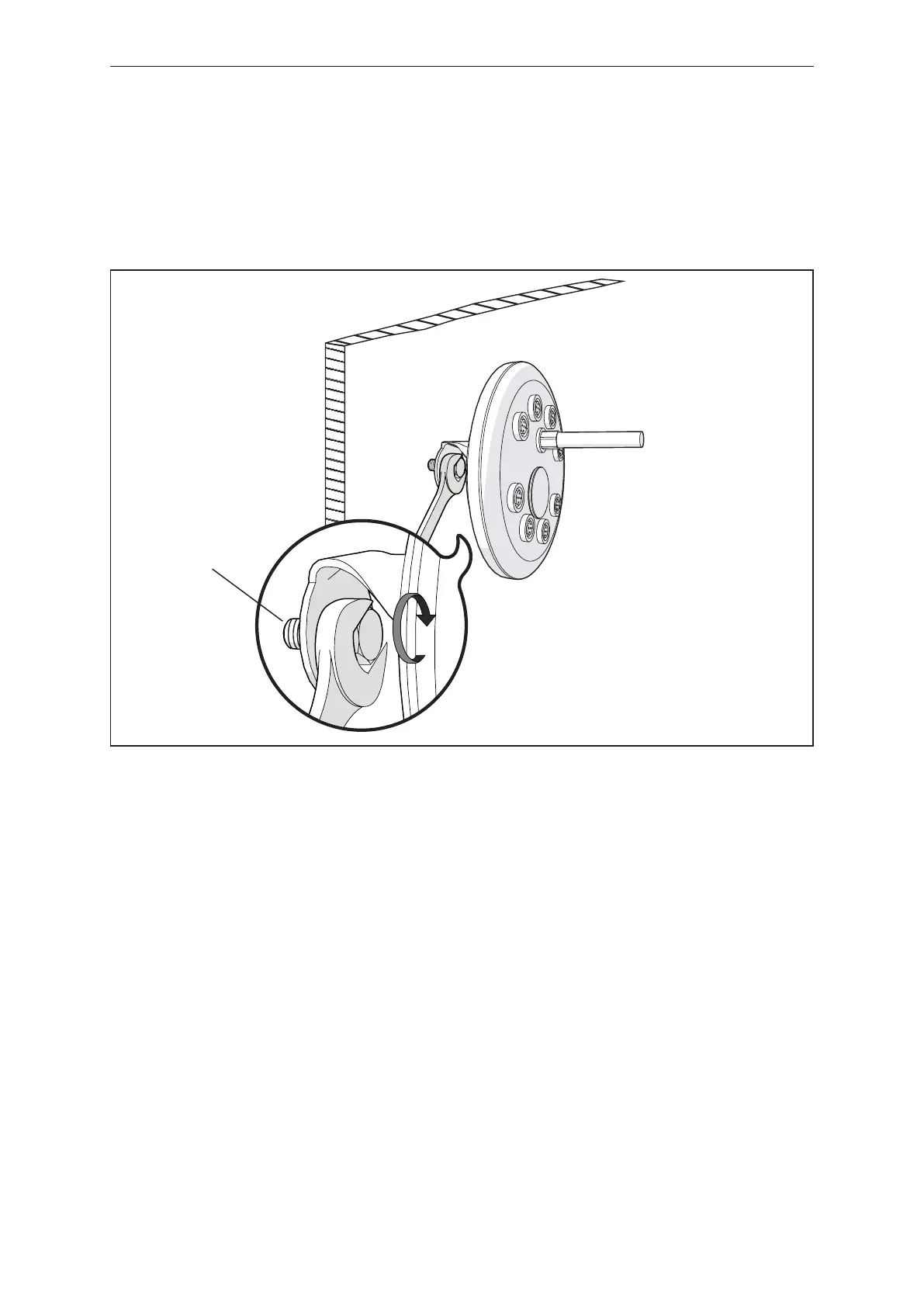

u Fasten the lower part on the mounting surface using the mounting device.
u Select the screw (Ø 8 mm) / tightening torque suitable for the mounting surface and mounting
device.
Ø 8 mm
u Alternative fixing
Weld the lower part to the tabs on a suitable mounting surface.
This is the responsibility of the system manufacturer. (Observe the material characteristics, limit the
heat input into the device during the welding process, protect the device and the seals from damage
caused by the welding process).
4.1 General notes on wiring
The threaded connections in the device correspond to the M12 standard. To ensure compliance with
the specified protection rating, only cables that comply with this standard may be used. In the case of
self-assembled cables, the system manufacturer is responsible for the protection rating.
u Use connectors with gold-plated contacts.
u During installation, place the connectors vertically so that the coupling nut will not damage the
thread.
u Observe the coding of the connectors during installation.
If sockets in the device:
u Tighten the cable plug using 1.3 ± 0.1Nm.
u Cover unused connections with protective covers. Tightening torque: 1.3 ± 0.1Nm
u Provide all outgoing cables with suitable strain relief after a maximum of 500mm. Observe the
minimum bending radius of the cables (Ò information from the cable manufacturer).
