DTI801 DTI901 DTI911 DTI921
16

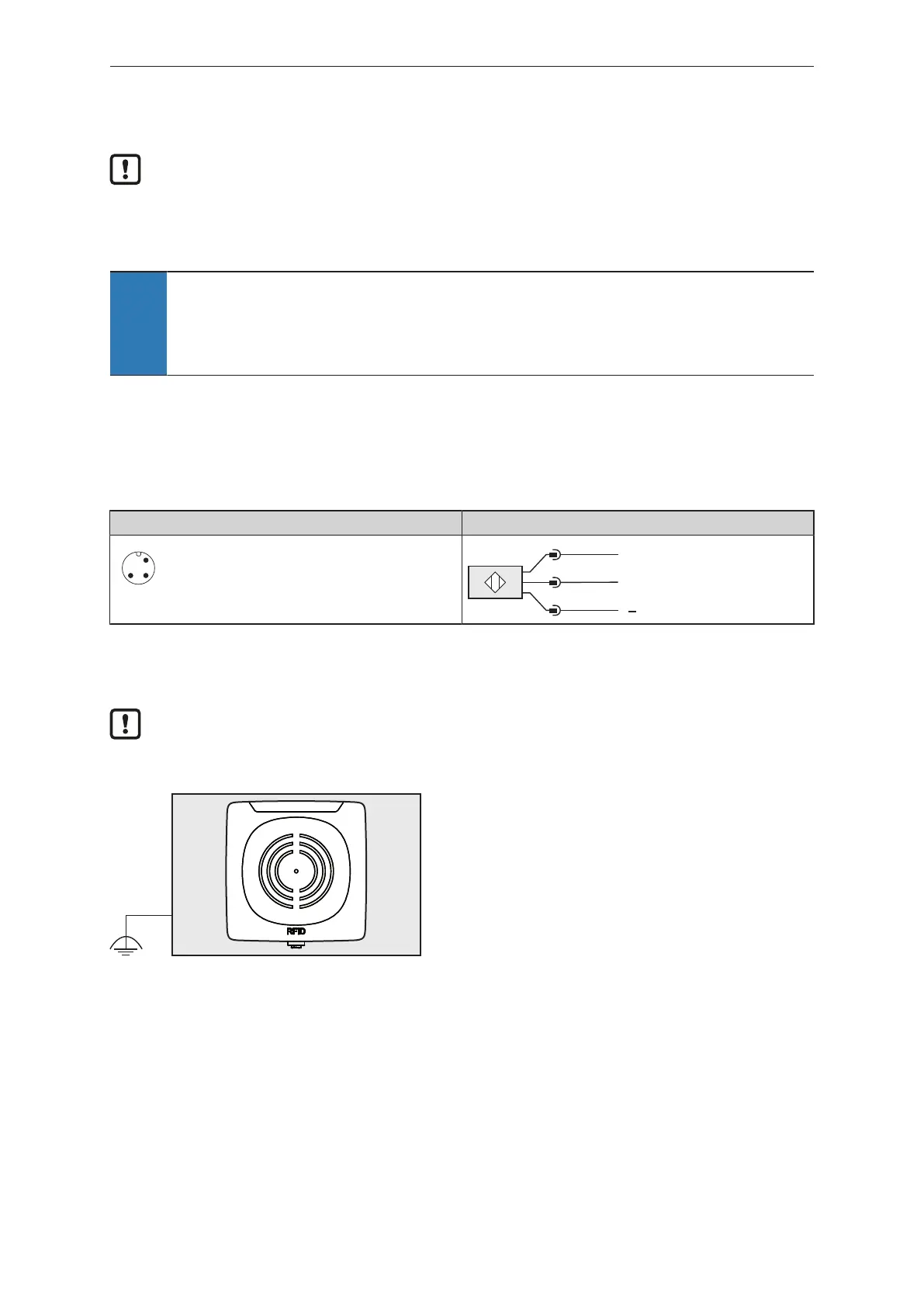

7 Electrical connection
The device must be connected by a qualified electrician.
Device of protection class III (PC III).
The electrical supply must only be made via PELV/SELV circuits.
u Disconnect power before connecting the device.
ATTENTION
The IP rating indicated in the data sheet is only guaranteed if the M12 connectors are firmly
screwed. The device can be damaged by insufficiently tightened M12 connectors.
u Screw the M12 connector to the device applying 1 to 1.5 Nm.
7.1 Wiring
u Connect the device to an IO-Link master using a M12 connection cable.
w Voltage is supplied via the IO-Link master.
Pin assignment Wiring
4
1
3
L
+
1
3
4
L
IO-Link
7.2 Connecting the functional earth
For trouble-free operation:
u Connect the device to an earth potential free from external voltage.
Connect the mounting plate to functional earth.
Fig.2: Mounting plate with mounted device
When the device is mounted on a mounting plate:
u Connect one of the 4 mounting bolts on the back of the device to the mounting plate.
u Connect the mounting plate to an earth potential free from external voltage.
