CR3122 ISOBUS gateway
8
6 Electrical connection
The unit must be connected by a qualified electrician.
u Observe the national and international regulations for the installation of electrical equipment.
u Disconnect power.
u Connect the unit as follows:
2
1
3
1 2
4
5
4
2 1
3
5
ISOBUS CAN

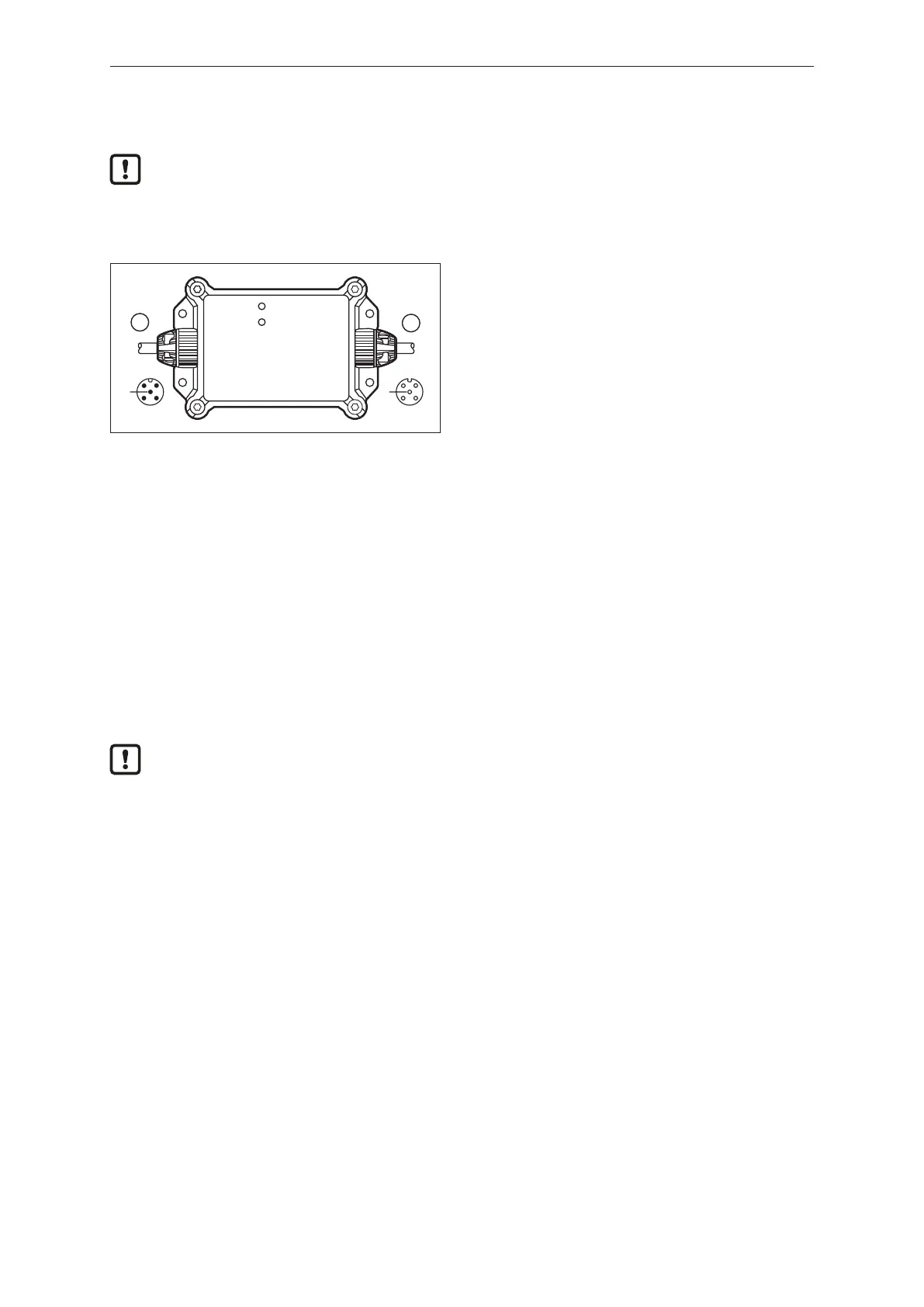

Fig.2: Electrical connection
1: 5-pole M12 connector → ISOBUS 2: 5-pole M12 socket → CAN bus
• Pin 1: not used
• Pin 2: VBB
• Pin 3: GND
• Pin 4: CAN_H
• Pin 5: CAN_L
• Pin 1: not used
• Pin 2: not used
• Pin 3: not used
• Pin 4: CAN_H
• Pin 5: CAN_L
6.1 Connection accessories
More information about available accessories at www.ifm.com
6.2 Connection technology
Observe all notes on connection technology.
u Note the device label.
u Use M12 connectors with gold-plated contacts.
u The M12 connection parts in the device comply with the ingress resistance requirements of the
standard EN 61076-2-101. To adhere to the protection rating, only cables certified to this standard
must be used. The system architect undertakes to ensure the ingress resistance of cables they
have cut to length.
u Carry out the fitting according to the indications of the cable manufacturer. The permitted maximum
is 10 Nm.
u During installation, place the M12 connector vertically so that the coupling nut will not damage the
thread.
