ISOBUS gateway CR3122
17
Visualisation
example:
0.320
Value 1
0.310
Value 2
[Unit 1]
[Unit 2]
Title Nm In Long
1
3
4
Page 1
1
2
3
5
4
6
1
3
4
Page 2
1
2
3
5
4
6
Title Button
Value 1
Value 2
15.0
25.0
Title Nm In
0.320
Value 1
0.310
Value 2
[Unit 1]
[Unit 2]
Title Nm In Long
8.2.8 Defining the output of numerical values
The function module FB_FunctionCreator_NumericOutput defines the display of simple numerical
values for a specific data mask (page). A maximum of 6 of these objects can be placed in a data
mask.
The following data can be configured using the input parameters:
• Required data mask (page)
• required slot
• Title
• Number of output fields (max. 2)
• Number of decimal places for the corresponding output field
• Current value for the corresponding output field
• Name of the corresponding output field

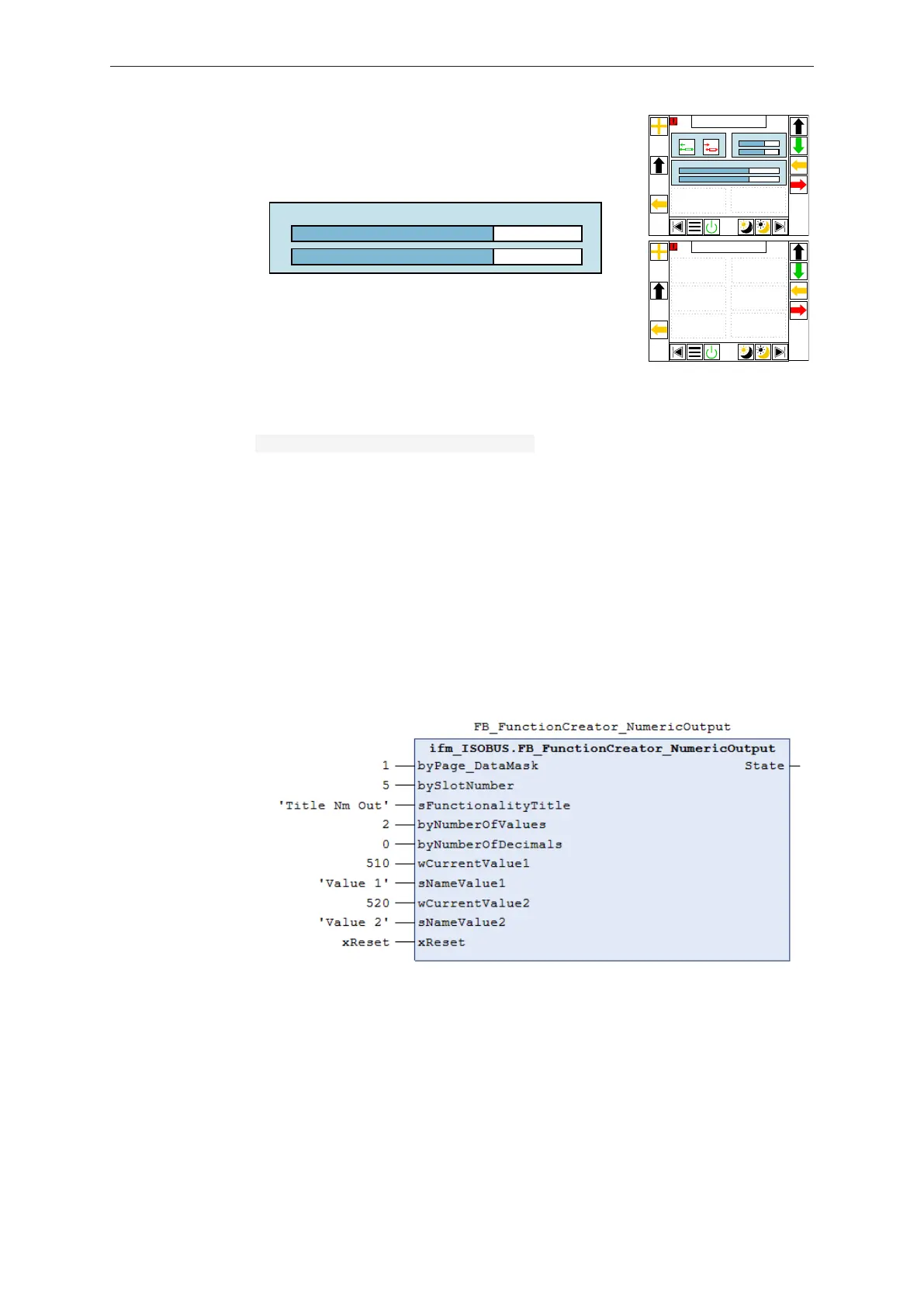

Configuration example
in CODESYS:
