CR3121 ISOBUS gateway
16
Visualisation
example:
Value 1
Value 2
15.0
25.0
Title Nm In
1
3
4
Page 1
1
2
3
5
4
6
1
3
4
Page 2
1
2
3
5
4
6
Title Button
Value 1
Value 2
15.0
25.0
Title Nm In
8.2.7 Defining numeric input fields with units
The function module FB_FunctionCreator_NumericInput_Long defines numeric input fields with
unit specification for a specific data mask (page). A maximum of 3 of these objects can be placed in a
data mask (slots 1, 3 and 5). The visualisation element also occupies the adjacent slot on the right.
The following data can be configured using the input parameters:
• Required data mask (page)
• Required slots
• Title
• Number of input fields (max. 2)
• Number of decimal places for the corresponding input field
• Initial value for the corresponding input field
• Name of the corresponding input field
• Unit for the corresponding input field
The output parameter adw_InputValues contains the entered values.

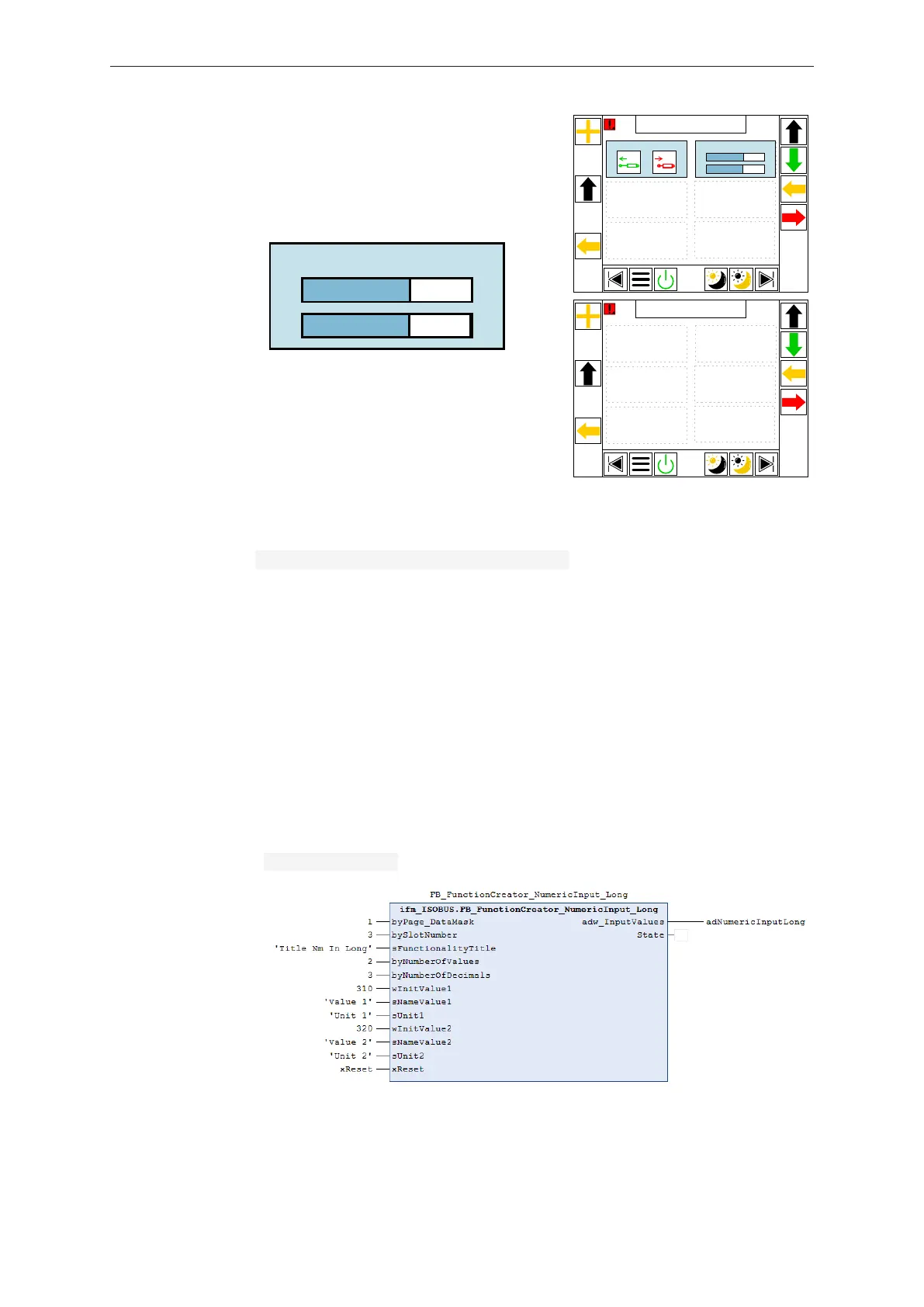

Configuration example
in CODESYS:
