AL5121 IO-Link input/output module
8
4.4.1.1 Debouncing
The input debouncing filter suppresses noise signals caused by mechanical switches, contacts or
relays. The filter provides the input signals at the filter output with a delay (debounce time). All signals
shorter than the set debounce time are ignored by the filter.

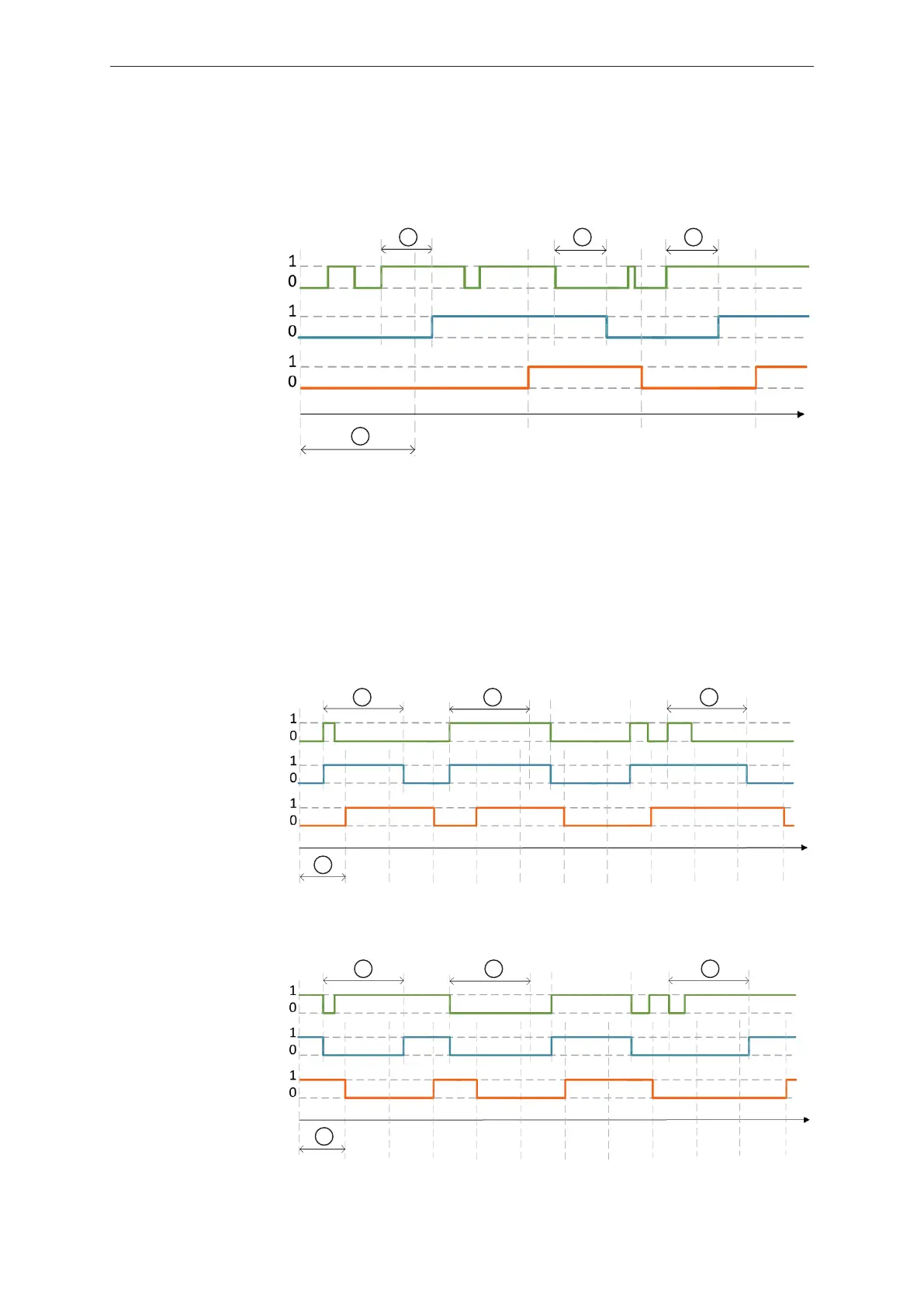

Time diagram debounce filter:
t
1 1 1
2
digital input
Debounce filter output
IO-Link
process data
1: Debounce time
2: Cycle time
4.4.1.2 Hold
This filter stretches short input pulses. The filter is configured via the following parameters:
• Hold time: pulse duration to which short pulses are to be stretched. Pulses that are present for a
longer time than the hold time are not stretched.
• Hold status: input level to be stretched (HIGH or LOW)
Time diagram hold filter with hold status HIGH:
t
1 1 1
2
Filter hold
output
IO-Link
process data
Filter hold
input
1: Hold time
2: Cycle time
Time diagram for hold filter with hold status LOW:
t
1 1 1
2
Filter hold
input
Filter hold
output
IO-Link
process data
1: Hold time
2: Cycle time
