AL5121 IO-Link input/output module
10
5 Installation
u Disconnect the power of the machine before installation.

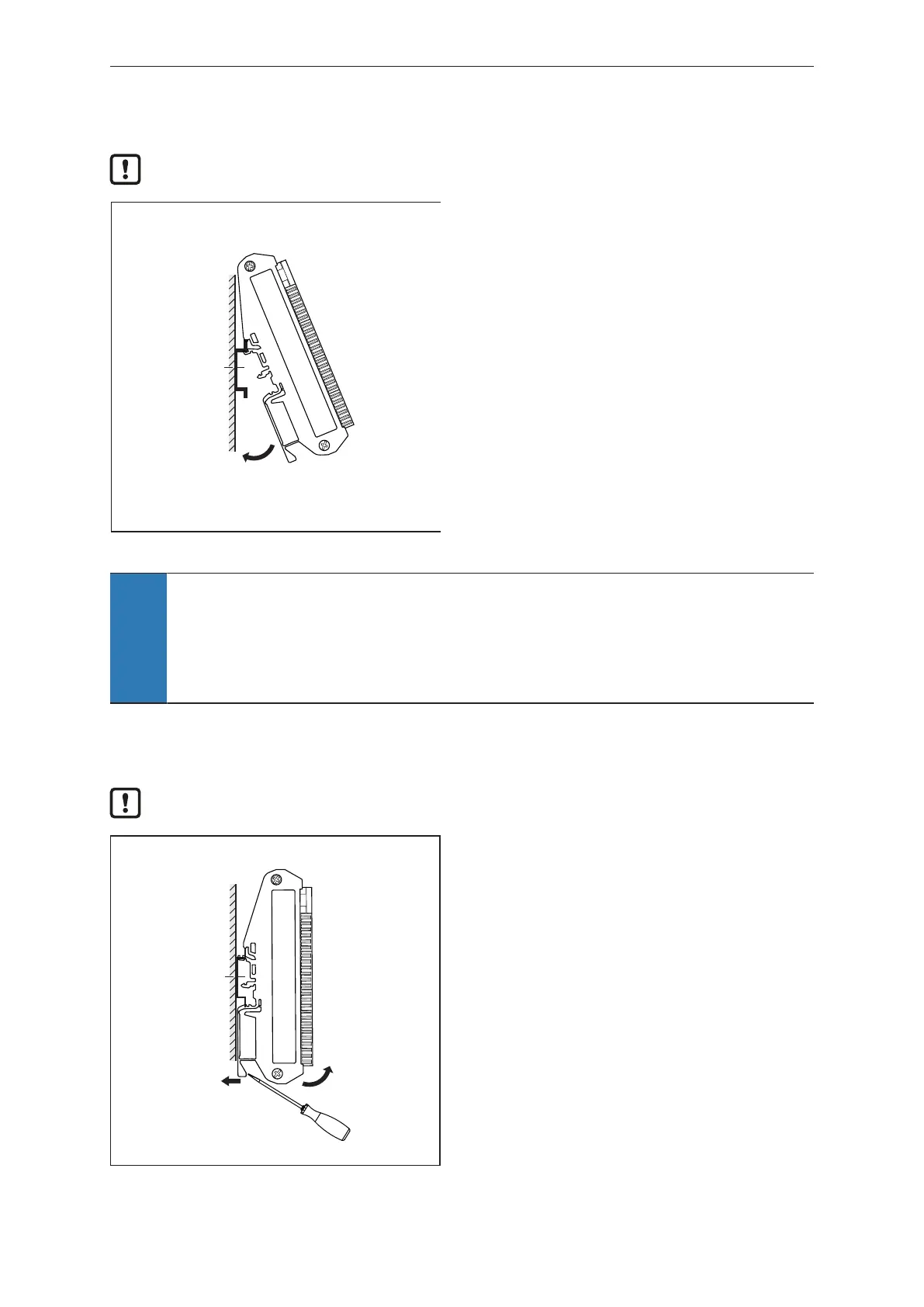

Fig.1: Installation of the unit
Integrate the device into the control cabinet. The
following has to be observed:
u Attach the device to a DIN rail (TH35, GS32
or TS15) over a length of at least 50 mm
using the bracket on the back.
u Mounting on a horizontal DIN rail is
recommended.
u Leave enough space (≥ 50 mm) between the
device and the top and bottom of the control
cabinet to enable air circulation and to avoid
excessive heating.
ATTENTION
If units are mounted side by side, inadmissible heating may occur between the units.
w Malfunction / damage is possible.
u Take into account the internal heating of all devices when mounting different devices
side by side and observe the environmental conditions for each device.
5.1 Removal
u Disconnect the power of the machine before removal.
Fig.2: Removal of the device
Removing the device from the control cabinet.
The following has to be observed:
u Remove the terminals from the device.
u To remove, pull down the retaining latch with
a screwdriver.
