Remote I/O module 8DO 8DI AL4322
35
9.2 IoT-Core Visualizer
The IoT Core Visualizer provides a graphical user interface to access the functions of the ifm IoT
Core.
9.2.1 Starting the ifm IoT Core Visualizer
To start the IoT Core Visualizer:
Requirements:
ü The laptop / PC is connected directly or via a suitable network coupling element (e.g. switch) to a
EtherNet/IP port (XF1 / XF2) of the device.
ü EtherNet/IP interface has been configured.
u Start web browser.
u Go to the following URL: http://<ip-address> (e.g. http://192.168.0.10 )

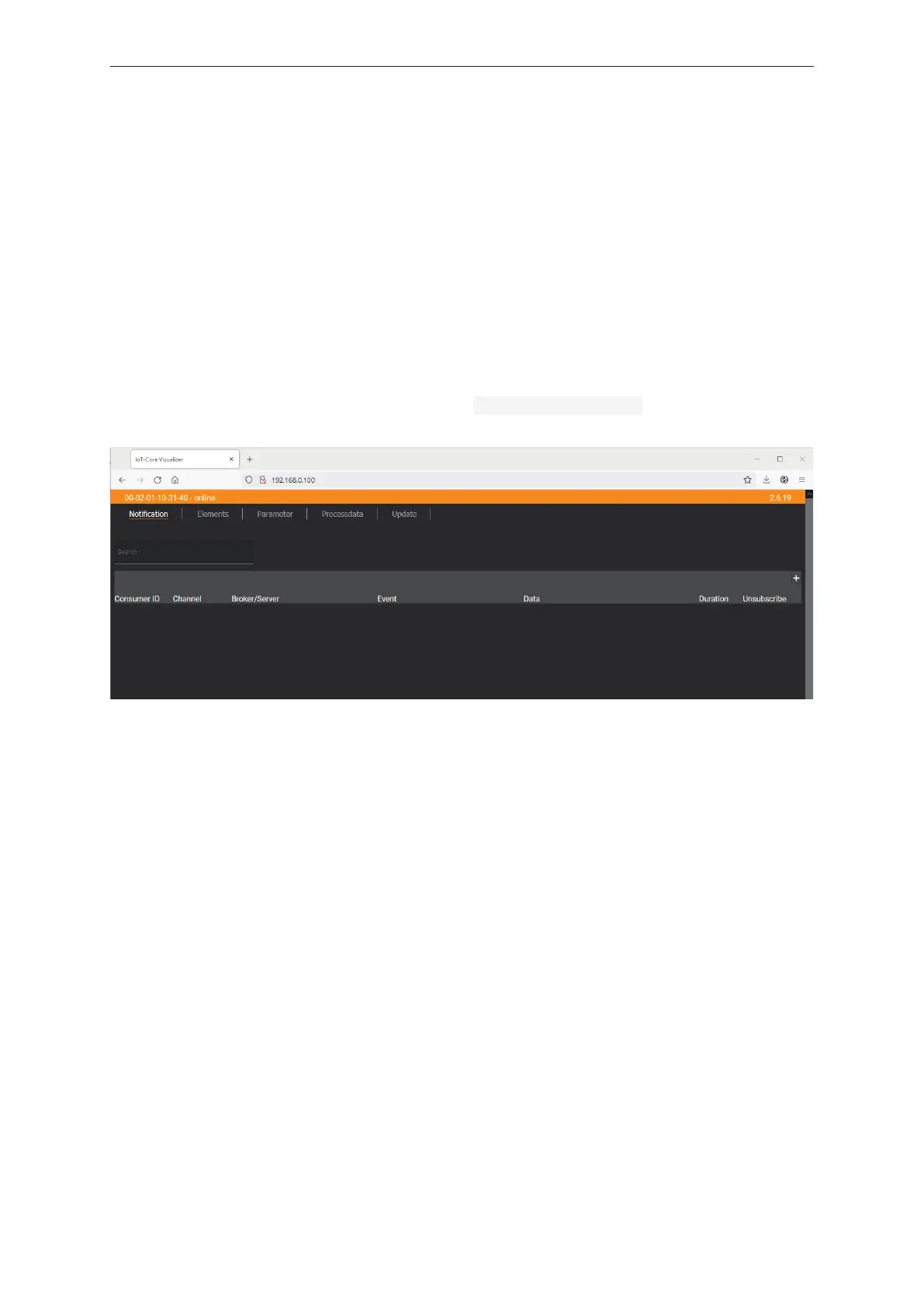

w The web browser displays the start page of the IoT Core Visualizer.
The navigation menu gives the user access to the following functions:
• [Notification]: No function
• [Elements]: Searching for elements of the IoT Core (Ò/36)
• [Parameter]: Configuring the device (Ò/37)
• [Processdata]: Accessing the process data (Ò/43)
• [Update]: Update firmware (Ò/48)
