Remote I/O module 8DO 8DI AL4242
17
0
1
SSC
1 1
0
1
SSC
0
1
SSC
1
2
1
2
SP1
SP2
Main
Batch
t

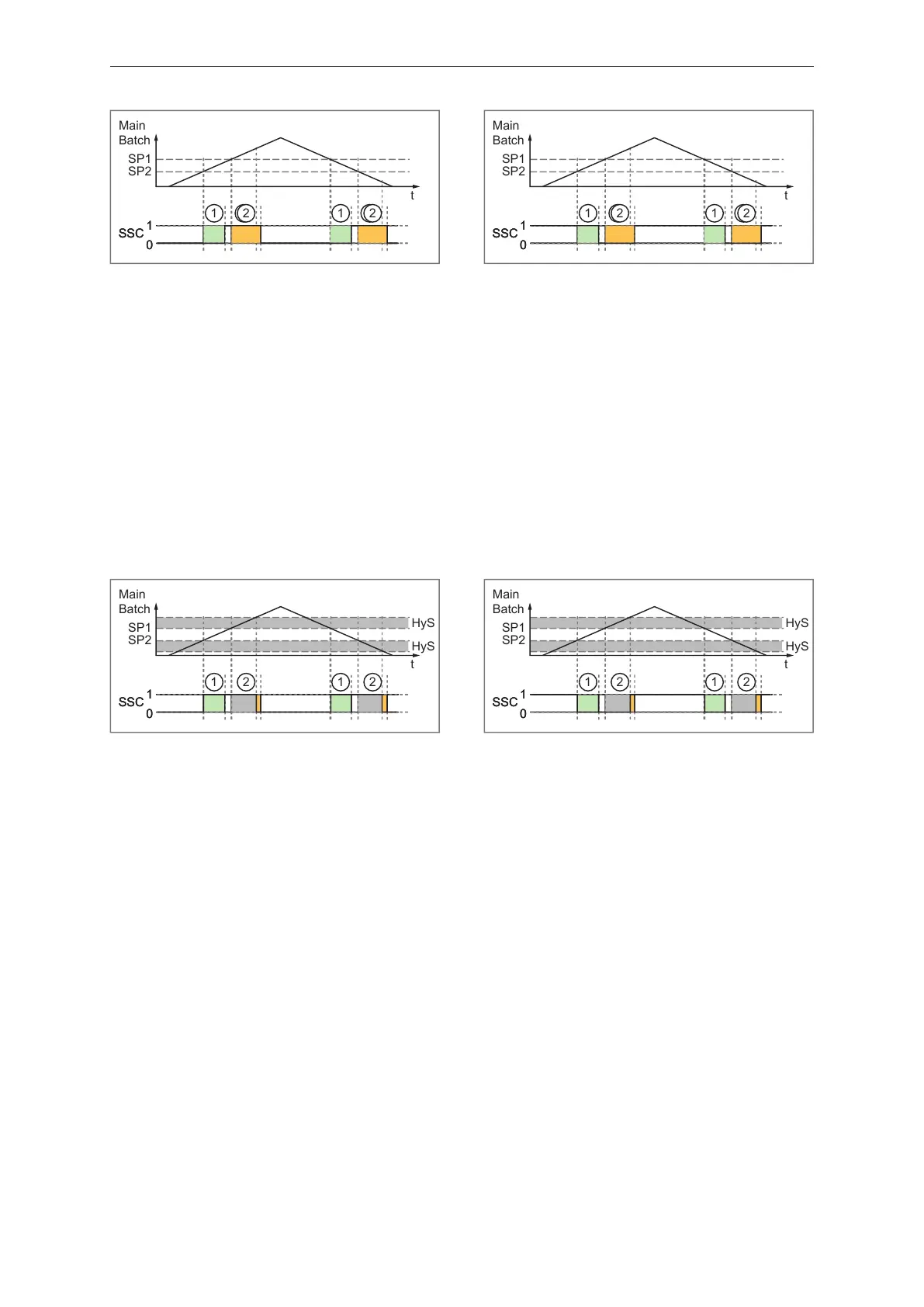

Fig.15: Window mode (high-active) with switch delay (1)
and reset delay (2)
0
1
SSC
1 1
0
1
SSC
0
1
SSC
1
2
1
2
SP1
SP2
Main
Batch
t
Fig.16: Window mode (low-active) with switch delay (1) and
reset delay (2)
Using the hysteresis function, the switching thresholds of switch points SP1 and SP2 can be equally
increased or decreased.
Switching:
• Increasing counter value reaches SP2
• Decreasing counter value reaches SP1
Switching back:
• Increasing counter value reaches SP1 + HyS
– if SP1 + HyS > HyS
max
, then reset at HyS
max
• Decreasing counter value reaches SP2 - HyS
– If SP2 – HyS < 0, then reset at 0
0
1
SSC
0
1
SSC
1
2
1
2
0
1
SSC
SP1
SP2
Main
Batch
t
HyS
HyS
Fig.17: Window mode (high-active) with hysteresis
0
1
SSC
0
1
SSC
1
2
1
2
0
1
SSC
SP1
SP2
Main
Batch
t
HyS
HyS
Fig.18: Window mode (low-active) with hysteresis
4.8 Modbus TCP
The device offers the following Modbus TCP functions:
• Device profile: Modbus TCP Server (message mode)
• 2-port switch for access to Modbus TCP interface (X21 / X22)
