AL4042 Remote I/O module 16 DI
18

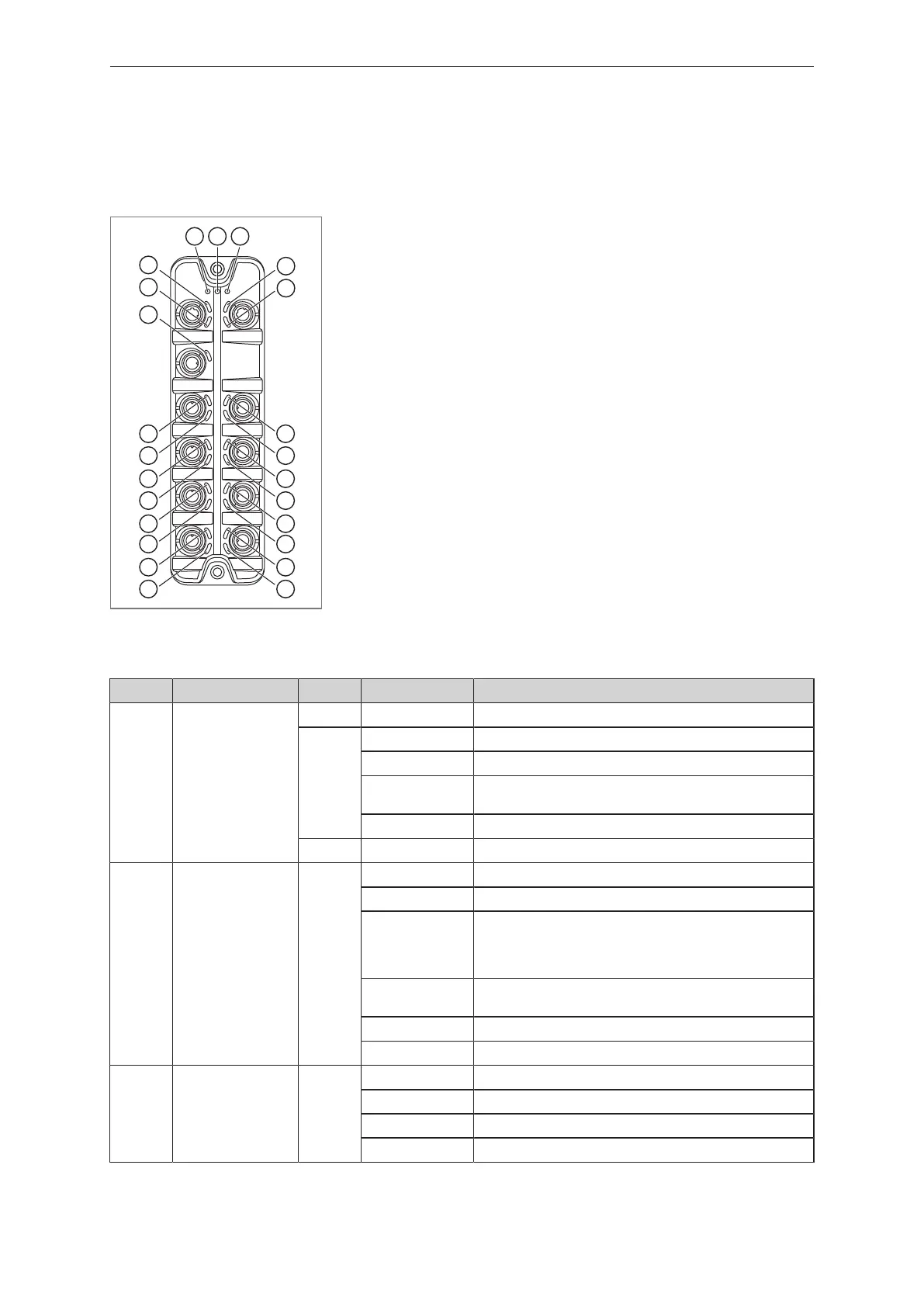

7 Operating and display elements
7.1 LEDs
2 3
4
5
8
1
4
5
6
6
6
66
6
6
6
7
7
7
77
7
7
7
1: Status: RDY
2: Status: ERR
3: Status: RUN
4: Modbus TCP: LNK
5: Modbus TCP: ACT
6: Process connection: DI1
7: Process connection: DI2
8: Voltage supply: US
7.1.1 Status
LED Description Colour State Description
RDY Gateway status - Off Not active or reboots
Green Flashes 3s (1Hz) DCP signalling service initiated via fieldbus
Flashes (5Hz) Error
Flashes (200ms
on, 800ms off)
Firmware update running
On OK
Red On Error during firmware update (e.g. firmware not compatible)
ERR Error indication Red Off No error
Flashes (10Hz) Boot error
flashes (200 ms
on, 200 ms off,
200 ms on, 1000
ms off)
Watchdog error (Modbus TCP or process data)
flashes (200ms
on, 1000ms off)
local error
Flashes (2.5Hz) invalid configuration
On Communication error
RUN Modbus TCP state
(state machine)
Green Off not ready
Flashes (1Hz) ready, but not yet configured
Flashes (5Hz) waiting for connection
On connection established
