IO-Link master with EtherCAT interface AL1430
31
9.2 IoT Core Visualizer
The IoT Core Visualizer provides a graphical user interface to access the functions of the ifm IoT
Core.
9.2.1 Starting the IoT Core Visualizer
Access to the functions of ifm IoT Core is only possible if the Ethernet over EtherCAT (EoE)
protocol is activated and configured on the EtherCAT master and the EtherCAT slave.
u Observe the notes: Using Ethernet over EtherCAT (EoE) (Ò/47)
To start the IoT Core Visualizer:
Requirements:
ü The laptop / PC is connected directly or via a suitable network coupling element (e.g. switch) to a
EtherCAT port (XF1, XF2) of the device.
ü Ethernet over EtherCAT (EoE) has been activated and configured.
ü The device has a valid IP configuration.
u Start web browser.
u Go to the following URL: http://<ip-address>/web/subscribe (e.g. http://192.168.82.100/web/
subscribe )

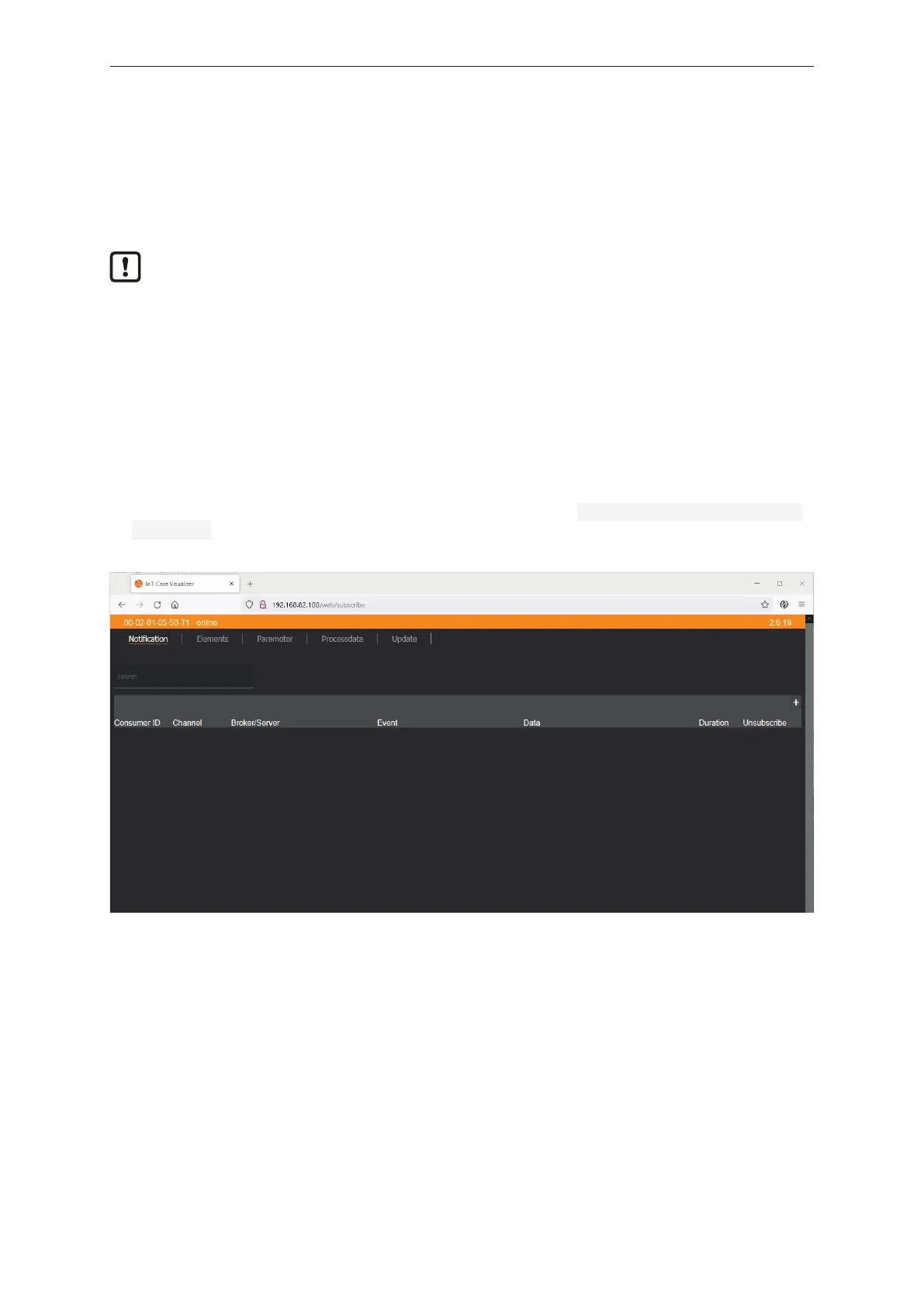

w The web browser displays the start page of the IoT Core Visualizer.
The navigation menu gives the user access to the following functions:
• [Notification]: Not available
• [Elements]: Searching for elements of the IoT Core (Ò/32)
• [Parameter]: Configuring the device (Ò/33)
• [Processdata]: Accessing the process data (Ò/40)
• [Update]: Update firmware (Ò/45)
