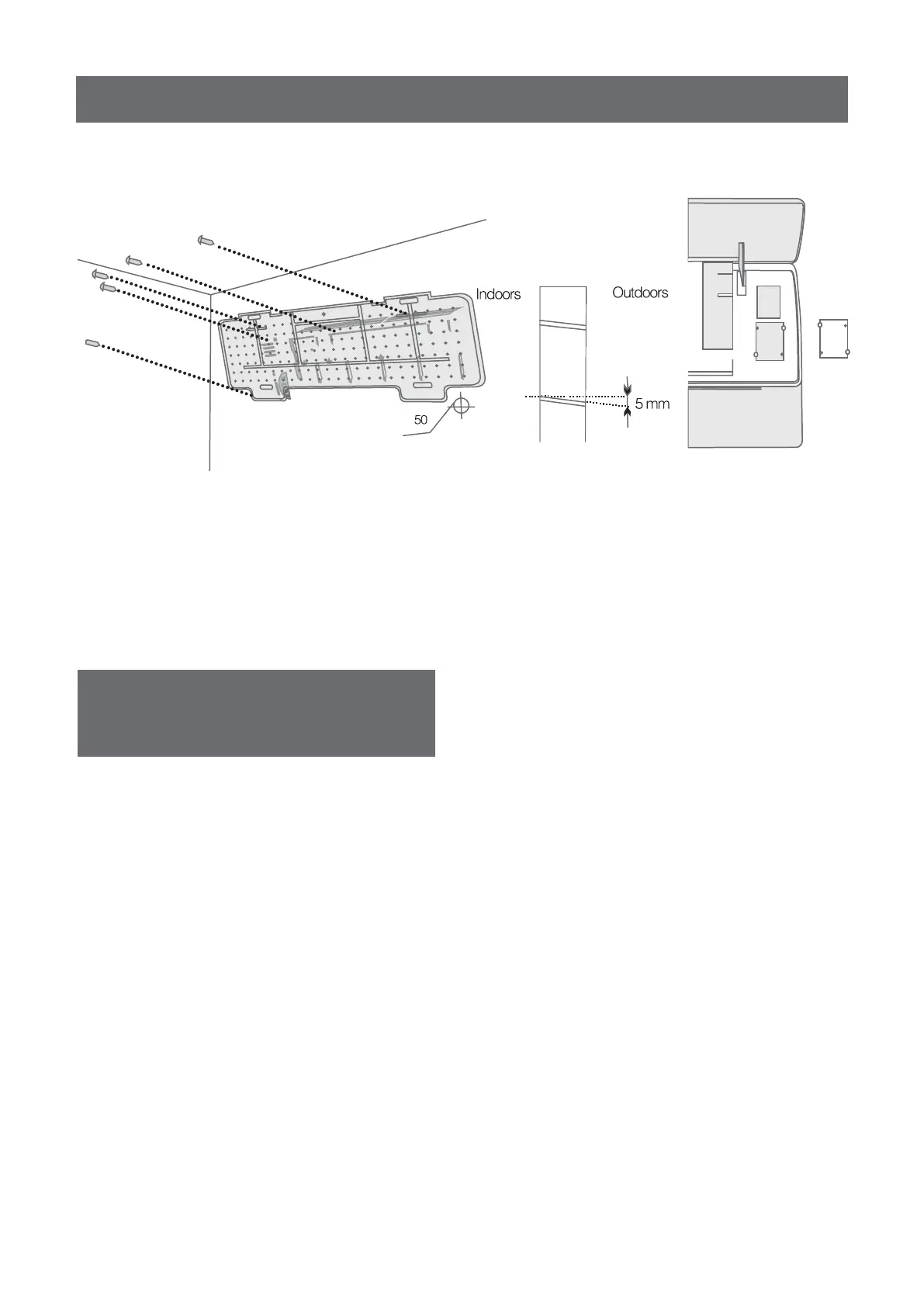

• The connection must have sufficient
earthing.
• If the power cord is damaged, it must
be replaced by authorized service
personnel only.
NOTE:
The cable wires have been connected to the
main PCB of the indoor unit by the manufacturer
according to the model without terminal block.
Refrigerant piping connection
• The piping can move in 3 directions as
indicated by numbers in the figure.
• When the piping is moving in direction
1 or 3, cut a notch along the groove on
the side of the indoor unit with a cutter.
• Move the piping in the direction of the
wall hole and bind the copper pipes, the
drain pipe and the power cables,
together with tape with the drain pipe
at the bottom, so that water can flow
freely.
Connecting the pipes
• Shape the connection pipe
• Do not remove the cap from the pipe
until connecting it, to prevent
dampness or dirt from entering it.
• If the pipe is bent or pulled too often, it
will become stiff. Do not bend the pipe
more than three times at one point.
• When extending the rolled pipe,
straighten the pipe by unwinding it
gently as shown in the figure.
Connections to the indoor unit
• Remove the indoor unit pipe cap.
Check that there is no debris inside.
• Insert the flare nut and create a flange
at the extreme end of the connection
pipe.
• Tighten the connections by using two
wrenches working in opposite
directions.
Indoor unit condensed water drainage
• Place the drain hose below the piping,
taking care not to create siphons.
• The drain hose must slant downwards
to aid drainage.
NOTE: The cable wires have been connected to the
main PCB of the indoor unit by the manufacturer
according to the model without terminal block.
