Part 1 - Introduction
11
• Factory Reset during system booting: All of the encoder’s settings are now at the original settings it had when
it left the factory.
• Factory Reset during system operating: The other settings except for system log are now at the original
settings it had when it left the factory.
• Factory Reset via the IDIS Discovery program (Without network settings): The other settings except for
system log and network settings are now at the original settings it had when it left the factory.
• Factory Reset via the IDIS Discovery program (Including network settings) : The other settings except for
system log are now at the original settings it had when it left the factory.

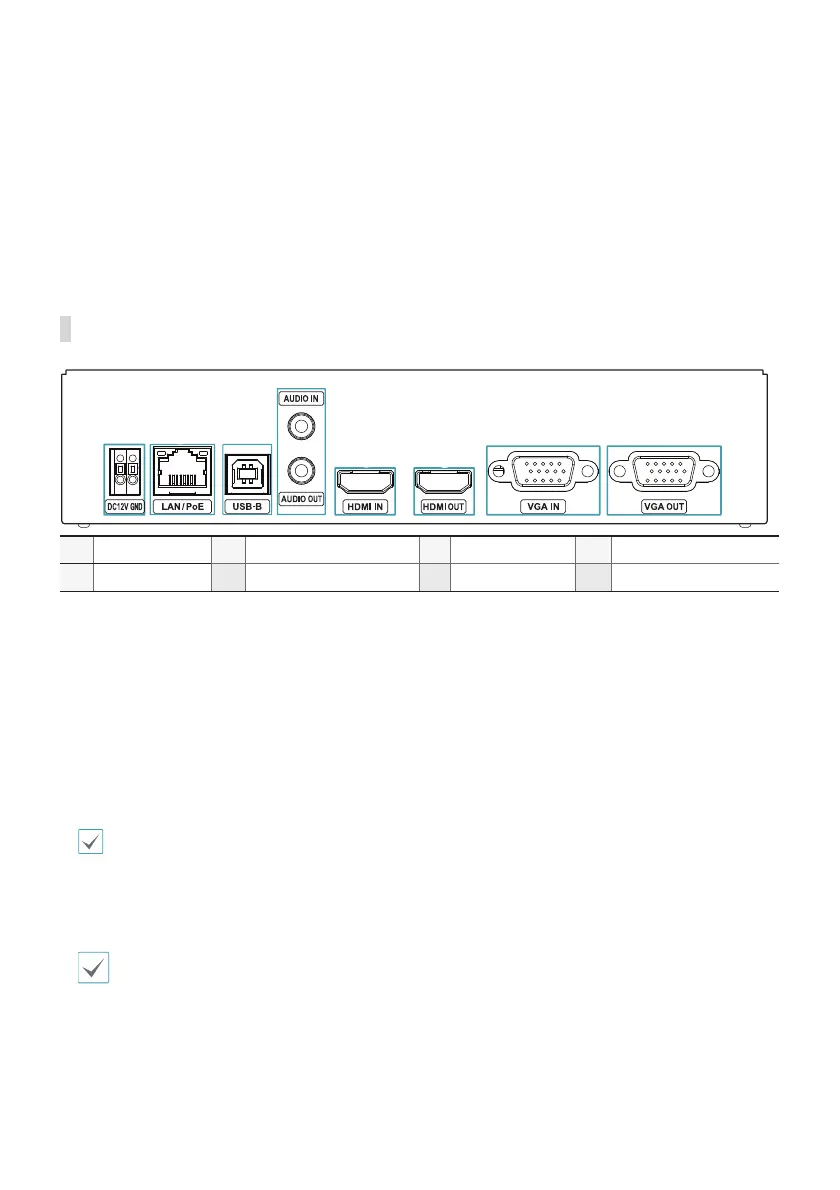

Rear Panel
1
2 3
4
5
6
7
8
1
DC12V In
2
Network + PoE Power In
3
USB Port
4
Audio In/Out
5
HDMI In
6
HDMI Out
7
VGA In
8
VGA Out
1 DC12V In
Connect the two wires of the power adapter to these ports. Be careful not to cross the DC12V and ground (GND)
wires. Booting will commence once connected to a power supply.
2 Network + PoE Pow
er In
Connect a Cat5e cable with an RJ-45 jack. The video encoder is capable of connecting to networks via an Ethernet
connector and also receives power through the LAN cable from the NVR and switch hub supporting the PoE
function.
3 USB-B
Connect to an USB port to remotely control device such as PC, POS and NVR, etc (keybaord/mouse method).
• When connecting to a device using Windows Operating System, do not remove the cable until the download of the
driver software is complete.
4 Audio In/Out
Upper 3.5mm stereo input and lower loop output (only the left side channel transmitts over the network).
When connecting a 3.5mm mono cable to the upper 3.5mm stereo input, the lower loop output may not work normally.
5 HDMI Input
Connect an HDMI output such as PC, POS and video recorder, etc. HDMI output signal is trasmitted through this video
encoder using the network port.
