18
Technical Glossary
Category 5e/6/7 (CAT 5e/6/7) Network Cabling
Category 5e/6/7 cable is commonly also referred to as CAT 5e or CAT 6 or CAT 7. This cabling is available
in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP
(Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible
toElectromagneticInterference(EMI).STPcablesincludeshieldingthecopperwiresandprovidesbetter
protectionagainstElectromagneticInterference(EMI).
USB 2.0 Cables
USB 2.0 cables have two distinct full-sized connectors. The Type A connector is used to connect the cable
from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB
cable to a USB device.
RJ45
The Registered Jack (RJ) physical interface is what connects the network cabling (CAT 5e/6/7) to the LEX and
REX. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as
the Ranger 2301 Series requires all four pairs of the cable. RJ45 connectors are sometimes also referred to as
8P8C connectors. Note that any given cable must be terminated using the same T568 scheme on both ends
to operate correctly.

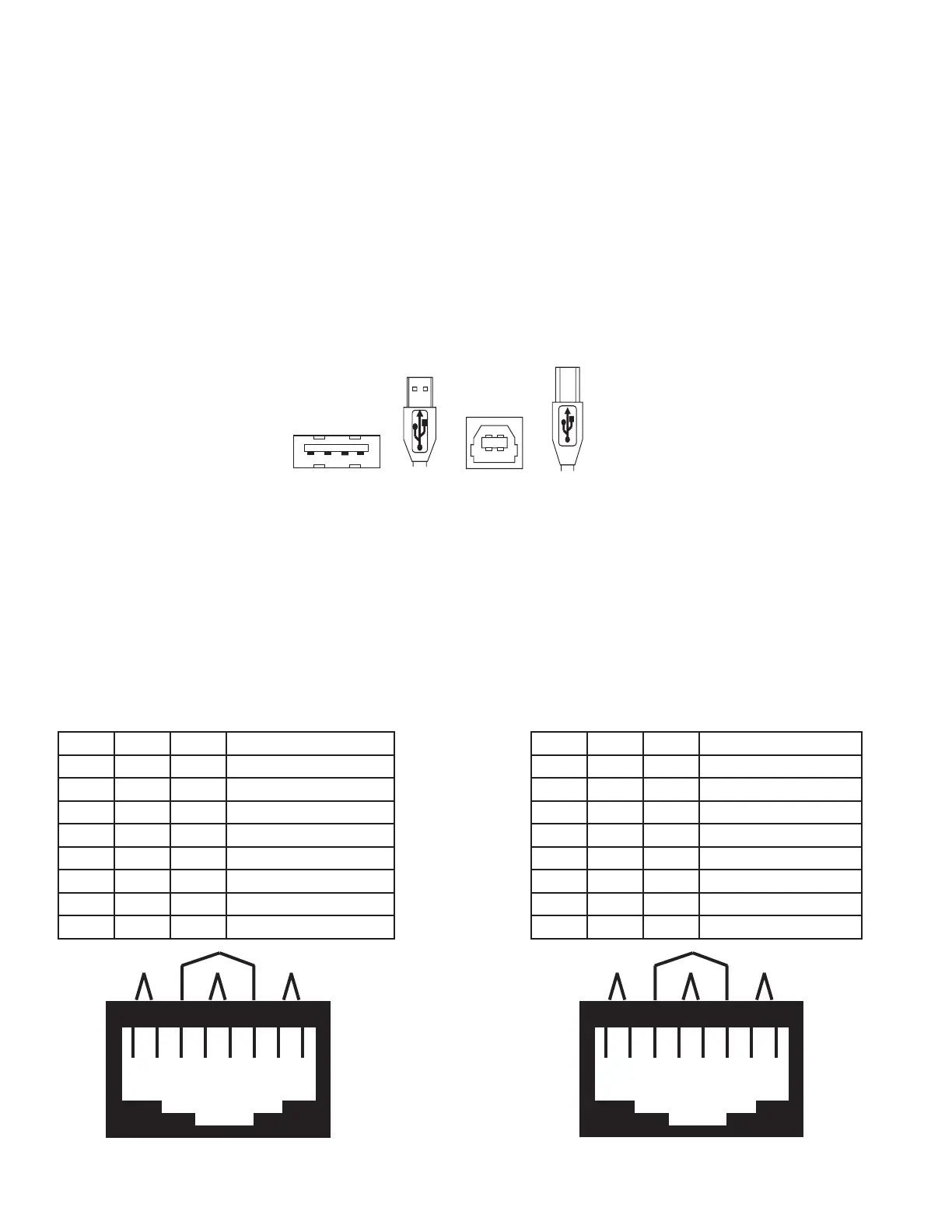

RJ45 Pin Positioning
Table 1 - T568A Wiring Table 2 - T568B Wiring
PIN PAIR WIRE CABLE COLOR PIN PAIR WIRE CABLE COLOR
1 3 1 WHITE/GREEN 1 2 1 WHITE/ORANGE
2 3 2 GREEN 2 2 2 ORANGE
3 2 1 WHITE/ORANGE 3 3 1 WHITE/GREEN
4 1 2 BLUE 4 1 2 BLUE
5 1 1 WHITE/BLUE 5 1 1 WHITE/BLUE
6 2 2 ORANGE 6 3 2 GREEN
7 4 1 WHITE/BROWN 7 4 1 WHITE/BROWN
8 4 2 BROWN 8 4 2 BROWN
Type A USB 2.0 Port Type B USB 2.0 PortType A USB 2.0
Connector
Type B USB 2.0
Connector
Pair 2
Pair 3Pair 1
Pair 4
1 2
3
4 5
6
7 8
W-G G W-O BL W-BL O W-BR BR
Pair 2
Pair 3Pair 1
Pair 4
1 2
3
4 5
6
7 8
W-O
O W-G
B W-BL
G W-BR
BR
