PANEL DESCRIPTION
q INTERNAL SPEAKER
Received audio is heard.
w VOLUME CONTROL [VOLUME] (p. 8)
Adjusts the audio output level.
e SELECTOR DIAL [SELECT]
Rotate to adjust the squelch threshold level, or se-
lect the operating channel, depending on the pre-
programming.
r POWER INDICATOR [POWER]
➥ Lights green on ‘A’ module’s indicator while the
repeater power is ON.
When a channel extension module is installed
(For IC-FR5100/IC-FR6100):
➥ Lights green on the selected module indicator,
‘A’ or ‘B,’ while the repeater power is ON.
➥ Lights orange on the un-selected module indica-
tor, ‘A’ or ‘B,’ while the repeater power is ON.
t TRANSMIT INDICATOR [TX]
Lights red while transmitting.
y BUSY INDICATOR [BUSY]
Lights green while receiving a signal, or when the
noise squelch is open.
About [PWR], [TX] and [BUSY] indicators
(For IC-FR5100/IC-FR6100):
‘A’ module's indicator corresponds to the original
module, and ‘B’ module's indicator corresponds to
the extended module.
u
MICROPHONE CONNECTOR [MIC]
This 8-pin modular jack accepts an optional micro-
phone.
KEEP the [MIC] connector cover attached to the
repeater when the microphone is not used.
q
i
q +8 V DC output (15 mA maximum)
w Output port for PC programming
e NC
r M PTT (Input port for TX control)
t Microphone ground
y Microphone input
u Ground
i Input port for PC programming
i POWER SWITCH [POWER]
➥ Push to turn ON the repeater power.
➥ Hold down for 3 seconds to turn OFF the re-
peater power.
When a channel extension module is installed
(For IC-FR5100/IC-FR6100):
➥ While the repeater power is turned ON, push
to select the desired module to operate the re-
peater as a base station.
•Thepowerindicatorofthe selectedmodule unit
lights green.
o DEALER-PROGRAMMABLE KEYS
Desired functions can be programmed for each key
by your dealer.
Ask your dealer for details.
•Becausethesekeysareprogrammable,theirfunctions
are unique to each unit.
P
0
P
1
P
2
P
3
P
4
qw e
i uo
Function
display
y
t
r

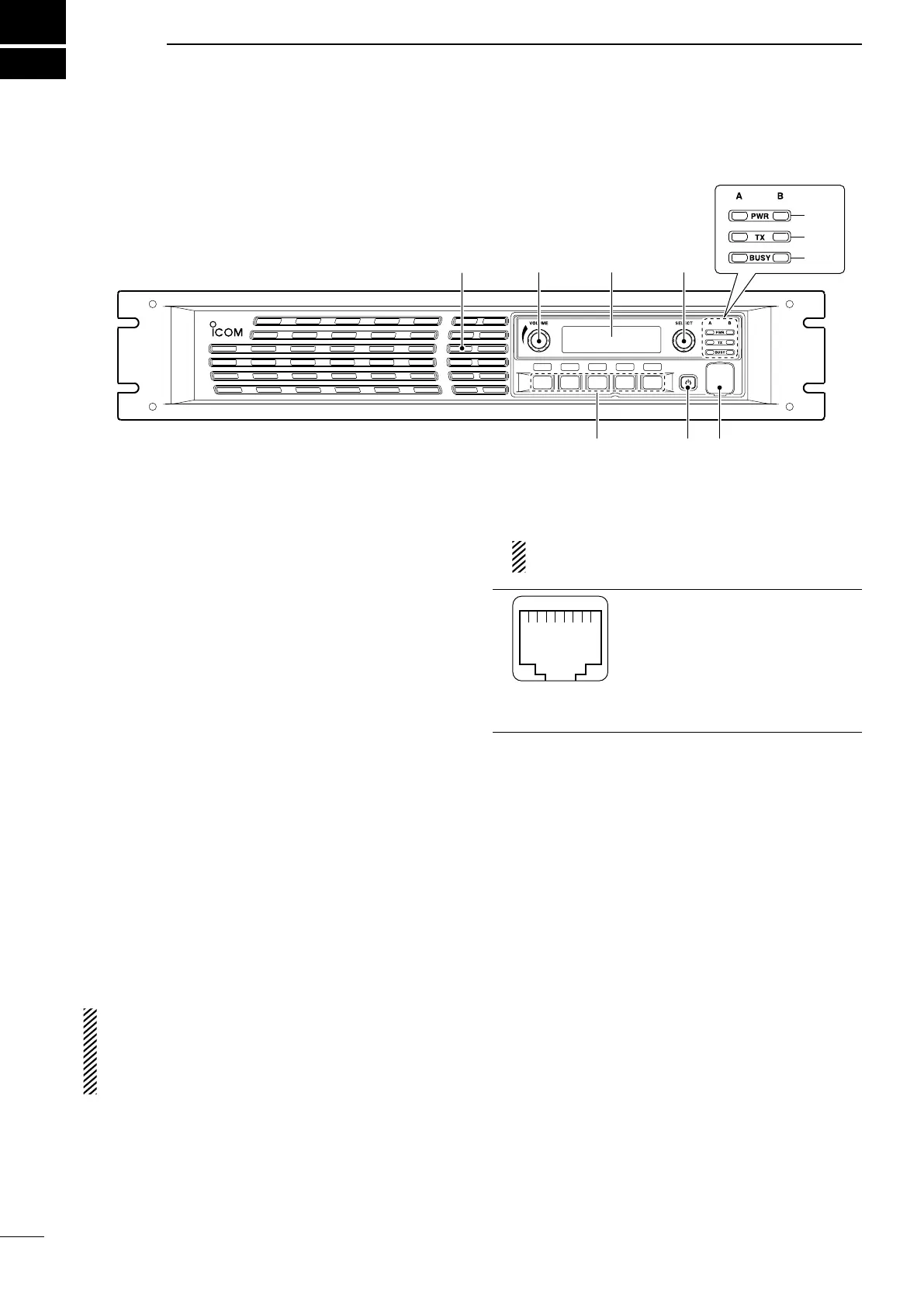

■ Front panel
