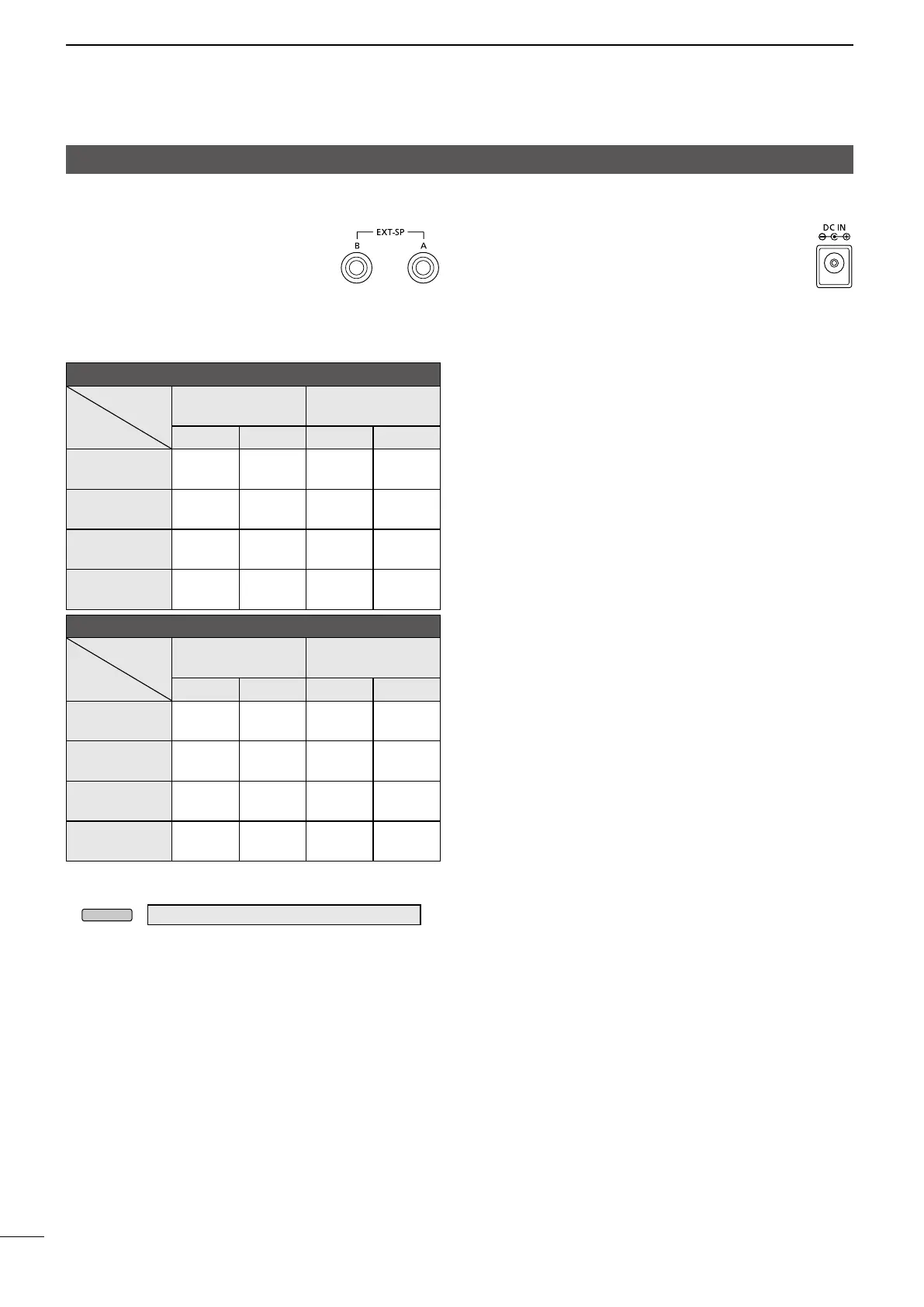

13-7
BASIC MANUAL
13
CONNECTOR INFORMATION
D [EXT-SP A]/[EXT-SP B]
Connect to external speakers.
(3.5 mm (1/8 inch))
• Output impedance: 4 ~ 8 Ω
• Output level:
More than 2 W
(8 Ω load, 10% distortion)
About audio output settings
(When [PHONES] is not in use)
Speaker MAIN/SUB Mix: OFF
Output
Connection
Output from the
internal speaker
Output from the
external speaker
L R
EXT-SP A EXT-SP B
Internal
speaker only
MIX* MIX* N/C N/C
External
speaker (A + B)
OFF OFF MAIN SUB
External
speaker (A)
OFF SUB MAIN N/C
External
speaker (B)
MAIN OFF N/C SUB
Speaker MAIN/SUB Mix: ON
Output
Connection
Output from the
internal speaker
Output from the
external speaker
L R
EXT-SP A EXT-SP B
Internal
speaker only
MIX MIX N/C N/C
External
speaker (A + B)
OFF OFF MIX MIX
External
speaker (A)
OFF OFF MIX N/C
External
speaker (B)
MIX OFF N/C MIX
MIX: Outputs the audio from both Main and Sub bands.
L You can change the setting in the following item.
MENU
»
SET > Function > Speaker MAIN/SUB Mix
* When Dualwatch is ON, the internal speaker L outputs
the audio from the Main band, and R outputs the audio
from the Sub band.
D [DC IN]
Connect the supplied power cable to an AC
receptacle.
