7-2
BASIC MANUAL
ANTENNA TUNER OPERATION
7
7
About the Antenna memory settings

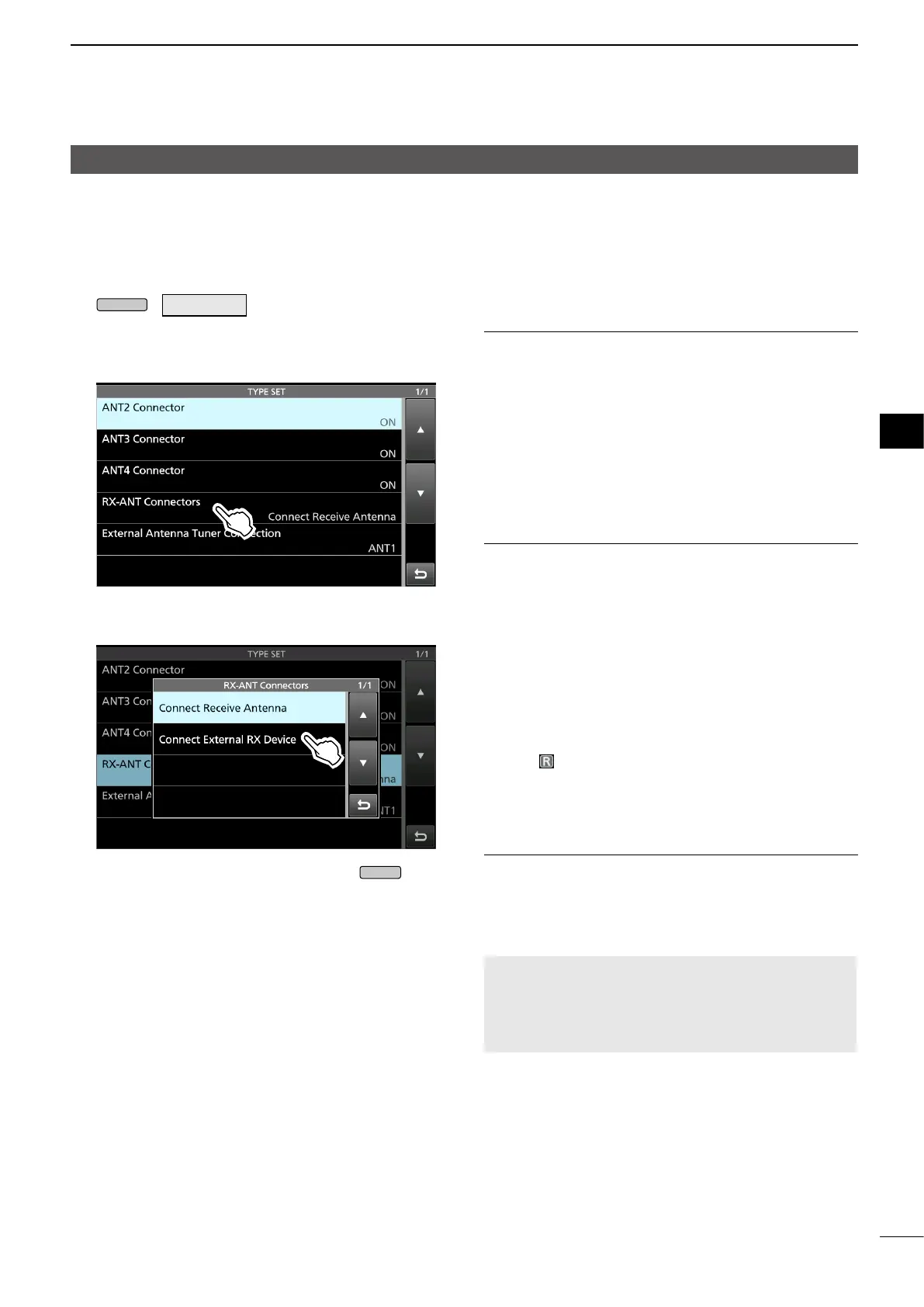

1. Open the ANTENNA screen.
MENU
»
ANTENNA
2. Touch [ T YPE].
• The TYPE SET screen is displayed.
3. Touch “RX-ANT Connectors.”
4. Select an option.
(Example: Connect External RX Device)
5. To close the TYPE SET screen, push
EXIT
several times.
D Setting the antenna type
On this screen, you can set the type of antenna to
use.
ANT2 Connector (Default: ON)
ANT3 Connector (Default: ON)
ANT4 Connector (Default: ON)
Selects whether or not to enable use of the antenna
connector.
• OFF: You cannot select the antenna connector.
• ON: You can select the antenna connector.
L An external antenna tuner or antenna does not activate
if you connect it to the antenna connector that is set to
“OFF.”
L You cannot set the ANT1 connector to OFF.
RX-ANT Connectors
(Default: Connect Receive Antenna)
Selects a device connected to [RX-ANT IN] and
[RX-ANT OUT].
• Connect Receive Antenna:
Select this option to connect a receive
antenna to [RX-ANT IN].
“R” is displayed next to the antenna number
when [RX-ANT] is touched.
• Connect External RX Device:
Select this option to connect an external
receive device, such as a lter or preamplier
to [RX-ANT OUT] and [RX-ANT IN].
is displayed next to the antenna number
when [RX-I/O] is touched.
External Antenna Tuner Connection
(Default: ANT1)
Selects an antenna connecter to which the AH-730
optional antenna tuner is connected. The maximum
output power from the selected connector is limited to
100 W.
• Set to ANT1, ANT2, ANT3, or ANT4.
NOTE: If you connect the AH-730 to another
connector, the maximum 200 W power is input to the
tuner, and could damage the tuner.
L Conrm the setting again after performing a Partial reset
or an All reset.
