2-4
BASIC MANUAL
INSTALLATION AND CONNECTIONS
2
2
TRV
TRV
[SEND]
*
RX
ANT
TX TX
RX
[RF IN/OUT]

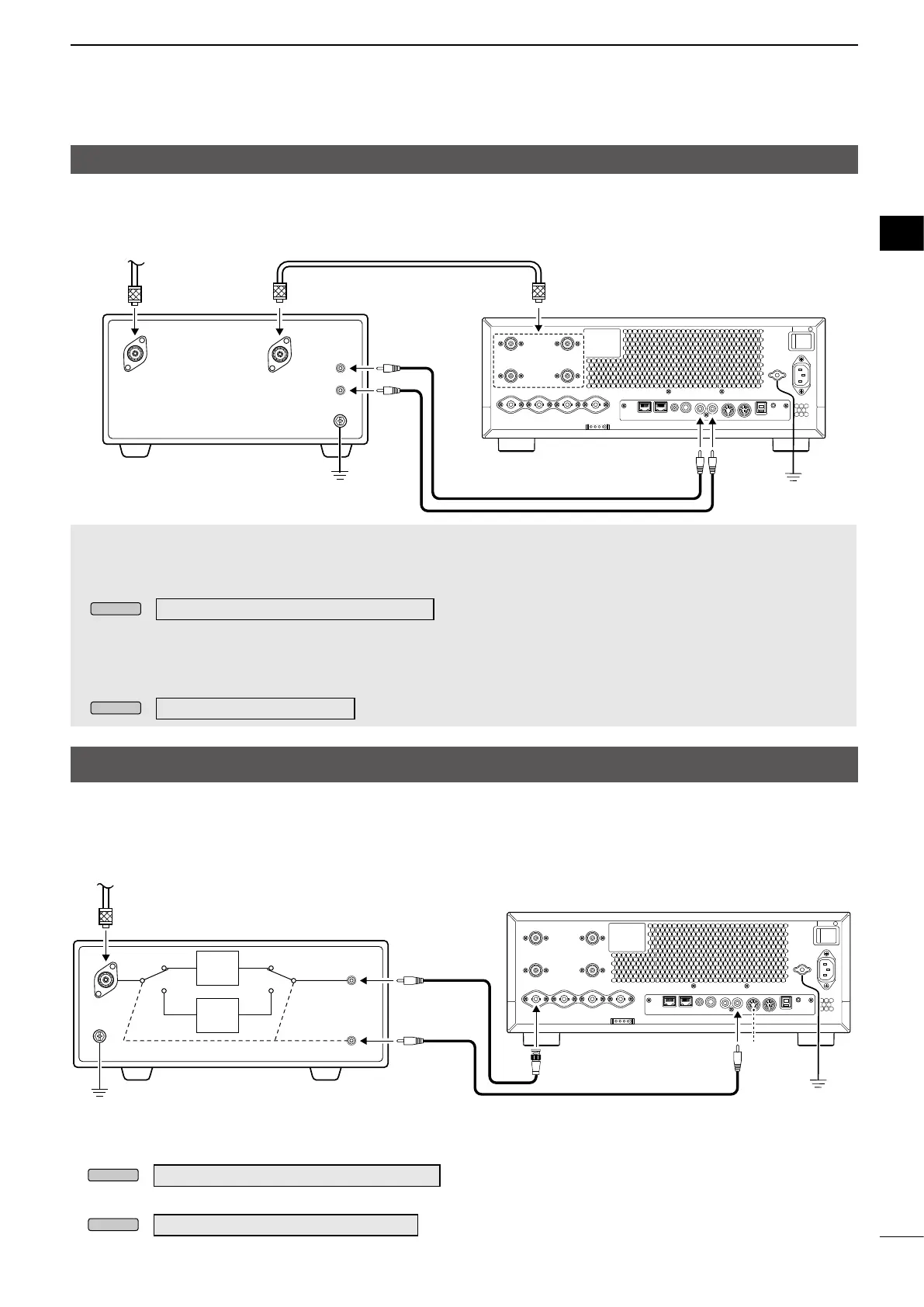

Connecting a Transverter
When you use a non-Icom transverter unit, connect it as described below.
L Conrm that the transceiver and transverter are OFF before connecting them.
L You may need to connect to [ALC], depending on the transverter.
• To use the transverter operating mode, set “Transverter Function” to “ON.”
* You can also use the transverter operating mode by connecting a DC voltage to [ACC 2 (6: TRV)].
MENU
»
SET > Function > Transverter Function
• Set the oset frequency for the transverter operation.
MENU
»
SET > Function > Transverter Oset
To VHF band antenna
Transverter
RF deck
Coaxial cable
(50 Ω)
Connecting a linear amplier
D Connecting a non-Icom linear amplier
See the illustration below to connect a non-Icom linear amplier.
R WARNING!
• The maximum signal level of the [SEND] jack is 16 V/0.5 A DC with the “Reed” setting, and 250 V/200 mA with the
“MOSFET” setting. Use an external unit if your non-Icom linear amplier requires a control voltage and/or current greater
than specied.
MENU
»
SET > Connectors > SEND Relay Type
• The ALC input level must be in the range 0 to –4 V. The transceiver does not accept a positive voltage. Non-matched ALC
and RF power settings could overheat or damage the linear amplier.
• When using a linear amplier that has a time delay between receiving and transmitting, a high SWR might cause the linear
amplier to malfunction. To prevent this, set “TX Delay.”
MENU
»
SET > Function > TX Delay
Coaxial cable (50 Ω)
[ANT 1] ~ [ANT 4]
RF deck
Non-Icom linear amplier
GND
GND
RF OUT RF IN
ALC
SEND
To antenna
[ALC] [SEND]
[X-VERTER] [SEND]
GND
GND
