MANUAL - BIGPAR-16RGBW4A/-4UV/-4WWCW
4
©Copyright LOTRONIC 2022
• The product is for decorative purposes only and not suitable as a household room illumination.
• If the external exible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manu-
facturer or his service agent or a similar qualied person in order to avoid a hazard.
• The light source of this luminaire is not replaceable. When it reaches the end of its life time, the whole unit
must be discarded.
DISCONNECT DEVICE
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable.
FUSE REPLACEMENT
Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located in-
side the power socket. Insert a at-head screw driver into the power socket and gently pry out the fuse holder.
Remove the bad fuse and replace with a new one.
Warning: If after replacing the fuse you continue to blow fuses, STOP using the unit. Contact customer support
for further instructions. Continuing to use the unit may cause serious damage.
INSTALLATION
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is rmly xed to
avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the
unit is secure and able to support a weight of 10 times of the unit’s weight.

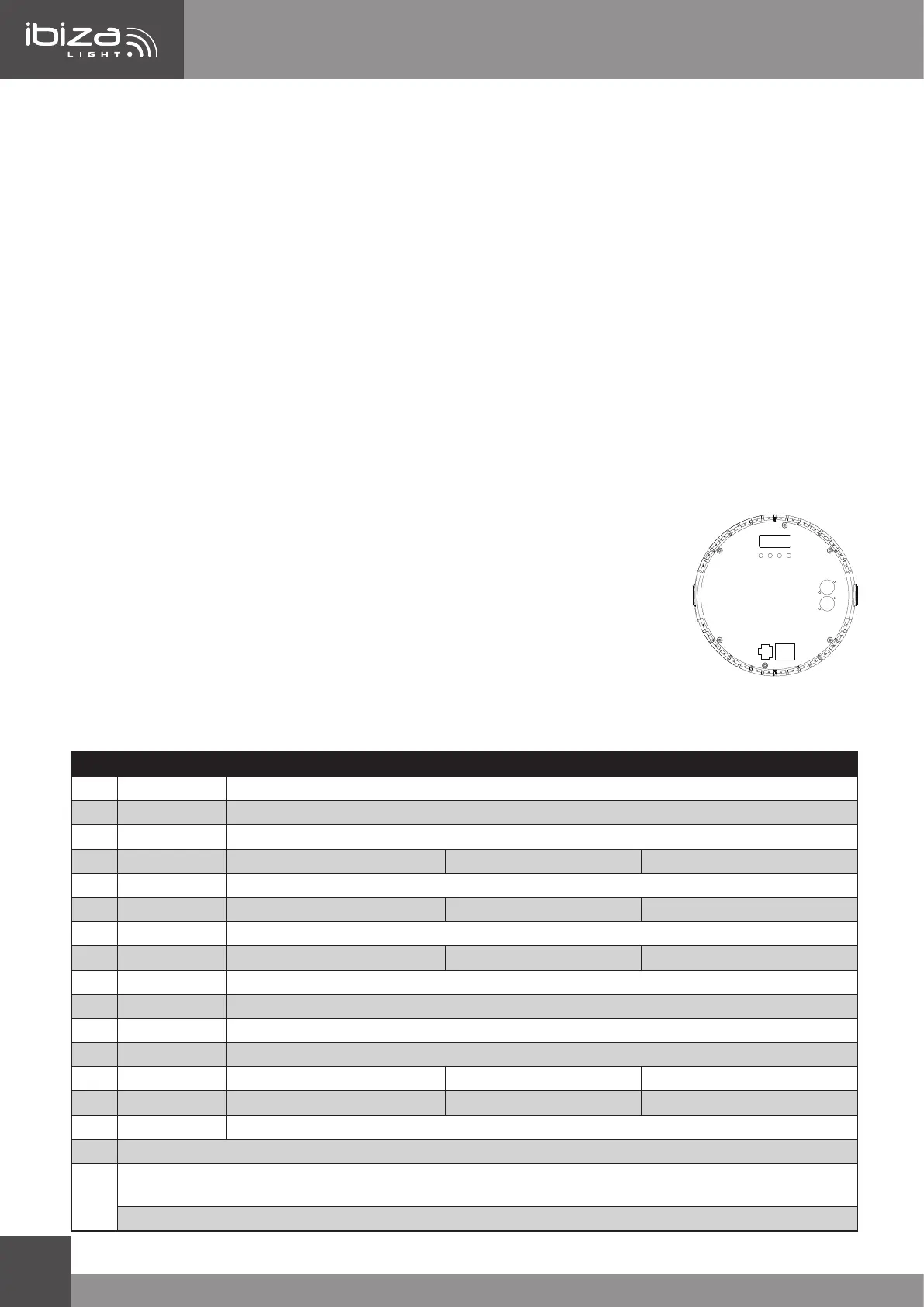

LED DISPLAY
MENU: Press to nd an operation mode or to leave the current menu option.
UP: Press to scroll upwards through the list of options or set a higher value.
DOWN: Press to scroll downwards through the list of options or to set a lower value
ENTER: Press to activate a menu option or a selected value
DMX IN: Connect a 3-pin XLR connector from the DMX controller to this input
DMX OUT: Connect a 3-pin XLR connector from this output to the DMX input of another
DMX controlled unit
POWER IN: Connect the supplied mains lead to this input and the other end to an ap-
propriate wall outlet
POWER OUT: Connect a IEC power lead from this output to the POWER INPUT of the following BIGPAR. You can
connect up to 10 BIGPAR maximum.
MENU STRUCTURE
No. Display BIGPAR-16RGBW4A BIGPAR-16RGBW4UV BIGPAR-16RGBW4WWCW
1 A001-512: 12 ch DMX mode
2 Au01-15: Fixed color selection
3 UF01-99: RGBW Color jump
4 FF01-99: Amber Color jump UV Color jump WW/CW Color jump
5 UC01-99: RGBW Color gradient
6 FC01-99: Amber Color gradient UV Color gradient WW/CW Color gradient
7 UE01-99: RGBW Color pulse variable
8 FE01-99: Amber Color pulse variable UV Color pulse variable WW/CW Color pulse variable
9 R000-255: Red Manual dimming
10 G000-255: Green Manual dimming
11 B000-255: Blue Manual dimming
12 P000-255: White dimming
13 A000-255: Amber dimming UV dimming WW/CW dimming
14 A000-255: Amber dimming UV dimming WW/CW dimming
15 F000-255: Stroboscopic mode 1-20Hz
16 Automatic mode: colour jump/gradient/pulse change
17
BLOF /bLON: "BLOF" means during silence, the light stays on. "bLON" means that during silence, the
light will go o
VOL1~VOL9 1-9 sensitivity adjustment
MENU
UP
DOWN
ENTER
DMX512
INPUT
DMX512
OUTPUT
POWER OUT
POWER IN
