Assembly
www.hyundaipowerproducts.co.uk
18
Assembly Overview
There are 3 steps to the assembly:
STEP 1. Attaching The Wheels To The Support Legs
STEP 2. Attaching The Collection Box To The Main Unit
STEP 3. Attaching The Hopper To The Main Unit
STEP 1: Attaching The Wheels To The Support Legs

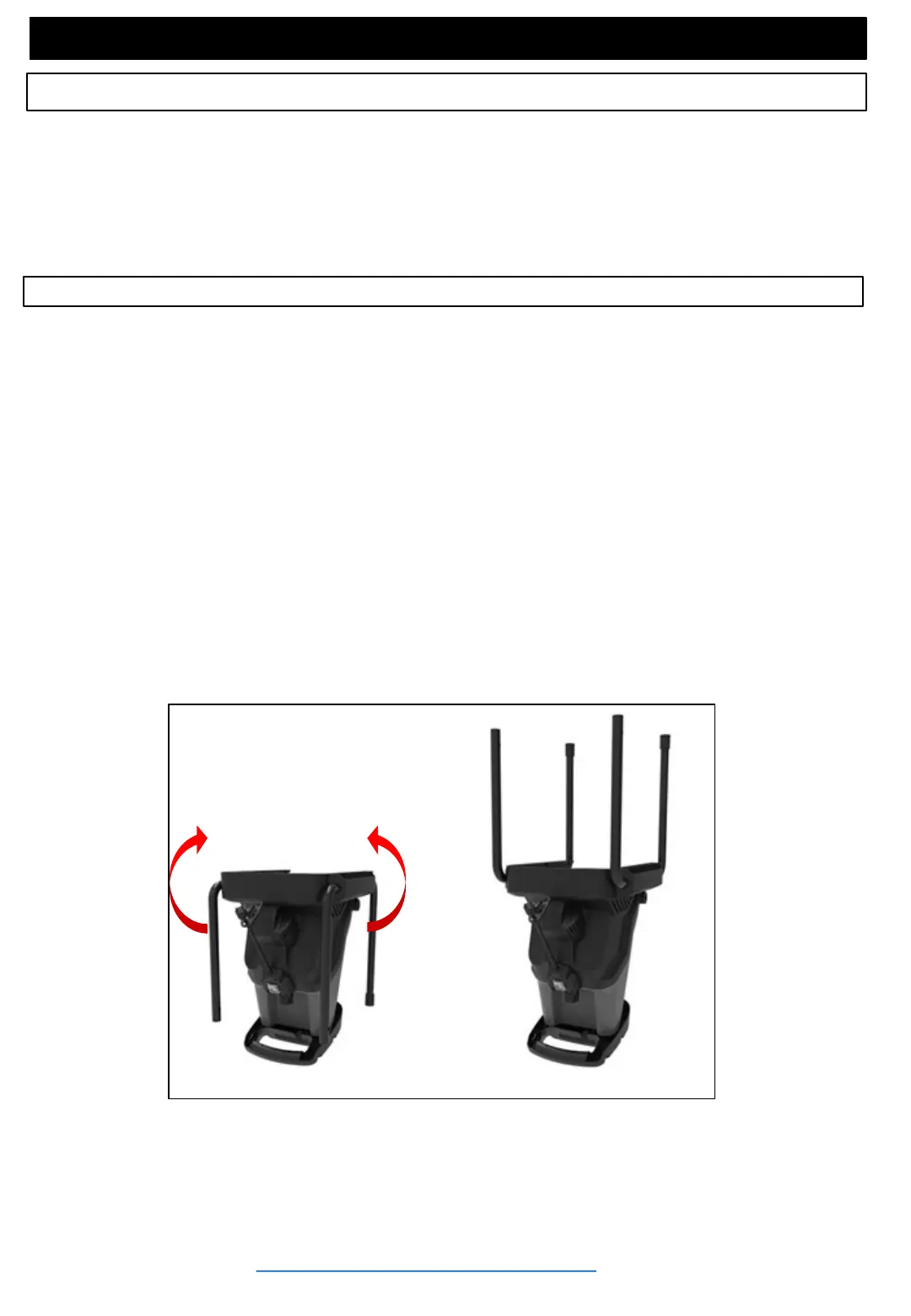

1. Turn the main unit upside down and rotate the two support legs in the
orientation as displayed in the diagram below.
NOTE: This section requires the Axle (A), 2 x φ6.5 washers (B), 4 x φ10 washers (C), 2
x Head Hex Screws (D), 2 x wheels (E), 2 x wheel covers (F), 2 x bushings (H) and the
hex key. These are supplied in the box contents with the machine.
NOTE: This section also requires the use of a Phillips screwdriver to lock the axle into
place when attaching the wheels. The Phillips screwdriver is also supplied with the
product.
NOTE: When unboxing this product and its components, the 2 x head hex screws
and 4 x washers and 2 x bushings will be attached to the axle. Use the hex key to
remove them from the axle before assembling the wheels.
