Living 6
Exsis I/T - 01/23-1 - EHG-0027-02EN 67
6.2.1 Flap lock, elliptical
During rain, water can penetrate the opened flap lock. Therefore close
the lock handle.

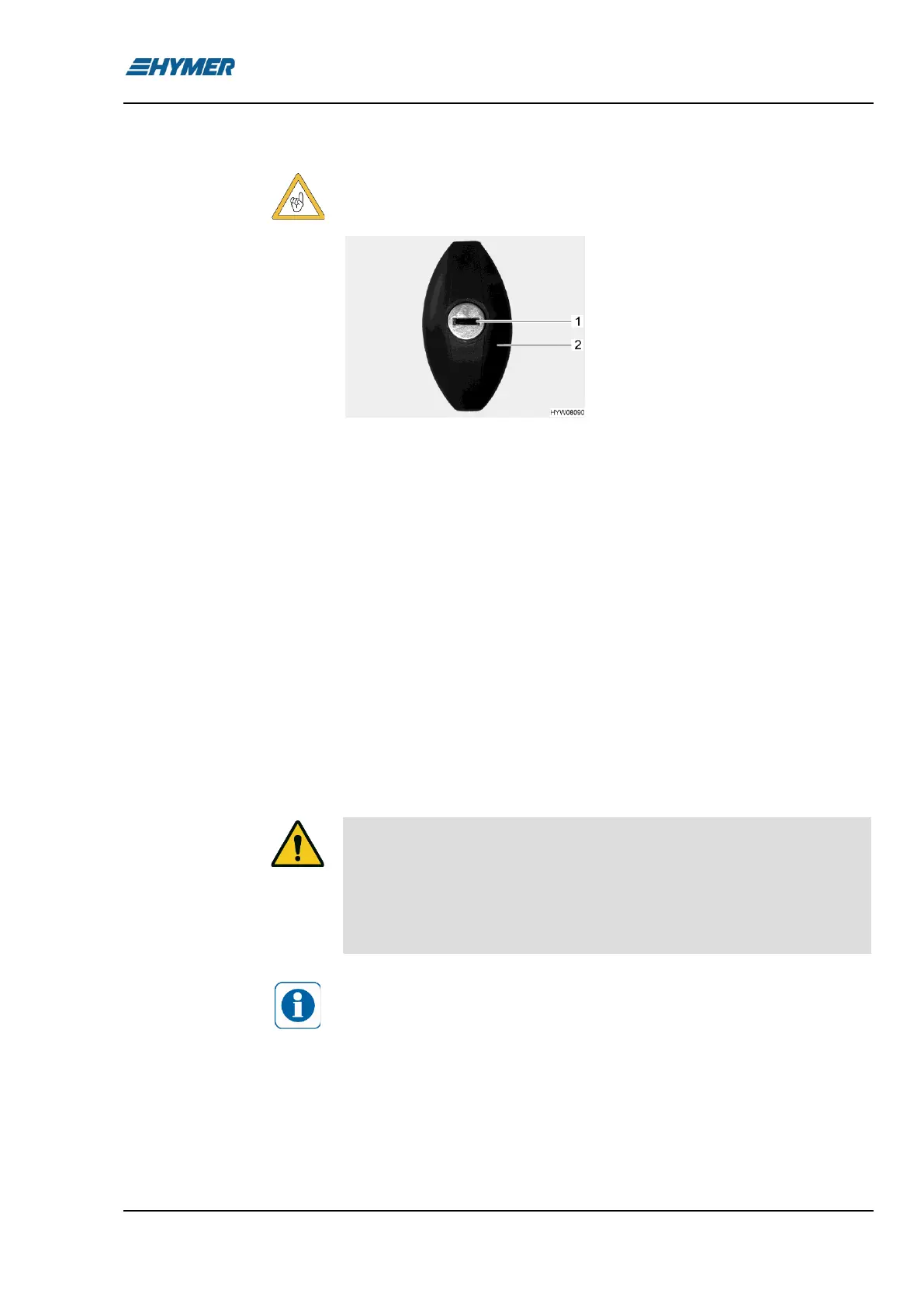

Fig. 42 Flap lock
◼ Insert key into locking cylinder (Fig. 42,1) and turn one half turn in an
anticlockwise direction. The lock handle (Fig. 42,2) snaps out.
◼ Remove the key.
◼ Turn lock handle one half turn in an anticlockwise direction. The flap
lock is open.
◼ Firmly close the external flap.
◼ Give the lock handle one half turn in a clockwise direction. The flap lock
is now engaged but not locked.
◼ Insert key into locking cylinder.
◼ Press down lock handle with key inserted and turn key one half turn in a
clockwise direction. The lock handle will stay bolted.
◼ Remove the key.
6.3 Ventilation
The oxygen in the vehicle interior is used up by breathing and the use
of gas operated appliances. Therefore, the used air must be replaced
permanently. For this purpose, forced ventilation options (e.g. sky-
lights with forced ventilation) are fitted to the vehicle. Never cover or
block forced ventilations from the inside or outside with objects such
as e.g. a winter mat. Keep forced ventilations clear of snow and
leaves. There is a danger of suffocation due to increased CO
2
levels.
Although sufficient ventilation is provided, in certain weather conditions,
condensation can form on metal objects (e.g. screwed connections in
the floor)
Additional cold spots can occur at thermal "bridges" (e.g. skylight edges,
sockets, filler necks, flaps, etc.).
Opening:
Closing:
