Pitching the Motorcaravan 5
Exsis I/T - 01/23-1 - EHG-0027-02EN 61

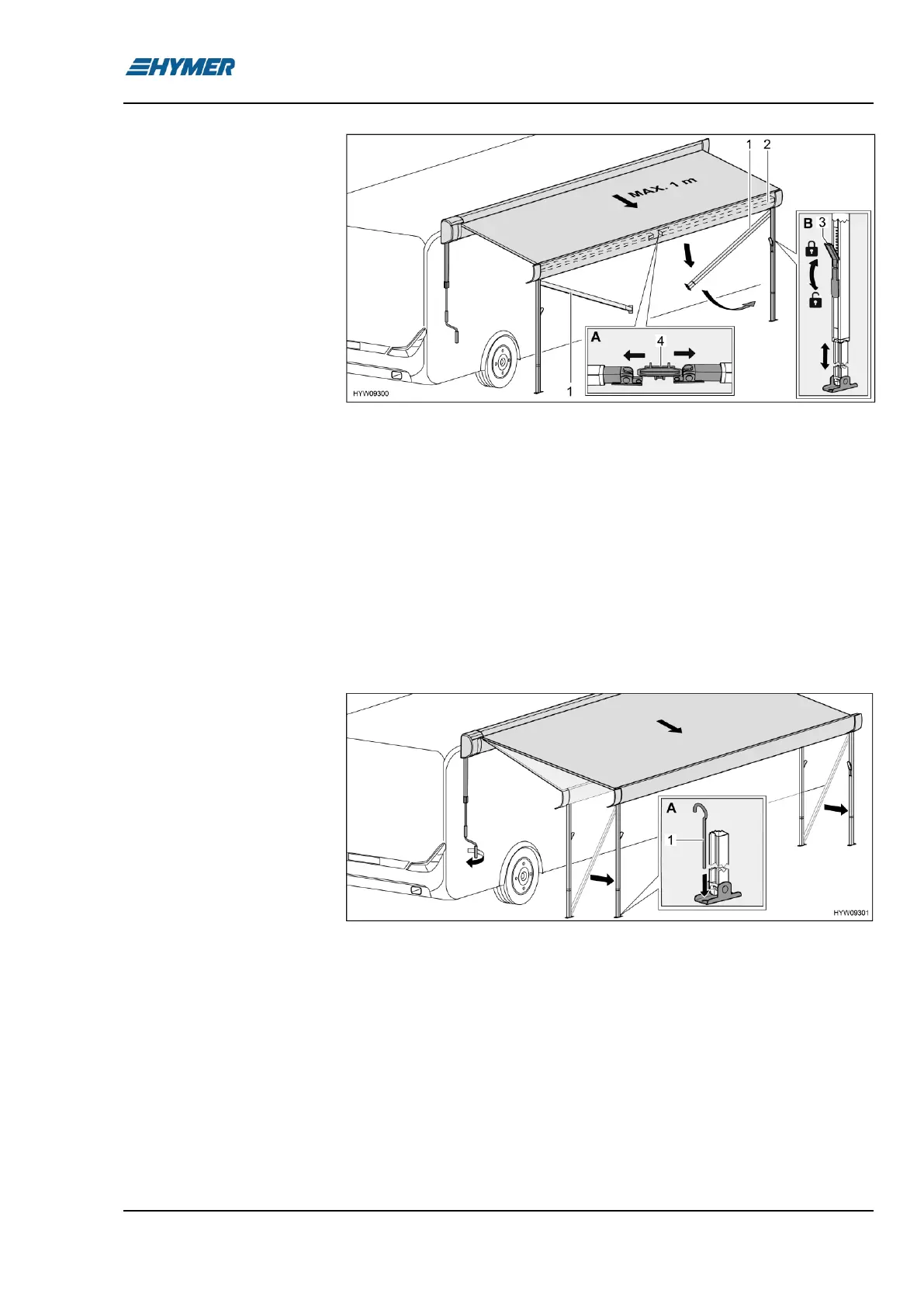

Fig. 33 Preparing support legs
◼ Release support legs (Fig. 33,1) from holder (Fig. 33,4) in the front bar
(Fig. 33,2). In order to do this, apply slight outward pressure on the sup-
port legs (Fig. 33,A).
◼ Fold out the support legs.
◼ Release the locks (Fig. 33,3) of the support legs. In order to do this, fold
the catch lever downwards.
◼ Pull lower part of the support legs out to the desired length (Fig. 33,B).
◼ Position the support legs.
◼ Close the locks (Fig. 33,3) of the support legs. In order to do this, fold
the catch lever upwards.
Fig. 34 Bringing awning into end position
◼ Use the crank to completely extend the awning. While doing so, reposi-
tion the support legs several times.
◼ Set the support legs to their final height.
◼ Pull crank out and store it in the rear garage.
◼ Fix the support legs to the floor with tent pegs (Fig. 34,1) (Fig. 34,A).
