Pitching the Motorcaravan 5
Exsis I/T - 01/23-1 - EHG-0027-02EN 59
Always apply the handbrake before extending the steady legs.
Depending on the model, the hexagonal nut has a joint, which can be
used to bring the attached socket spanner into a more convenient posi-
tion for turning.
In order to ensure their correct function, clean and grease the interior tubes
of the steady legs regularly.
The length of the steady legs can be adjusted according to the model.

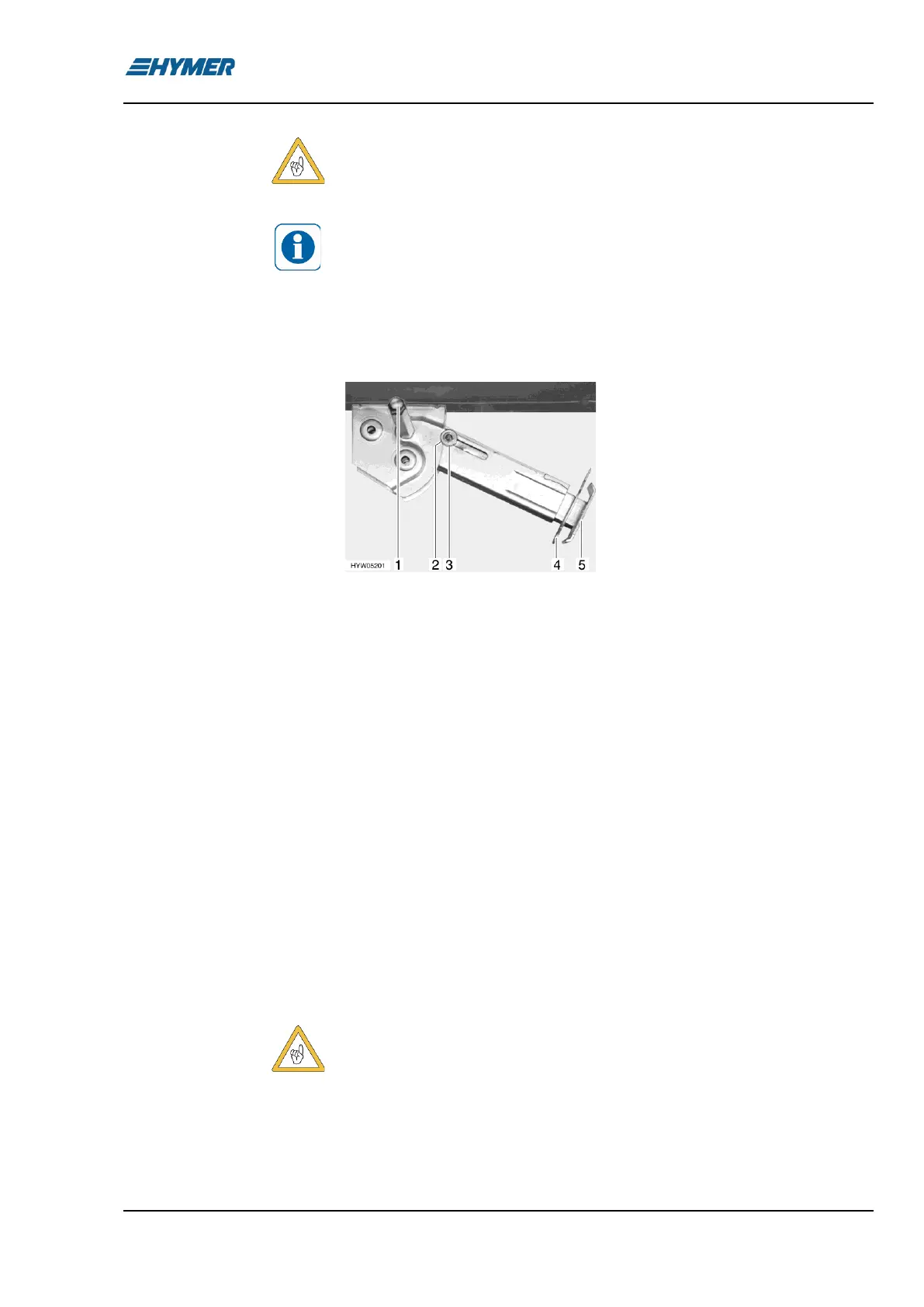

Fig. 31 Steady leg
◼ Place the socket spanner on the hexagon nut (Fig. 31,1) and rotate until
the steady leg is in a perpendicular downward position.
◼ Remove the splint (Fig. 31,4) out of the support foot extension
(Fig. 31,5).
◼ Extend the support foot extension until it has reached the required
length.
◼ Insert the splint in the support foot extension.
◼ Rotate the hexagonal nut until the steady leg rests completely on the
ground and the vehicle is in a horizontal position.
◼ Place the socket spanner on the hexagon nut (Fig. 31,1) and rotate until
the steady leg is clear of the ground.
◼ Remove the splint (Fig. 31,4) out of the support foot extension
(Fig. 31,5).
◼ Push in the support foot extension (Fig. 31,5) and insert the splint
(Fig. 31,4) in the drilled hole in the support foot extension.
◼ Rotate the hexagonal nut (Fig. 31,1) with the socket spanner until the
steady leg has swung upwards and the guide disc (Fig. 31,3) has com-
pletely retracted into the notch (Fig. 31,2).
Before commencing the journey, observe the following: Are all steady
legs and support foot extensions retracted completely and secured with
the splint?
Extending:
Retracting:
