Living 6

B-MC I/T - 01/23-1 - EHG-0016-03EN 95

6.10.2 Table with extendable table top

 If the driver's seat is pushed all the way back, the table and driver's seat

may collide. Therefore, enlarge, shift or rotate the table top carefully

when the driver's seat is in the rearmost latching position.

The table top can be moved in both a lengthways and a crossways direction,

and can also be rotated.

An integrated centre section can be used to enlarge the table top.

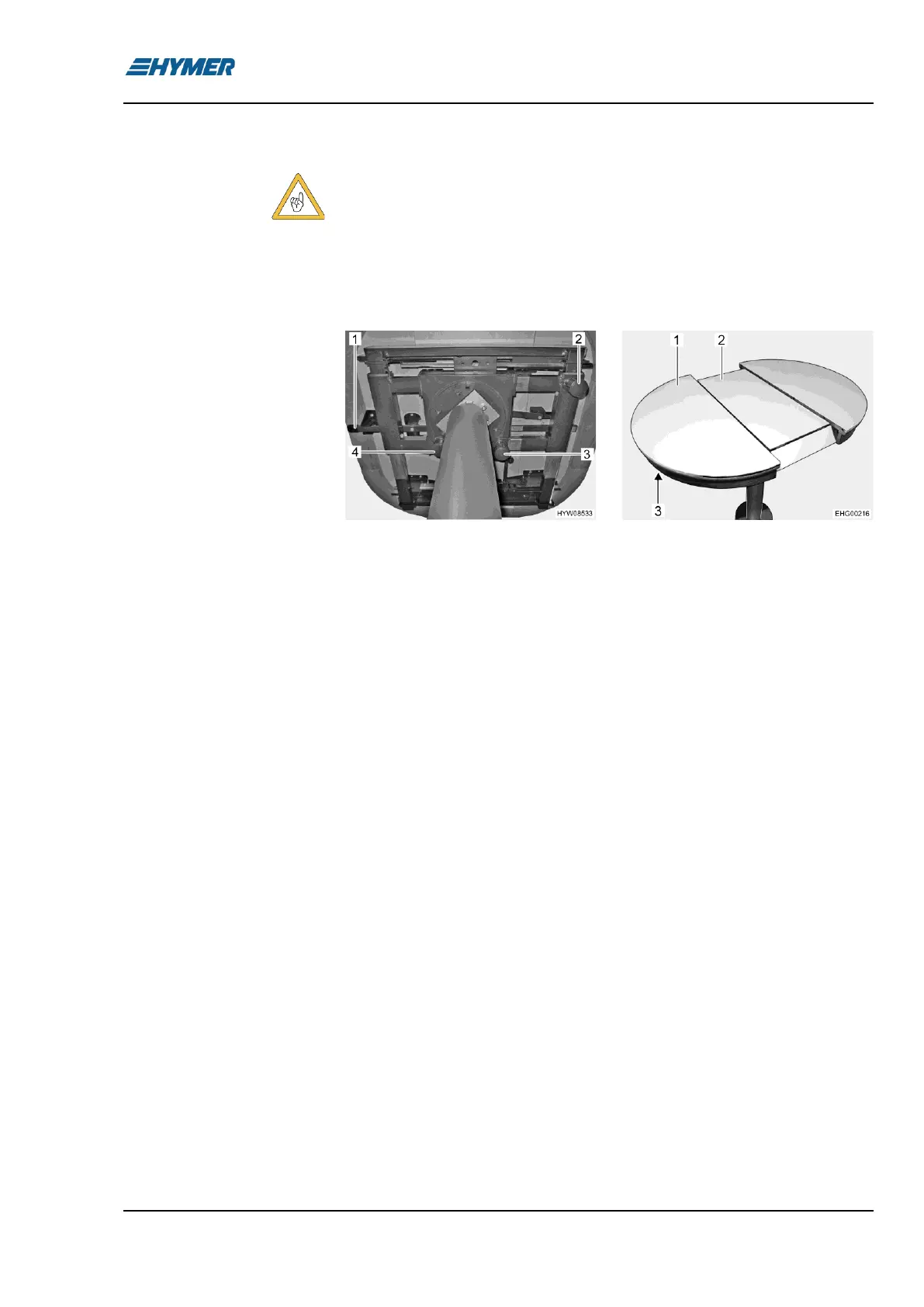

Fig. 88 Adjustment possibilities on the

table

Fig. 89 Expanding the table top

◼ Pull down the knob (Fig. 88,3) and hold it.

◼ Move the table top to the desired position.

◼ Release knob.

◼ Pull down the knob (Fig. 88,2) and hold it.

◼ Move the table top to the desired position.

◼ Release knob.

◼ Pull down the knob (Fig. 88,4) on the lock.

◼ Rotate table top to the desired position.

◼ Rotate the table top to and fro slightly until the lock engages.

◼ Press the release (Fig. 88,1 and Fig. 89,3) upwards.

◼ Pull on the table top (Fig. 89,1) until the centre section (Fig. 89,2) comes

up and is at the same height as the table top.

◼ Push the table top together from both sides until the table top surface is

closed.

◼ Press the release (Fig. 89,3) upwards.

◼ Pull on the table top (Fig. 89,1) until the centre section (Fig. 89,2) is

freed.

◼ Push the table top together slowly from both sides. The centre section

lowers automatically.

◼ Push the table top together further from both sides until the table top

surface is closed.

Moving in a lengthways

direction:

Moving in a crossways

direction:

Rotating:

Enlarging the table top:

Reducing the table top size:
