Living 6
B-MC I/T - 01/23-1 - EHG-0016-03EN 93
1 Multimedia compartment with
two USB ports and
two 230 V sockets
2 Drawer
3 Cushion
4 Pull-out with storage compartment
and top inlay
5 Lock
6 Cable passage for multimedia de-
vices

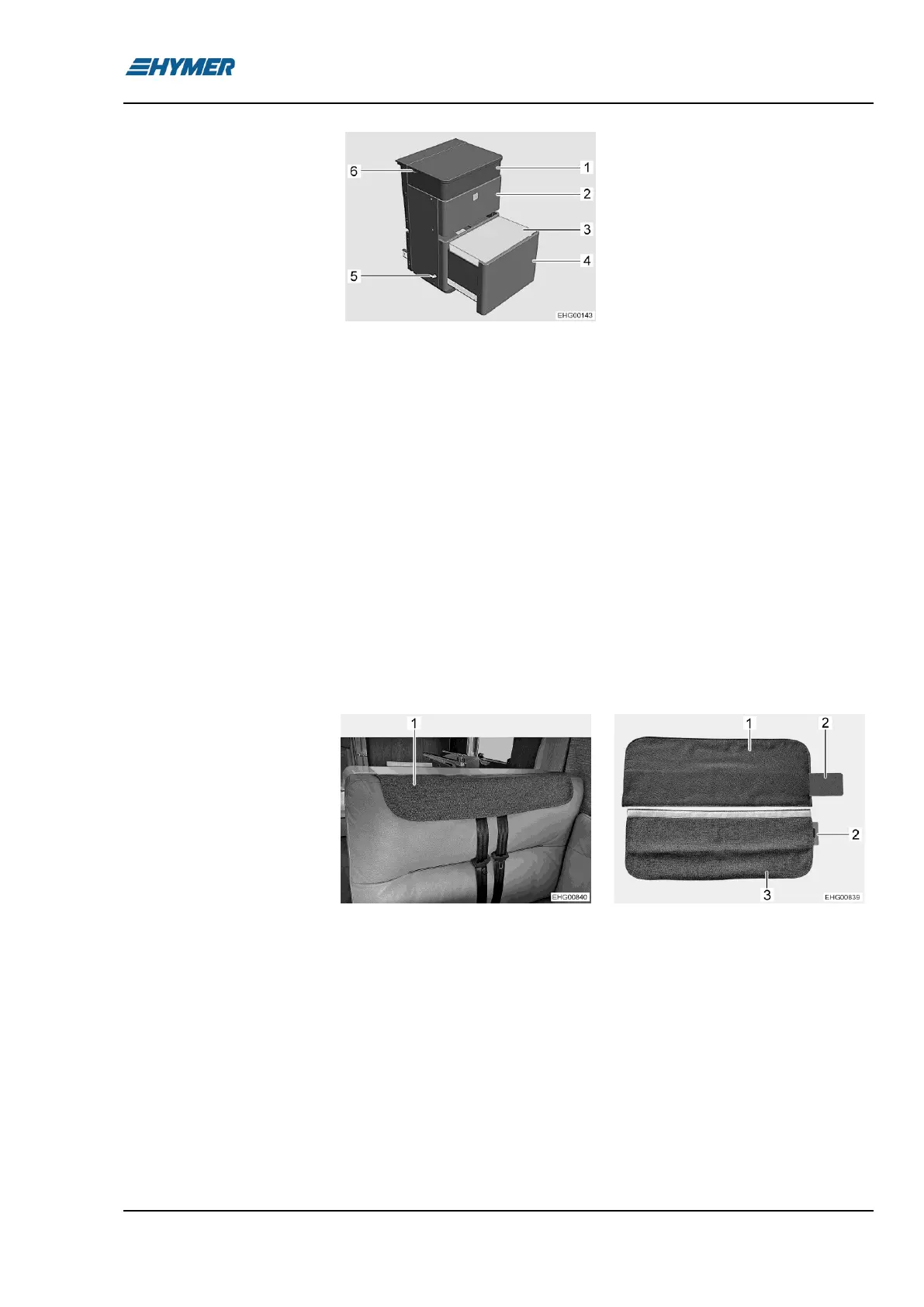

Fig. 84 Multifunctional sideboard
With the cushion (Fig. 84,3), the pull-out (Fig. 84,4) can be used as additio-
nal seat or as footrest.
When the pull-out has been pulled out: Secure pull-out with lock (Fig. 84,5).
The pull-out (Fig. 84,4) can be used as access assistance for the pull-down
bed. In doing so, do not exceed the maximum permitted load of 80 kg.
When the pull-out has been pulled out: Secure pull-out with lock (Fig. 84,5).
6.9 Seat belt cover
When the vehicle has been positioned, the headrests can be removed from
the back cushion of the bench to allow for more comfortable seating. The
openings for the headrests and the cut-out for the seat belts can then be
covered with a seat belt cover (Fig. 85,1).
The seat belt cover can be made of leather (Fig. 86,1) or fabric (Fig. 86,3).
Fig. 85 Seat belt cover attached
Fig. 86 Seat belt cover
1 Seat belt cover
1 Seat belt cover (leather version)
2 Metal reinforcement plate
3 Seat belt cover (fabric version)
◼ Remove both headrests.
◼ Slide the metal reinforcement plate (Fig. 86,2) completely into the po-
cket of the seat belt cover (Fig. 86,1 or Fig. 86,3).
◼ Attach the seat belt cover over the cut-out for the seat belts (Fig. 85).
Use as additional seat /
footrest
Use as access assistance
Attaching the seat belt
cover:
