Gas system 7
B-MC I/T - 01/23-1 - EHG-0016-03EN 123
1 Yellow indicator lamp, defroster
2 Winter operation position
3 OFF position
4 Summer operation position
5 Red indicator lamp, primary bottle
empty
6 Green indicator lamp, supply from
primary bottle
7 Rocker switch

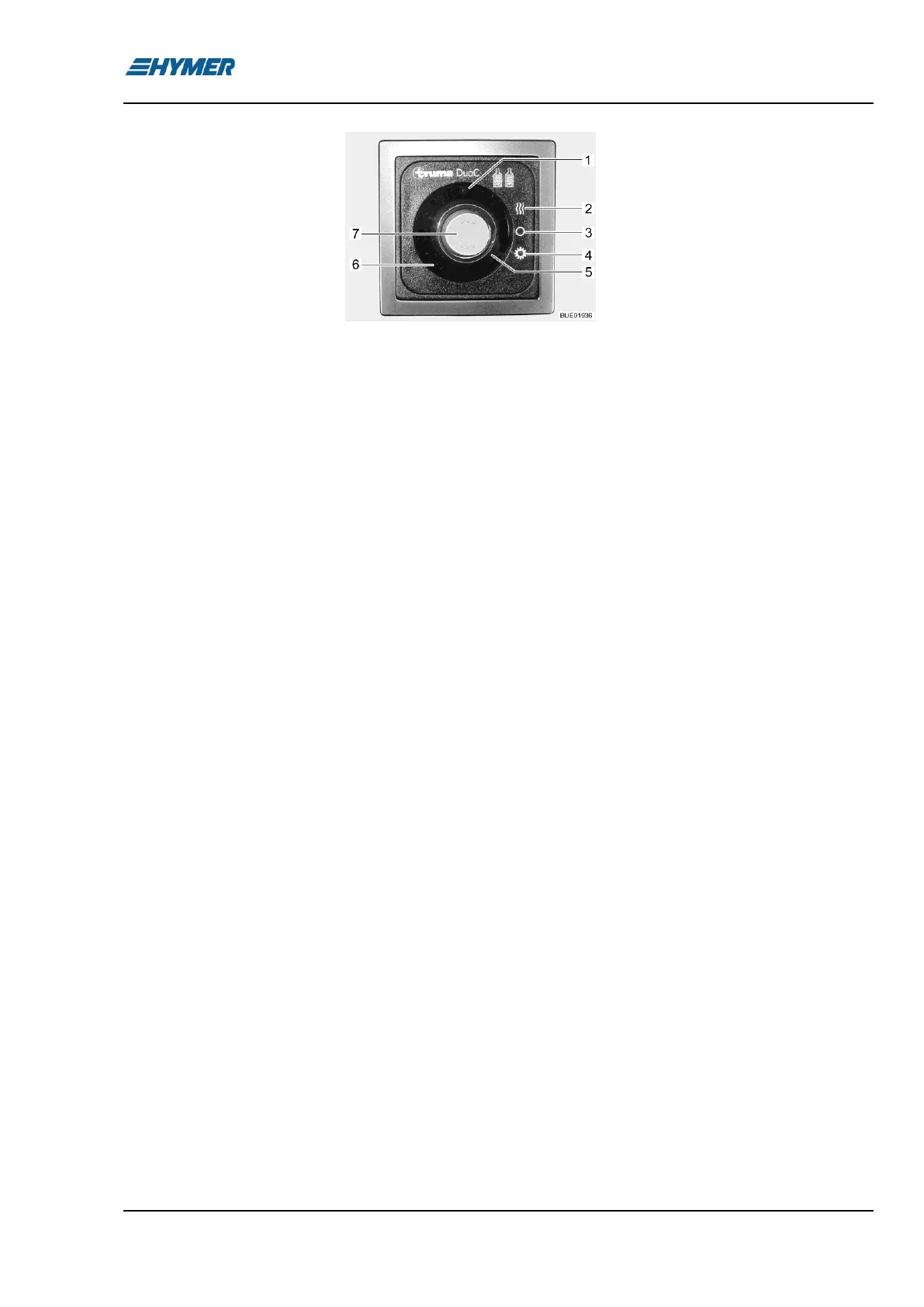

Fig. 134 Operating unit (DuoControl)
The operating unit shows the status of the primary bottle. When the green
indicator lamp (Fig. 134,6) illuminates, the primary bottle is full. When the
red indicator lamp (Fig. 134,5) illuminates, the primary bottle is empty. In this
case, the reserve bottle is used for the gas supply.
If the heater of the DuoControl regulating system (defroster) is active, the
yellow defroster indicator lamp (Fig. 134,1) is lit.
In addition, the operating unit (Fig. 134) is also used to set summer opera-
tion or winter operation.
◼ Press lower part of the rocker switch (Fig. 134,7) (summer operation po-
sition (Fig. 134,4)).
◼ Press upper part of the rocker switch (Fig. 134,7) (winter operation posi-
tion (Fig. 134,2)).
◼ Connect the gas bottles.
◼ Use the knob (Fig. 133,6) on the reversing valve to select the gas bottle
which is to be the primary source of gas (primary bottle). Always turn the
knob as far as it will go.
◼ Open regulator taps (Fig. 133,1) on the gas bottles.
◼ Press and hold the green button of the hose break guard (Fig. 133,2) for
about 5 seconds. The green marking is shown in the inspection window
(Fig. 133,5).
◼ If the crash sensor has triggered (the yellow reset button (Fig. 133,8) is
protruding):
Press the yellow reset button (Fig. 133,8) in forcefully, turn it slightly in a
clockwise direction and hold it for about 5 seconds. Make sure that the
reset button remains in the pressed-in position ("ready for operation").
If it is not possible, reset the system as described: Use the Torx insert
T20 on the included screwing aid to strengthen the rotary movement.
◼ Set the rocker switch (Fig. 134,7) to the OFF position (Fig. 134,3). The
indicator lamps go out.
◼ Close regulator taps (Fig. 133,1) on the gas bottles.
Operating unit
Setting summer operation:
Setting winter operation:
Putting into operation:
Switching off:
