Dismantling and Assembling
the Hook Assembly
Turn off the power switch or unplug the
machine.

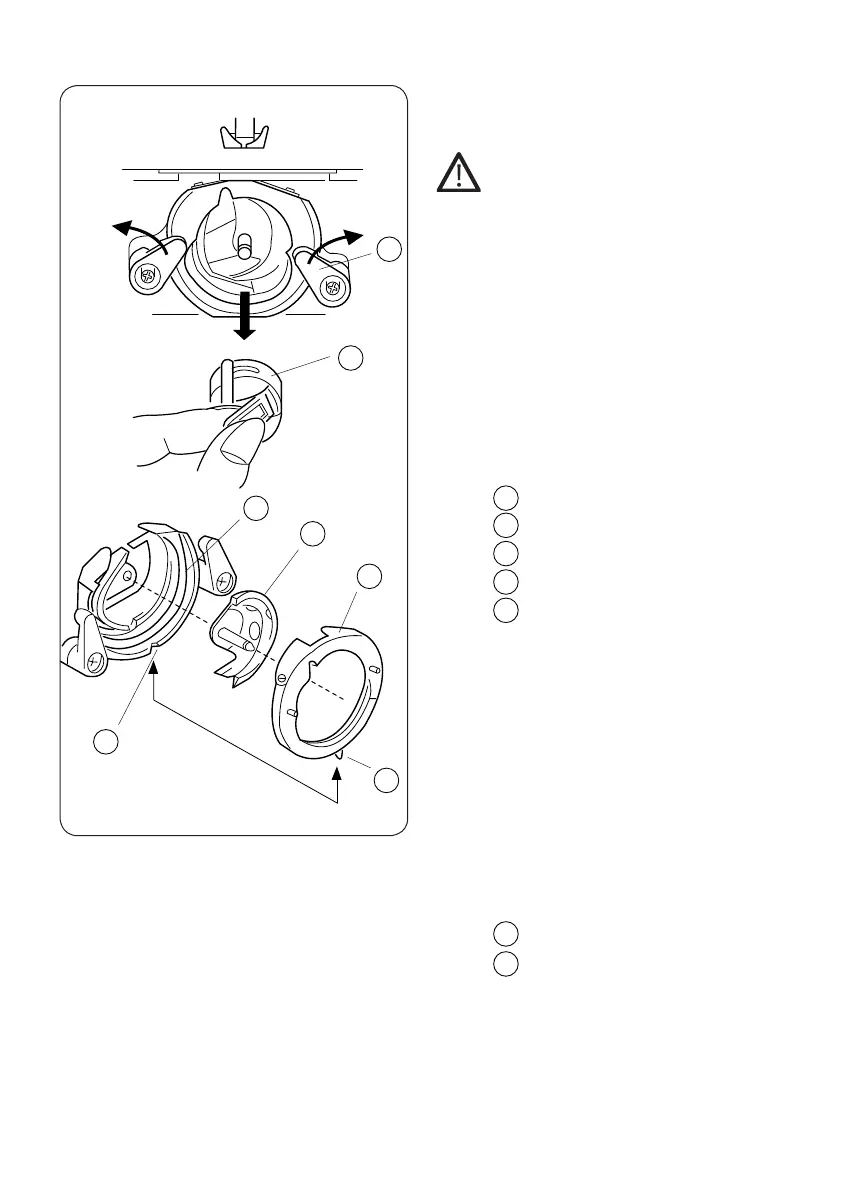

To dismantle the hook assembly:
Raise the needle to its highest position and
open the hook cover.
Open the hinged latch of the bobbin case
and take it out of the machine.
Open the hook assembly ring holders and
remove the hook assembly ring.
Remove the hook.
NOTE: Clean the hook assembly with a brush and a
soft dry cloth.
Bobbin case
Hook assembly ring holder
Hook assembly ring
Hook
Hook assembly
To assemble the hook:
Hold the hook by the center pin and fi t it
carefully back into the hook assembly, form-
ing a perfect circle with the shuttle driver.
Attach the hook assembly ring, making sure
the bottom pin fi ts into the notch.
Lock the hook assembly ring by turning the
holders back into position. Insert the bobbin
case.
Pin
Notch
SECTION 6 CARE OF YOUR MACHINE
