Ceiling Bracket Hanging FanDownrod Wiring Blades Switch Housing Remote
Installing the Cap
NOTE: Check to ensure
proper engagement.
Attach the cap by lifting and
turning clockwise one third of a
full turn of the cap until it stops.
Lift the cap and align the notches
in the cap with the tabs in the
upper switch housing.
Notch
Tab
Fan style may vary.
Note:

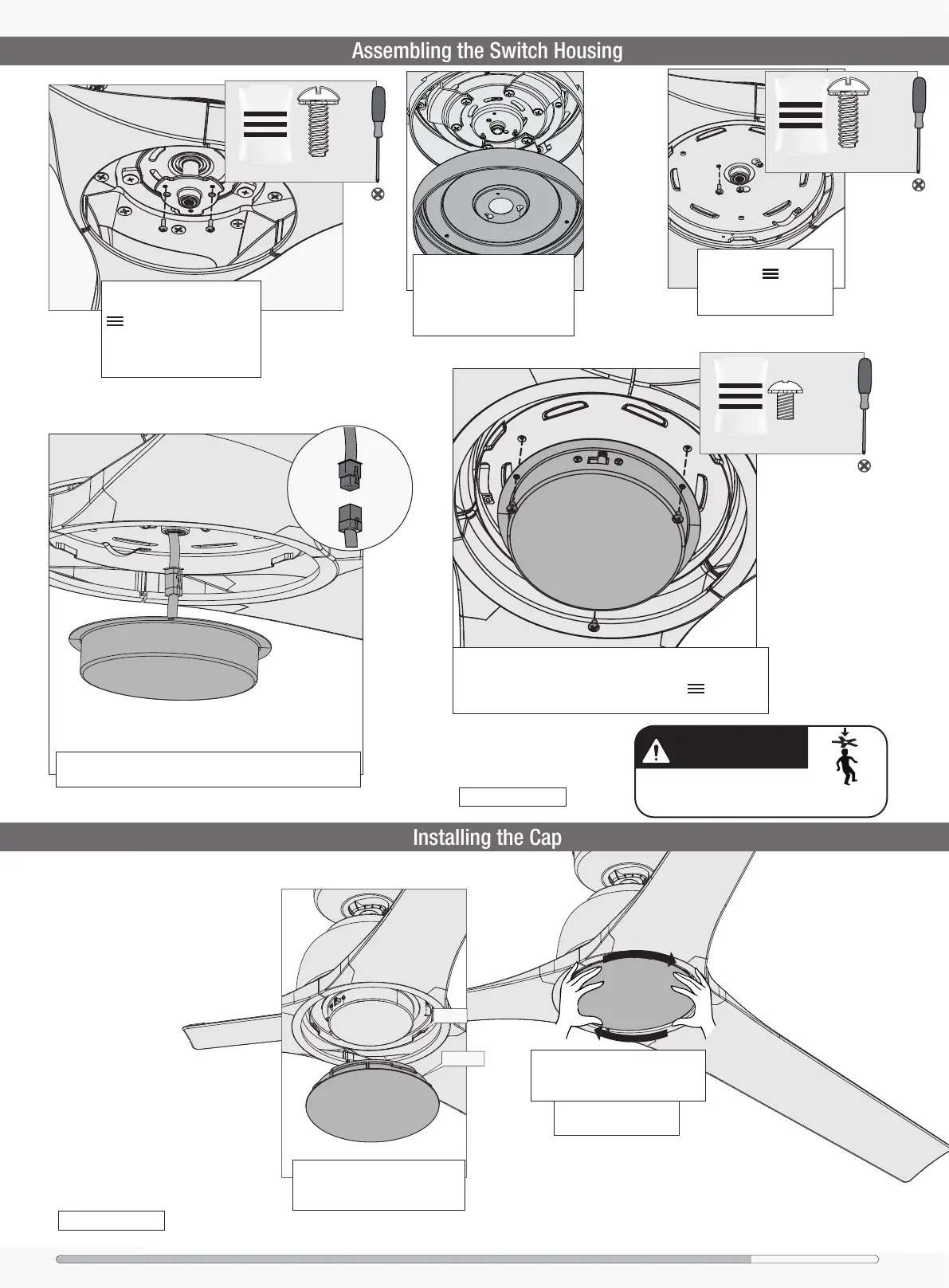

Assembling the Switch Housing
Insert the third screw,
found in the hardware
bag, into place and then
tighten all three screws.
Partially install two switch
housing screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
Feed the wire plug through the
center hole of the upper switch
housing, then wrap keyhole
slots around the screws and
twist counterclockwise.
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
2 of 3
Switch
Housing
Screw
bag
bag
Fan style may vary.
Note:
Connect the plugs from the upper and lower switch housings.
Make sure to line up the colored markings on the connectors.
Lift the lower switch housing until its screw holes are aligned
with the screw holes in the upper switch housing. Install the
three short switch housing screws, found in the hardware
bag. Tighten all three screws.
3 of 3
bag
1 of 3
Switch
Housing
Screw
Short Switch
Housing
Screw
