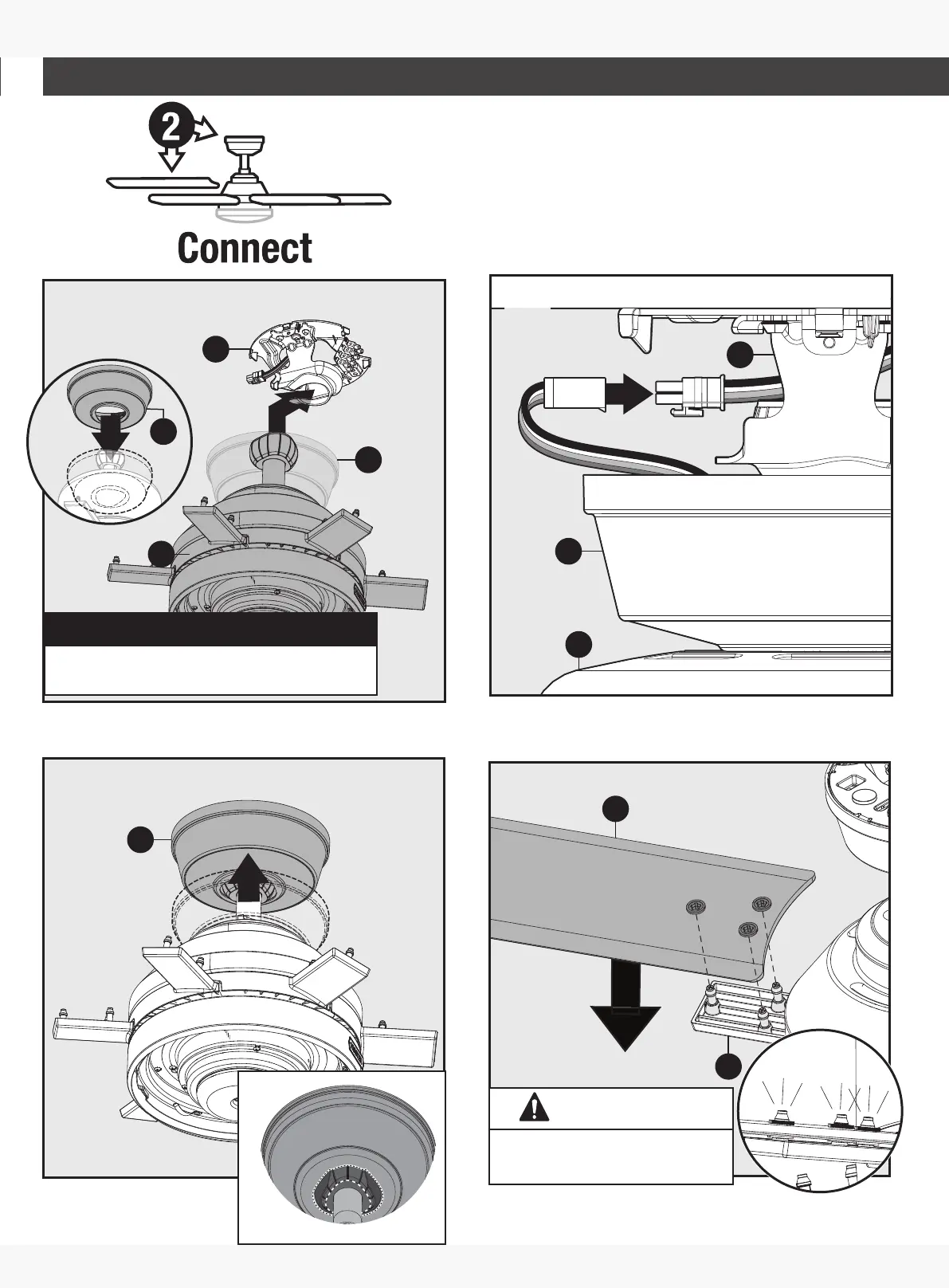

Installation – Canopy Mount and Terminal Wiring (continued)
Installation – Fan Body, Wiring Harness, Canopy Cover, and Blades
Connect wiring harness from canopy mount (A) to wiring harness
from fan body (C).
2b
A
C
B
Install snap-on canopy (B) over downrod on fan body (C). Place the down
rod ball into the slot in canopy mount (A) with built-in ceiling bracket.
2a
1
2
A
B
C
B
NOTICE
To prevent damage to fan, ALWAYS lift holding either the
fan housing or the downrod.
Slide the snap-on canopy (B)
over the canopy mount (A) until
it clicks in place.
2c
B
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
Install a snap-on blade to pop locks on pre-installed blade iron (C).
Repeat for remaining blades (D).
2d
1
C
D
2
x6
IMPORTANT
Note: Follow the instructions on the blade.
Installing it incorrectly could result in your
fan not functioning.
