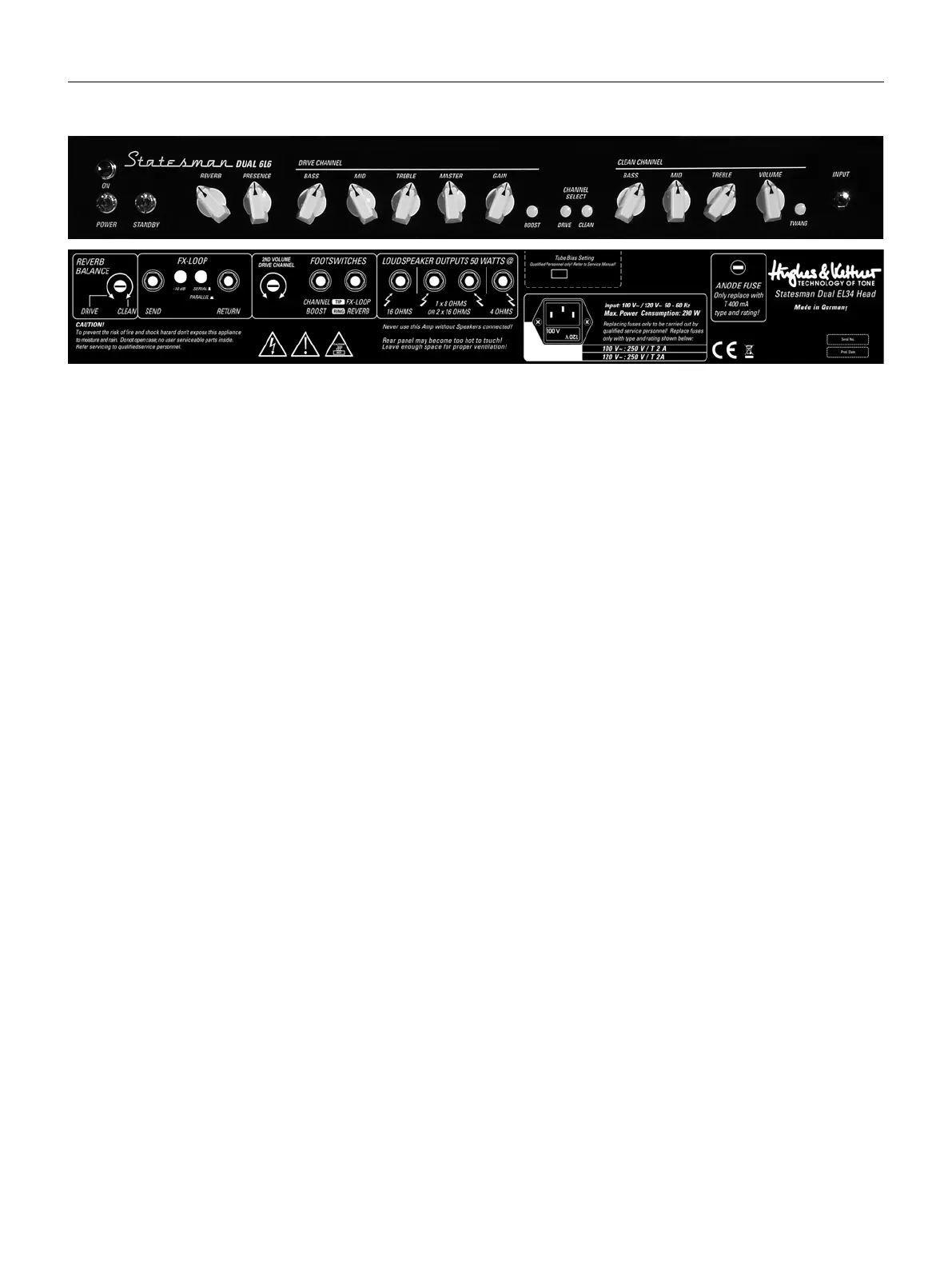

1. Connections & Operating Elements

Front side

(from right to left)

INPUT

Input for guitar.

CLEAN CHANNEL

TWANG:

Switches the clean channel from classic British tonal

character to the attack-rich vintage Californian clean sound.

VOLUME: Regulates the volume and saturation of the CLEAN

channel. Saturated crunch sounds can be generated with higher

volume settings (depending on the guitar’s output level).

Equalizer BASS, MID, TREBLE: MID and TREBLE have a reciprocal

inﬂ uence on each other: A high-frequency accentuation causes a mid-

range reduction and vice versa.

CHANNEL SELECT: The illuminated pushbuttons serve for manually

switching between CLEAN (amber) and DRIVE (red) channels. This

switching function is executable via foot switch.

DRIVE CHANNEL

BOOST:

Boosts selected frequency ranges in the DRIVE channel. Even

more creamy sounds will be achieved this way. This switching function

is executable via foot switch.

GAIN: Regulates the degree of overdrive in the DRIVE channel.

Equalizer BASS, MID, TREBLE: MID and TREBLE have a reciprocal

inﬂ uence on each other: A high-frequency accentuation causes a mid-

range reduction and vice versa.

MASTER: Regulates the volume of the DRIVE channel.

PRESENCE

This knob determines the overtone content for all channels.

REVERB

Regulates the overall intensity of the integrated Accutronics

spring

reverb. The spring reverb is also capable of being activated via foot

switch.

STANDBY

This switch controls the high voltage power supply to the tubes. When

engaged, anode voltage is applied to the tubes‘ ﬁ laments only so that

the tubes remain warm and ready to rock. When taking a short break

from playing, please use STANDBY rather than ON/OFF so the tubes

remain at operating temperature.

MAINS ON/OFF

This button switches the main power supply on and tubes the

opportunity to warm up for the work ahead.

Back side (from left to right)

REVERB BALANCE

Regulates the ratio of reverberation between the CLEAN and DRIVE

channels.

2ND VOLUME

This feature was integrated in order to allow spontaneous volume

control which can be operated by foot. Especially for soloing, you can

quite elegantly “make yourself heard”. The 2ND VOLUME controller

regulates the difference in volume to the MASTER controller of the

DRIVE channel, i.e. it is dependant on its position and increases and/or

reduces the volume to the preset value. Turned to the left, the 2ND

VOLUME corresponds to half the volume of the MASTER, turned to the

right, you get one and a half times the volume. This function can only

be activated with the included footswitch FS -3N!

FX-LOOP

External effects can be looped-in via the effect path. In this connection,

SEND is linked with the input and RETURN is linked with the output

of the effect device. The FX-loop is also capable of being activated via

foot switch.

FX Level

This switch cuts the FX SEND’s output level by 10 dB and boosts the

FX RETURN’s input sensitivity by 10 dB to match the FX loop to the

effect device’s input level. Press this button when using processors

designed to handle instrument levels.
